2005 CAMRY (EWD586U)

Connector Joining Wire Harness and Wire Harness

Code

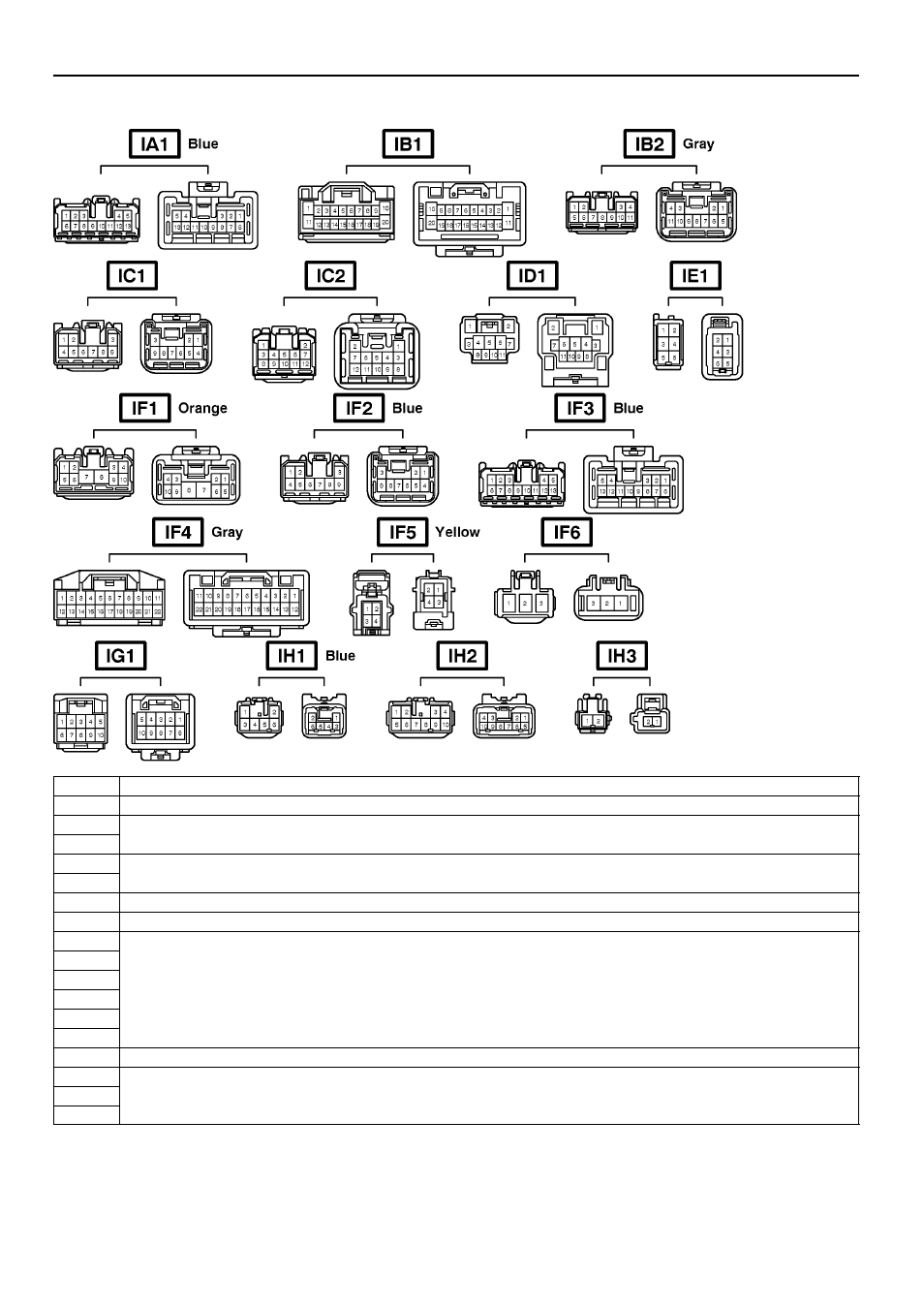

Joining Wire Harness and Wire Harness (Connector Location)

IA1

Front Door LH Wire and Floor Wire (Left Kick Panel)

IB1

Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)

IB2

Front Door LH Wire and Instrument Panel Wire (Left Kick Panel)

IC1

Instrument Panel Wire and Floor Wire (Left Kick Panel)

IC2

Instrument Panel Wire and Floor Wire (Left Kick Panel)

ID1

Engine Room Main Wire and Floor Wire (Left Side of Driver Side J/B)

IE1

Instrument Panel Wire and Roof Wire (Inside of Front Left Pillar)

IF1

IF2

IF3

Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)

IF4

Engine Room Main Wire and Instrument Panel Wire (Right Side of Steering Column Tube)

IF5

IF6

IG1

Instrument Panel Wire and Engine Room Main Wire (Instrument Panel Brace LH)

IH1

IH2

Instrument Panel Wire and Instrument Panel No.2 Wire (Instrument Panel Brace RH)

IH3

(

)
