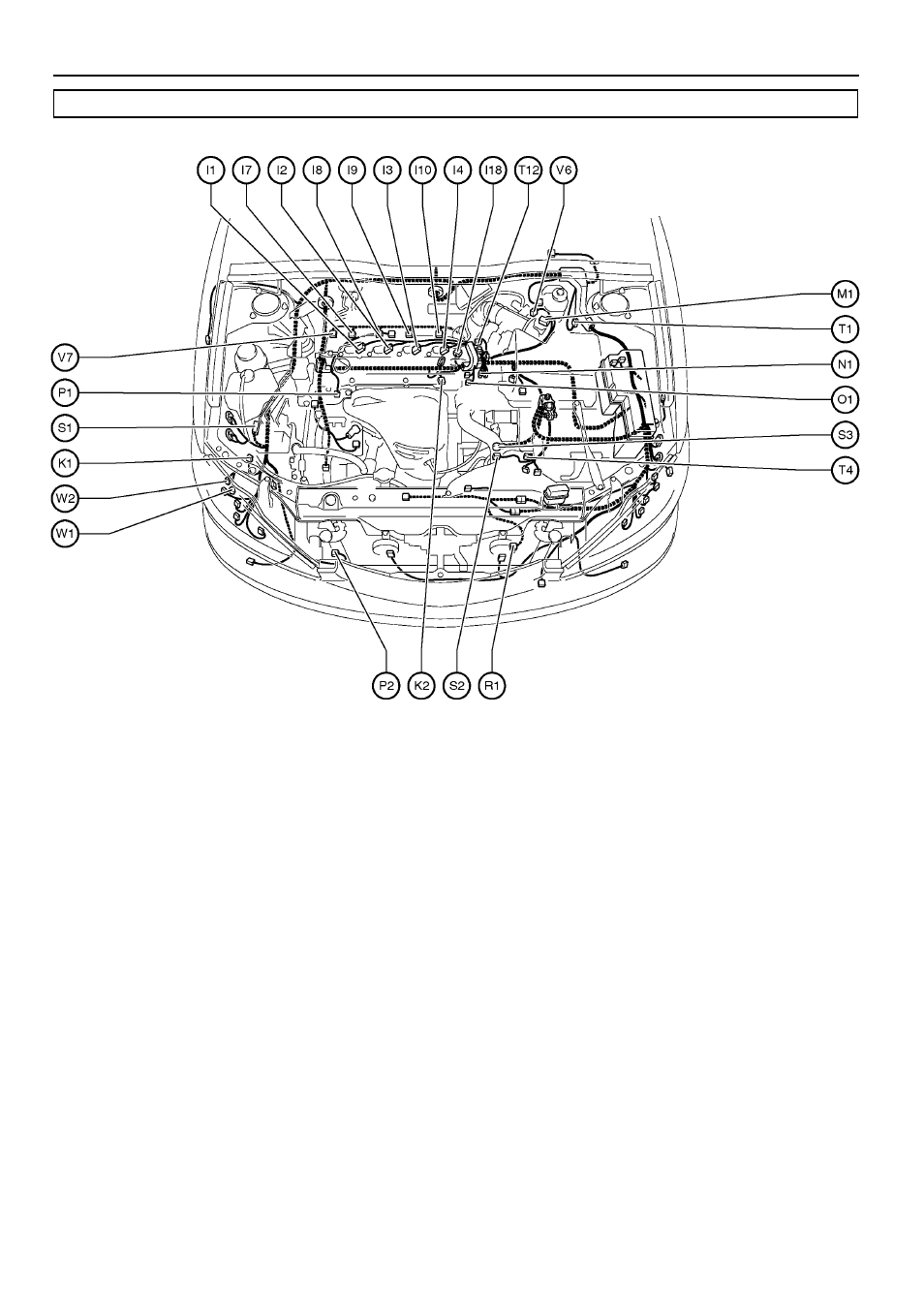

Position of Parts in Engine Compartment

[2AZ–FE]

I 1 Ignition Coil and Igniter No.1
I 2 Ignition Coil and Igniter No.2
I 3 Ignition Coil and Igniter No.3
I 4 Ignition Coil and Igniter No.4
I 7 Injector No.1
I 8 Injector No.2
I 9 Injector No.3
I 10 Injector No.4
I 18 Intake Air Control Valve

K 1 Keyless Buzzer
K 2 Knock Sensor (Bank 1)

M 1 Mass Air Flow Meter

N 1 Noise Filter (Ignition)

O 1 Oil Pressure SW

P 1 Power Steering Oil Pressure SW
P 2 Pressure SW

R 1 Radiator Fan Motor

S 1 Skid Control ECU with Actuator
S 2 Starter
S 3 Starter

T 1 Theft Deterrent Horn
T 4 Turbine Speed Sensor
T 12 Throttle Control Motor

Throttle Position Sensor

V 6 VSV (EVAP)
V 7 VVT Solenoid

W 1 Washer Level Sensor
W 2 Washer Motor
