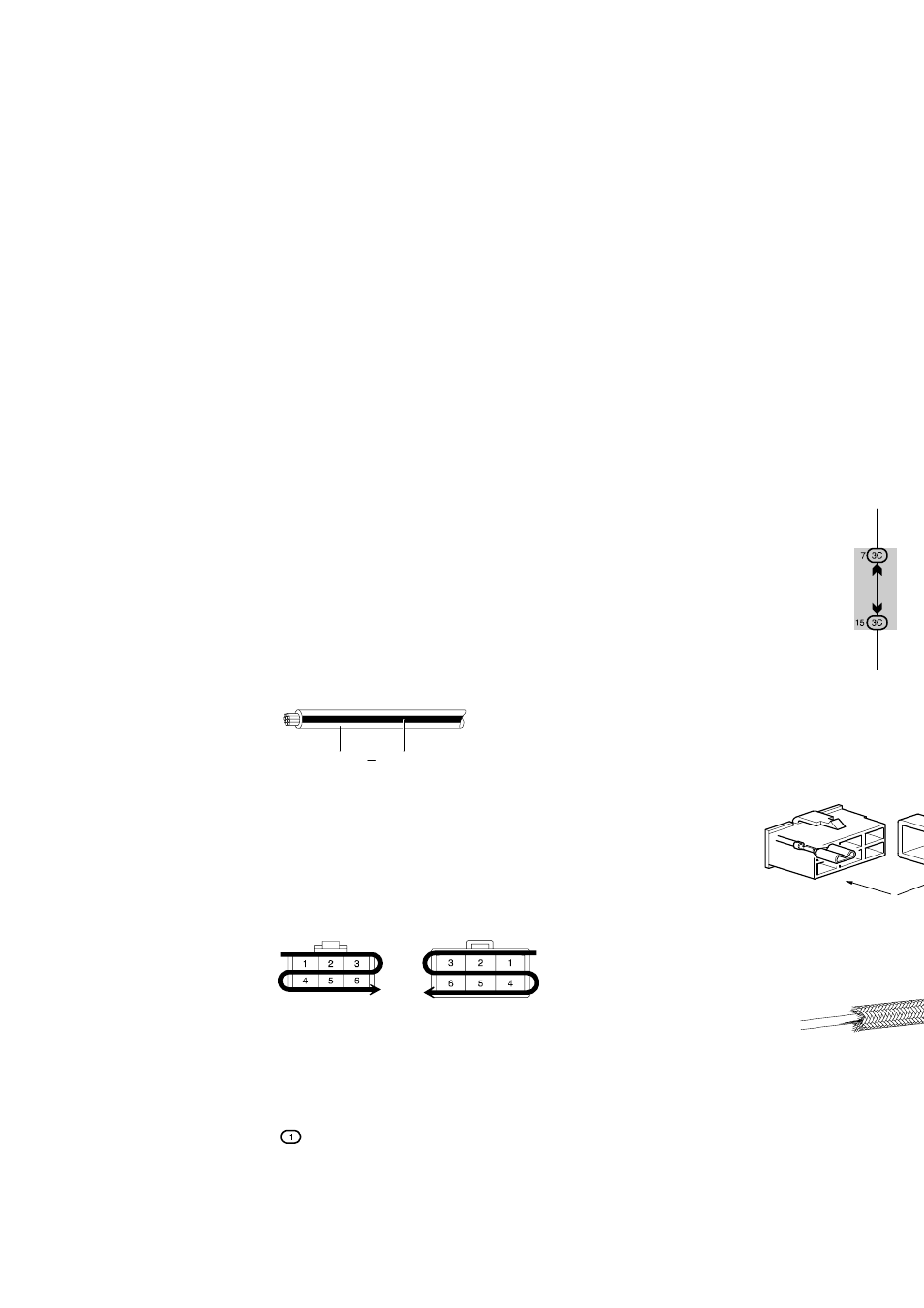

[A] : System Title

[B] : Indicates the wiring color.

Wire colors are indicated by an alphabetical code.

B

= Black

W = White

BR = Brown

L

= Blue

V

= Violet

SB = Sky Blue

R

= Red

G

= Green

LG = Light Green

P

= Pink

Y

= Yellow

GR = Gray

O

= Orange

The first letter indicates the basic wire color and the
second letter indicates the color of the stripe.

Example: L – Y

L

(Blue)

Y

(Yellow)

[C] : The position of the parts is the same as shown in

the wiring diagram and wire routing.

[D] : Indicates the pin number of the connector.

The numbering system is different for female
and male connectors.

Example : Numbered in order

from upper left to
lower right

Numbered in order
from upper right to
lower left

Female

Male

The numbering system for the overall wiring diagram is
the same as above

[E] : Indicates a Relay Block. No shading is used and

only the Relay Block No. is shown to distinguish
it from the J/B.

Example : Indicates Relay Block No.1

[F] : Junction Block (The number in the circle is the J/B No.

and the connector code is shown beside it).
Junction Blocks are shaded to clearly separate them
from other parts.

3C indicates that
it is inside
Junction Block
No.3

Example:

[G] : Indicates related system.

[H] : Indicates the wiring harness and wiring harness

connector. The wiring harness with male
terminal is shown with arrows ( ).
Outside numerals are pin numbers.

Female

Male ( )

[I]

: ( ) is used to indicate different wiring and

connector, etc. when the vehicle model, engine type,
or specification is different.

[J] : Indicates a shielded cable.

[K] : Indicates and located on ground point.

[L] : The same code occuring on the next page indicates

that the wire harness is continuous.
