2005 CAMRY (EWD586U)
36
G ELECTRICAL WIRING ROUTING

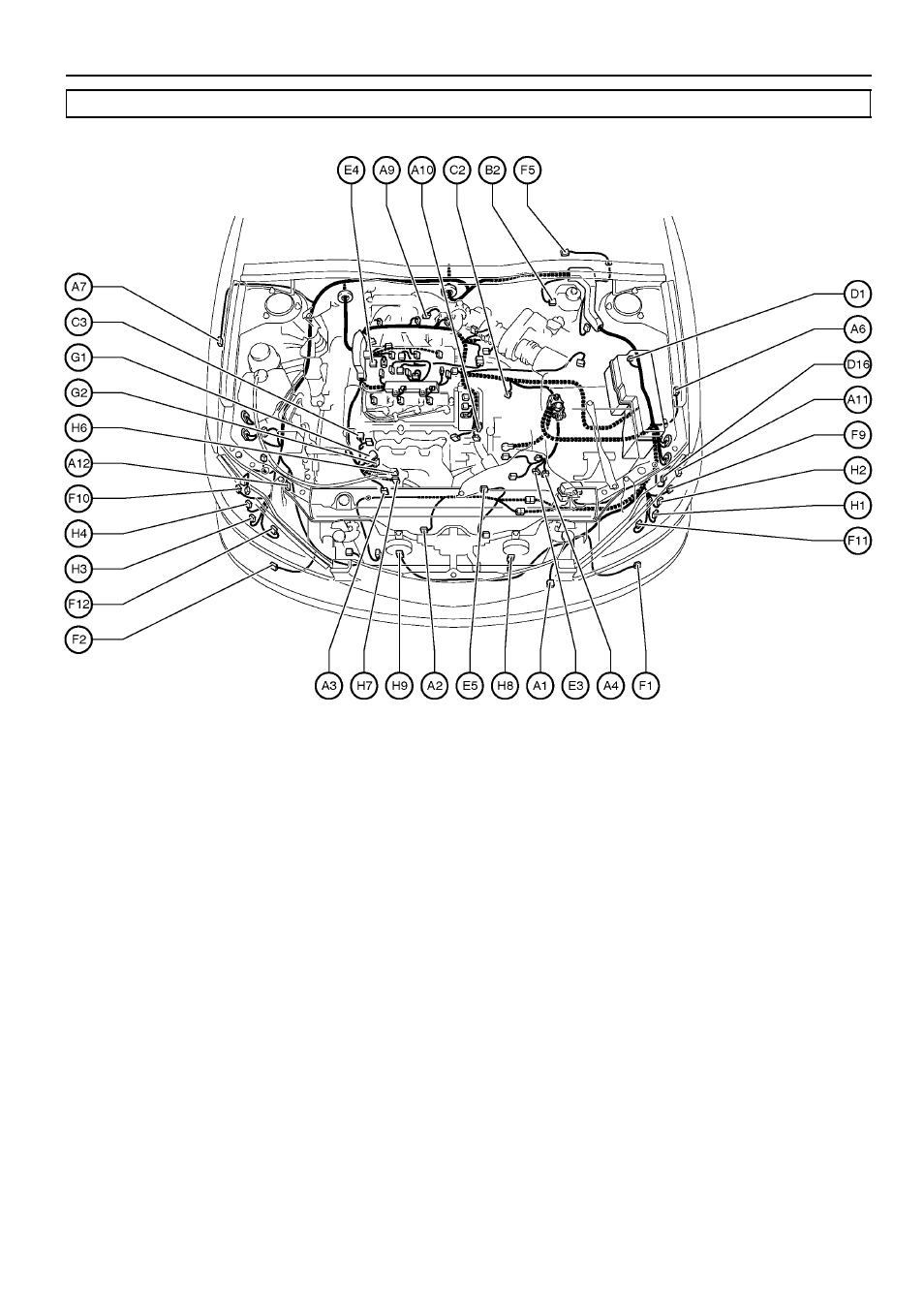

Position of Parts in Engine Compartment
[1MZ–FE, 3MZ–FE]
A 1 A/C Ambient Temp. Sensor
A 2 A/C Condenser Fan Motor
A 3 A/C Lock Sensor
A/C Magnetic Clutch
A 4 A/T Indicator Light SW
Back–Up Light SW
Park/Neutral Position SW
A 6 ABS Speed Sensor Front LH
A 7 ABS Speed Sensor Front RH
A 9 Air Fuel Ratio Sensor (Bank 1 Sensor 1)
A 10 Air Fuel Ratio Sensor (Bank 2 Sensor 1)
A 11 Airbag Sensor Front LH
A 12 Airbag Sensor Front RH
B 2 Brake Fluid Level Warning SW
C 2 Counter Gear Speed Sensor
C 3 Crankshaft Position Sensor
D 1 Diode (A/C No.1)
D16 Daytime Running Light Resistor
E 3 Electronically Controlled Transmission Solenoid
E 4 Engine Coolant Temp. Sensor
E 5 Engine Hood Courtesy SW
F 1 Front Fog Light LH
F 2 Front Fog Light RH
F 5 Front Wiper Motor
F 9 Front Parking Light LH
F 10 Front Parking Light RH
F 11 Front Turn Signal Light LH
F 12 Front Turn Signal Light RH
G 1 Generator
G 2 Generator
H 1 Headlight LH (High)
H 2 Headlight LH (Low)
H 3 Headlight RH (High)
H 4 Headlight RH (Low)
H 6 Heated Oxygen Sensor (Bank 1 Sensor 2)
H 7 Heated Oxygen Sensor (Bank 2 Sensor 2)
H 8 Horn (High)
H 9 Horn (Low)
