Advanced Navigator Functions
5-57
ForestayStrain –
Set – The direction of the current, in degrees.
Drift – The velocity of the current, in knots.

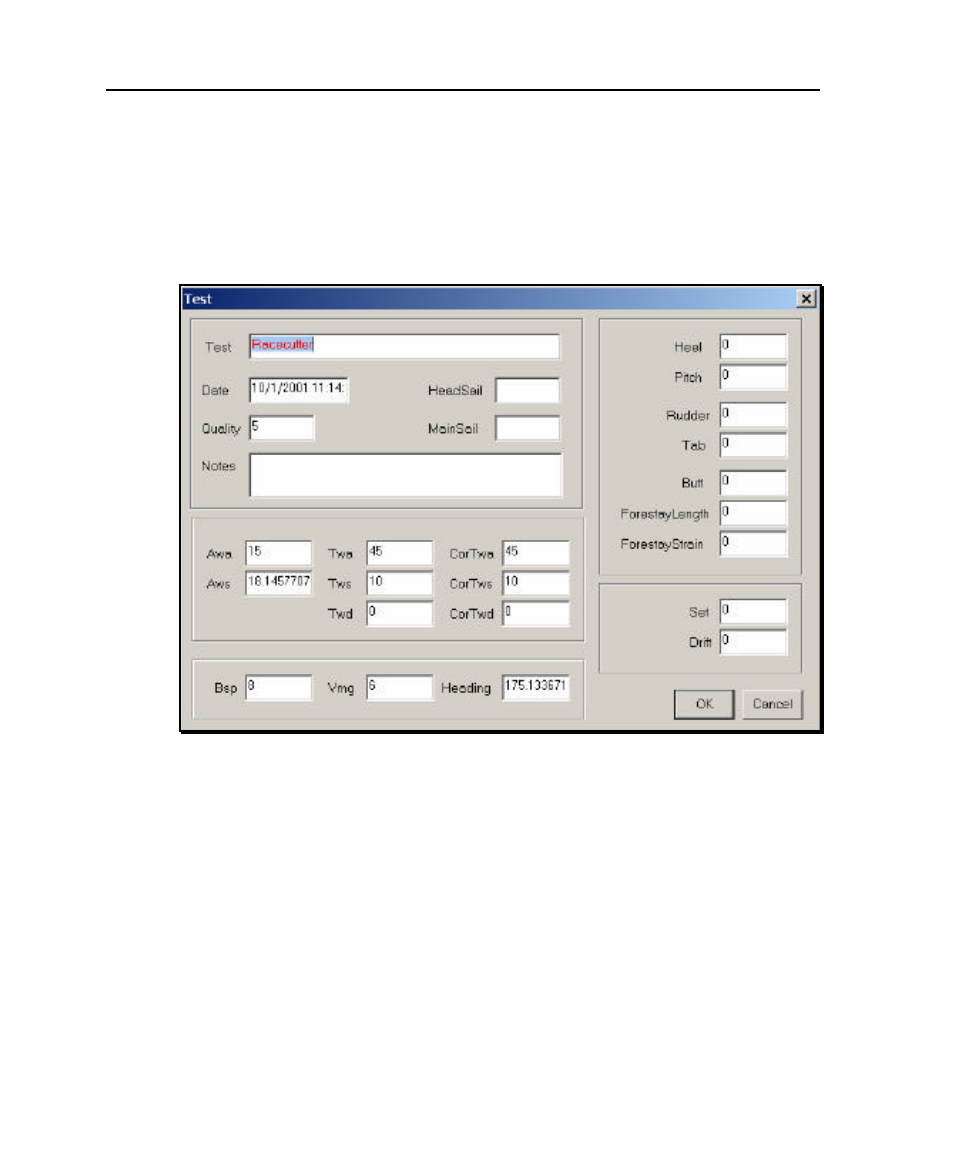

Figure 5-16. Test Parameters Screen
3. Type your data into the appropriate fields, then click OK
when you are finished.
4. You can further refine your analysis by using filters to narrow
the number of data test rows displayed in the Data Tests
screen. The Filters screen (Figure 5-17) enables you display
only those tests that fall within the specific criteria you select.
For example, you might only want to see tests that were run
from October 5
th
to October 14
th
2001. To use filters, click
Filters on the Data Tests screen. The Filters screen is
displayed.
