13
Panel Descriptions
fig.00-020
1 AC Inlet
Connect the included power cord to this inlet (p. 15).
2 Phones jacks
Connect the headphones here (p. 17).
3 Pedal connector
Connect the pedal cord here (p. 15).
4 Output jacks
These jacks can be connected to your audio system to
enjoy more powerful sound (p. 79).
5 Input jacks
You can connect other sound generating devices or
audio equipment here and have their sound be played
through the RG-1’s speakers (p. 80).
6 MIDI In/Out connectors
Connect to external MIDI devices to exchange
performance data (p. 81).
7 USB (MIDI) connector
You can connect a computer and exchange
performance data between the instrument and the
computer (p. 82).
8 LCD Contrast knob
This adjusts the brightness of the front panel display (p.
20).
fig.00-030
1 External memory connector
Here you can connect USB memory, a floppy disk drive,
or a CD drive, and play back stored songs (p. 45, p. 47).
You can also use USB memory to save a song you’ve
recorded on the RG-1 (p. 64).
By rotating the base you can neatly store the USB
memory or USB cable.
* CD drives that draw their power from the USB connector
cannot be used.

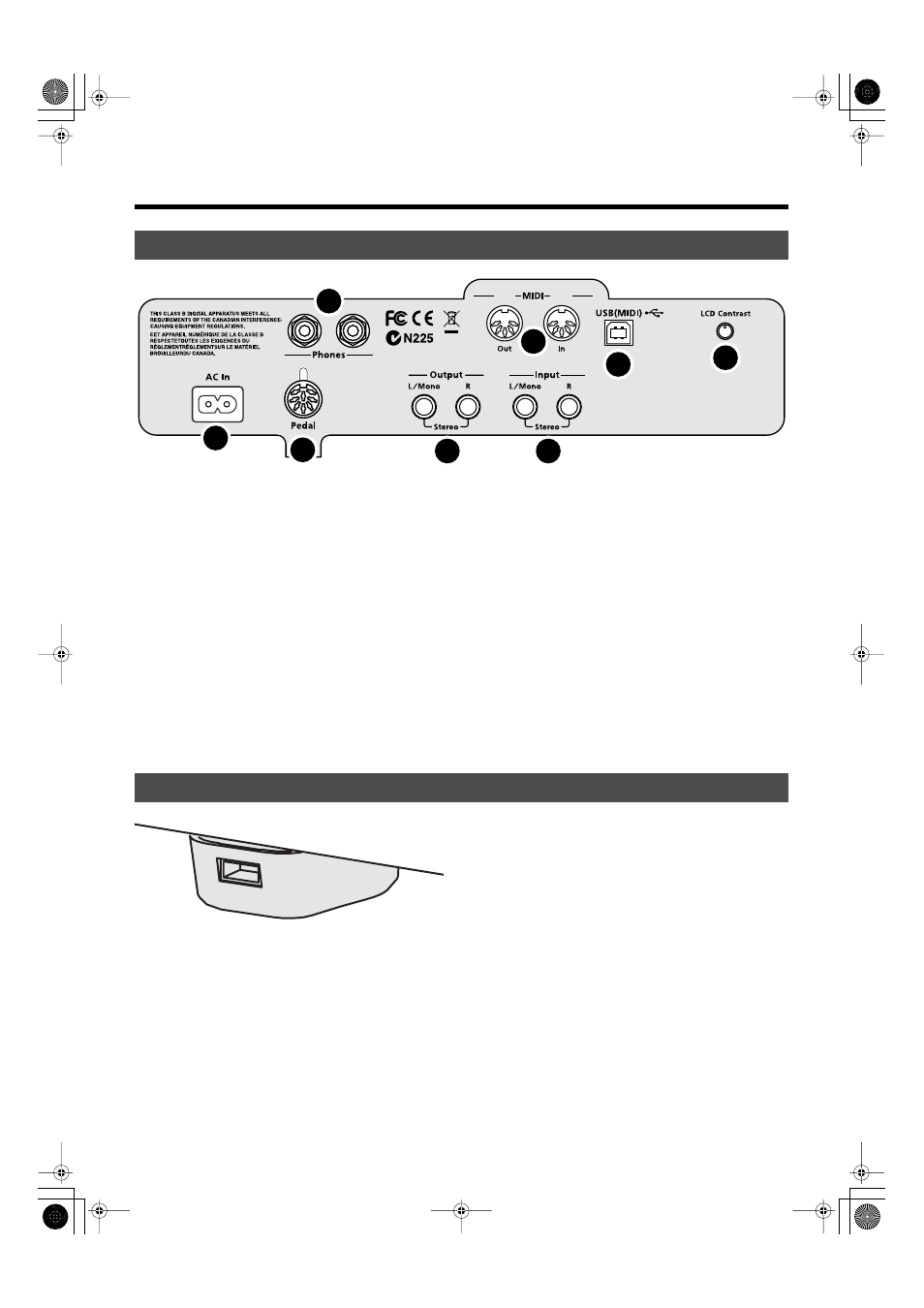

Jack Panel (RG-1’s Bottom Left Panel)
1
2
3 4
7
8
5
6
RG-1’s Bottom Right Panel
