69
2

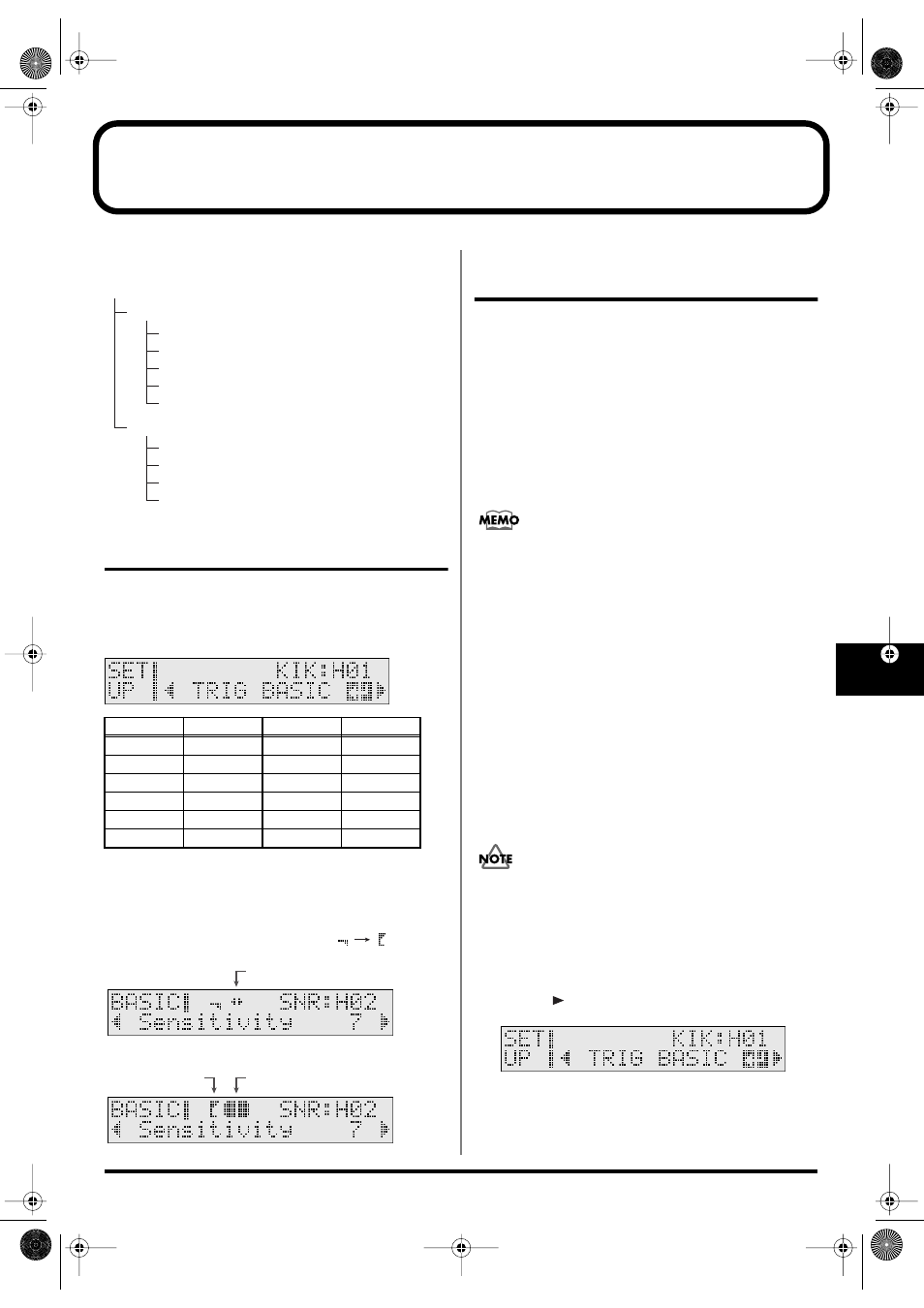

Chapter 2 Making the Pad and Trigger Settings
(SETUP/TRIG)
Parameters That Can Be Set Here
fig.02-001.e
About the Screen Display
Notation Used in the Screen
Trigger input numbers and names are indicated in pad and
trigger settings screens.
fig.SETUP-BASIC
About the Input Indicator
The input indicator is indicated in the pad and trigger settings
screens as shown in the following. A flag is raised when the
indicator reaches the maximum position ( ).
fig.P-020aai.e
Selecting the Pad Type
(Trigger Type)
To ensure that the TD-6V accurately receives signals sent from
the pads, be sure to specify the
trigger type (the type of pads
being used).
Set each trigger input as described below.
Setting the trigger type allows the TD-6V to accurately detect
the force used to strike the pads and avoid secondary
sounding of a pad (retriggering). You can also set this up for
PD-85 and PD-120 rim shots.
After making the trigger type settings, adjust the pad
sensitivity and carry out other adjustments as needed.
When you set the Trigger Type, the following parameters are
automatically set to the most efficient values.
They should be adjusted as necessary to match the actual state of
your configuration and the environment in which it is being used.
Basic Trigger Parameter
(SETUP/TRIG BASIC; p. 71)
• Sensitivity
• Threshold
• TrigCurve
Advanced Trigger Parameter
(SETUP/TRIG ADVNCD; p. 73)
• Scan TIme
• Retrig Cancel
• Mask Time
• Rim Sens
Trigger parameters other than Trigger Type influence the
head AND the rim.
1. While holding down [SHIFT], press [EDIT
(SETUP)].
[EDIT] lights.
2. Press [ ] to select “TRIG BASIC.”
fig.SETUP-BASIC_50
Screen Name Screen Name
KIK KICK T3 TOM3
SNR SNARE T4 TOM4
HH HI-HAT CR1 CRASH1
T1 TOM1 CR2 CRASH2
T2 TOM2 RD RIDE
AUX AUX
SETUP
TRIGGER BASIC (Pad Sensitivity Settings) (p. 72)
Trigger Type
Crosstalk Cancel
Threshold
Trigger Curve
Rim Sensitivity
Sensitivity
TRIGGER ADVANCED (Detailed Pad Settings) (p. 74)
Scan Time
Mask Time
Retrigger Cancel
Indicator
Indicator (Maximum) Maximum Indication
