IPmux-16 Installation and Operation Manual Chapter 1 Introduction
Physical Description 1-5
buffer begins to overfill, the regenerated clock frequency increases to avoid
overflow. If the buffer begins to empty, the Receive clock decreases to avoid
underflow.
• Internal Clock
In this mode, the Transmit (TX) clock is received from an internal oscillator.
This mode is useful for testing and diagnostic purposes.
Standards
G.703, G.704, G.706, G.823,
ANSI T1.403,
TR-AT&T62411, G.824, IEEE 802.3, IEEE 802.3D, 802.1 p&q
EMC Class B compliance – EN 55022 Class B
General
IPmux-16 is a 1.5U high easy to install standalone unit.
A rack mount option is available.
IPmux-16 can be ordered with dual redundant power supplies (two AC or two DC
modules).
1.2 Physical Description
IPmux-16 is a 1.5U high, easy-to-install standalone unit. A rack mount option is
available.

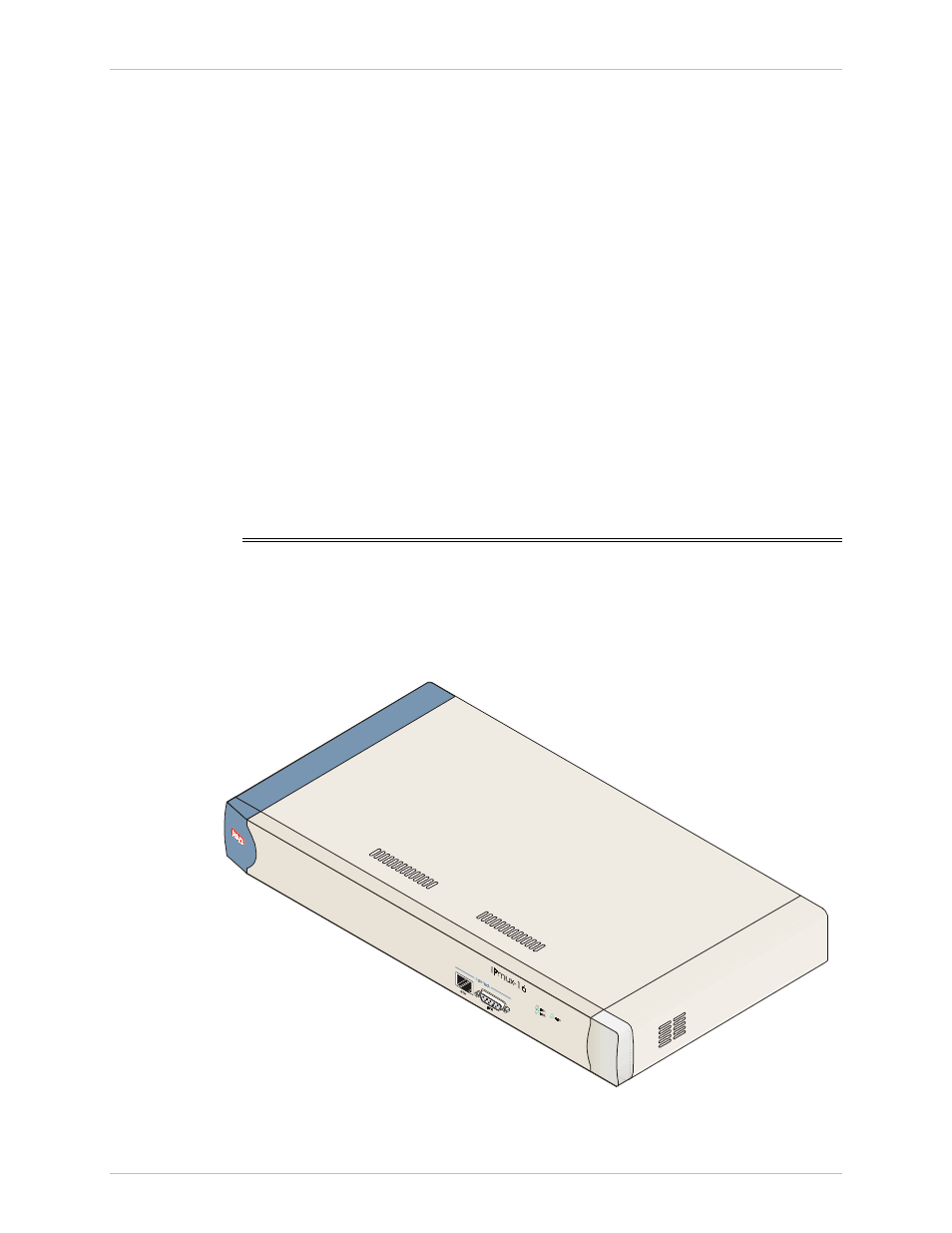

Figure 1-3. IPmux-16 3-D View
