5.4.11 Go

to

Source

Only enabled when one breakpoint is selected. Opens the [Source] window at the address of the
breakpoint.

5.4.12 [Set Break] Dialog Box

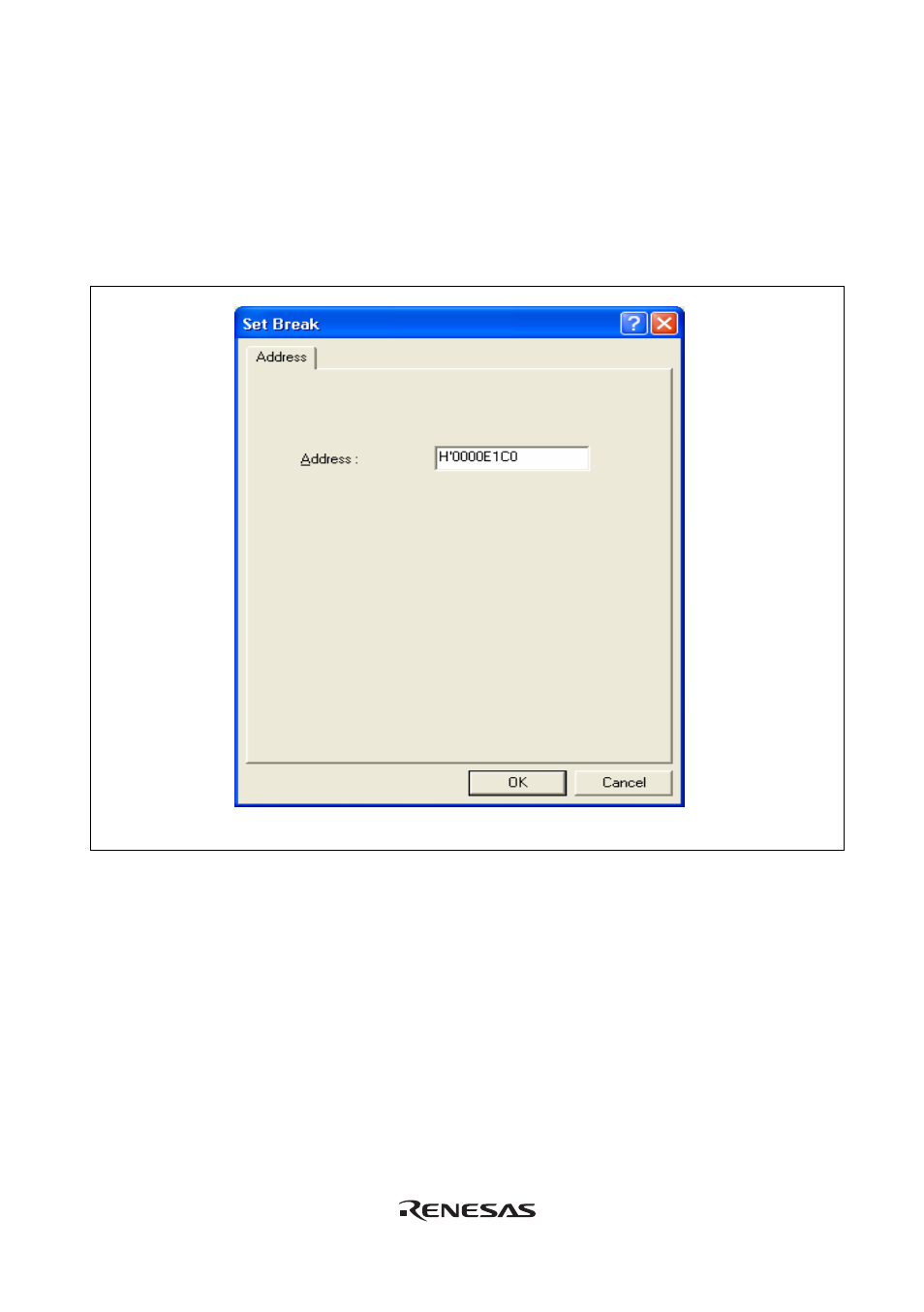

Figure 5.6 [Set Break] Dialog Box

This dialog box specifies break conditions.

A breakpoint address to be set is specified in the [Address] edit box. Up to 255 breakpoints can be
specified.

When [Address] is selected, if an overloaded function or class name including a member function
is specified in address, the [Select Function] dialog box opens.

Clicking the [OK] button sets the break conditions. Clicking the [Cancel] button closes this dialog
box without setting the break conditions.

81
