6.11 Viewing Memory
When the label name is specified, the user can view the memory contents that the label has been
registered in the [Memory] window. For example, to view the memory contents corresponding to
_main in word size:
• Select [Memory …] from the [CPU] submenu of the [View] menu, enter _main in the
[Display Address] edit box, enter 0000 and FFFF in the [Scroll Start Address] and [Scroll End
Address] edit boxes, respectively.

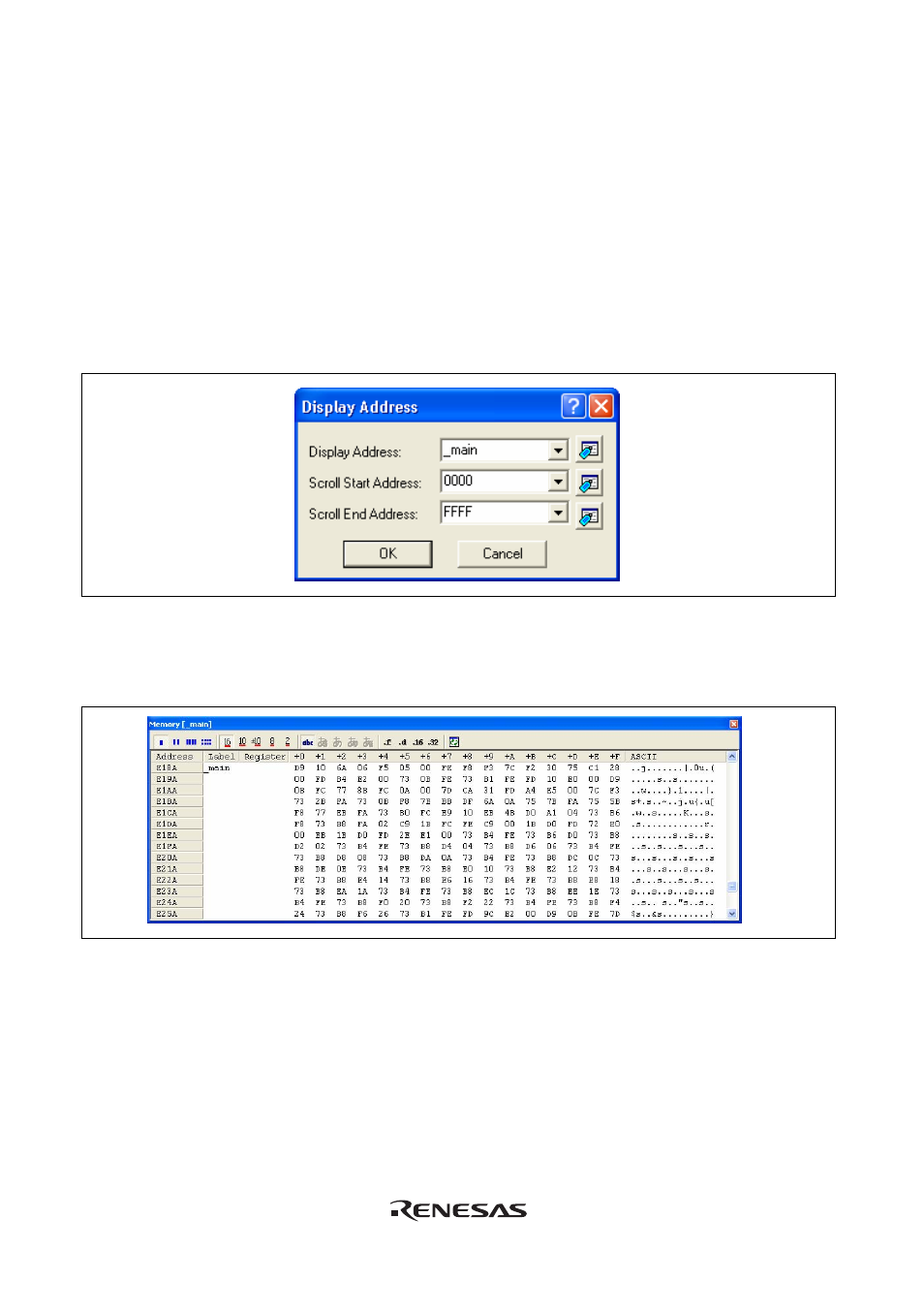

Figure 6.13 [Display Address] Dialog Box
• Click the [OK] button. The [Memory] window showing the specified area of memory is
displayed.
Figure 6.14 [Memory] Window
108
