The names of each section of the emulator are explained next.

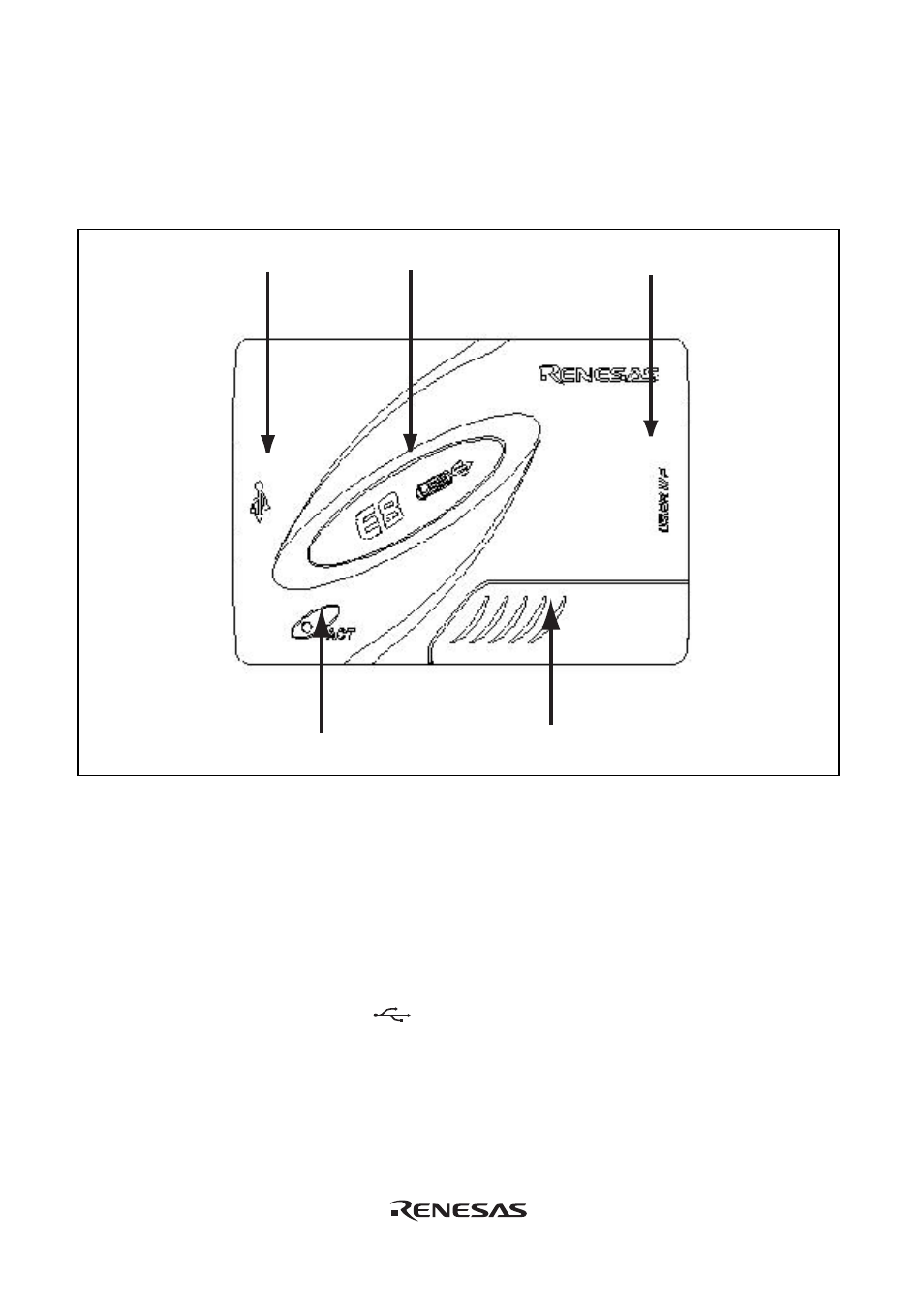

Emulator Upper-side Panel:
(a)
(b)
(c)
(d) (e)
Figure 3.3 Emulator Upper-side Panel
(a) E8 logo plate: A pink plate dedicated for the emulator is provided to be easily
distinguished from other E-series emulators.
(b) Sliding switch cover: A cover to protect a switch for setting the emulator, which is closed
to prevent incorrect operation. Be sure to close this cover during
emulation.
(c) ACTION LED: Marked ‘ACT’. When this LED is lit, the E8 control software is in
operation.
(d) Host connector: Marked ‘ ’. A connector for the host computer is provided at the
side of this mark.
(e) User connector: Marked ‘USER I/F’. A connector for the user system interface cable
is provided at the side of this mark.
Note: Even if the LED is not lit when the emulator is connected to the host computer, the USB is
not malfunctioned.
