3.9 Uninstalling the Emulator’s Debugger

Follow this procedure to remove the installed emulator’s debugger from the user’s host computer.
As the installed product is known by the High-performance Embedded Workshop, uninstall the
product on the High-performance Embedded Workshop screen.

1. Activate the High-performance Embedded Workshop.

2. Click the [Administration…] button in the [Welcome!] dialog box.

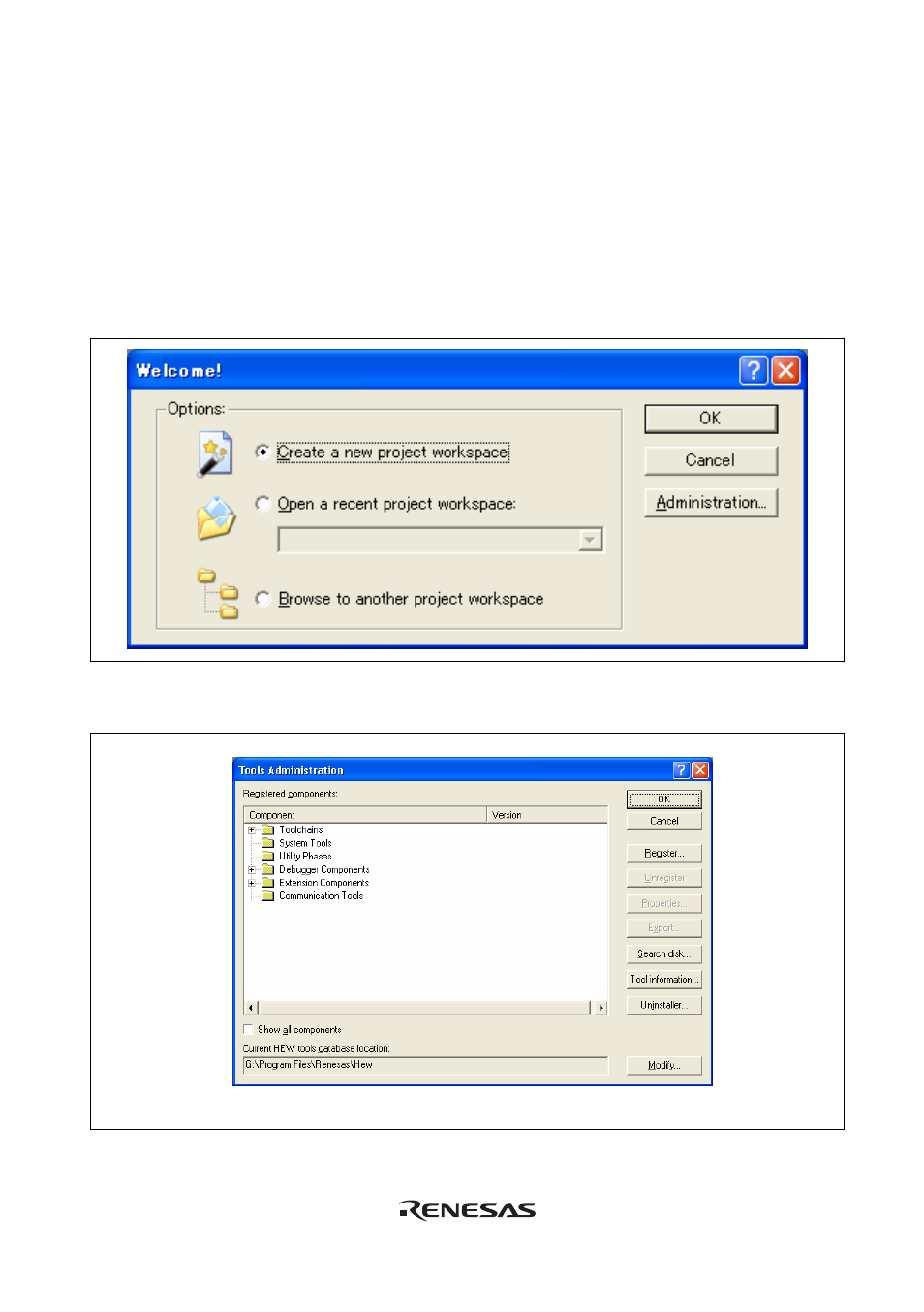

Figure 3.25 [Welcome!] Dialog Box

3. The [Tools Administration] dialog box is opened.

Figure 3.26 [Tools Administration] Dialog Box

35
