6.5 Checking the Operation of RAM
Check that RAM is operating correctly.
Display and edit the contents of the memory in the [Memory] window to check that the memory is
operating correctly.
Note: The memory can be installed on the board in some microcomputers. In this case, however,
the above way of checking the operation of memory may be inadequate. It is
recommended that a program for checking the memory be created.
• Select [Memory…] from the [CPU] submenu of the [View] menu and enter the RAM address
in the [Display Address]. Here, enter ’0480’ , and ‘0000’ and ’FFFF’ in the [Scroll Start
Address] and [Scroll End Address] edit boxes, respectively.

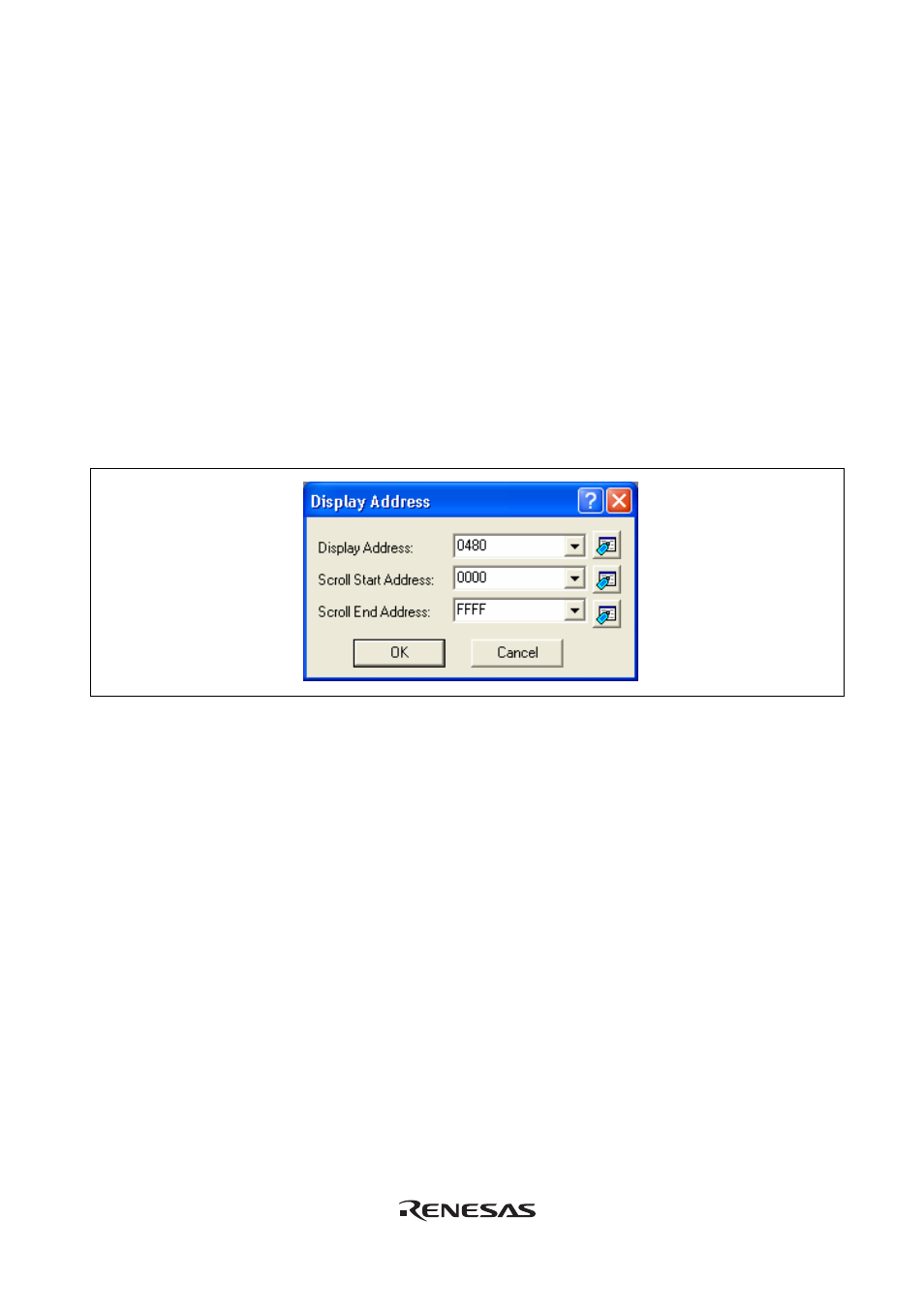

Figure 6.2 [Display Address] Dialog Box
Note: The settings of the RAM area differ depending on the product. For details, refer to the
hardware manual.
• Click the [OK] button. The [Memory] window is displayed and shows the specified memory
area.
