4.2

Setting at E8 Emulator Activation

4.2.1

Setting at Emulator Activation

When the emulator is activated, the command chain can be automatically executed. It is also
possible to register multiple load modules to be downloaded. The registered load modules are
displayed on the workspace window.

1. Select [Debug Settings…] from the [Debug] menu to open the [Debug Settings] dialog box.

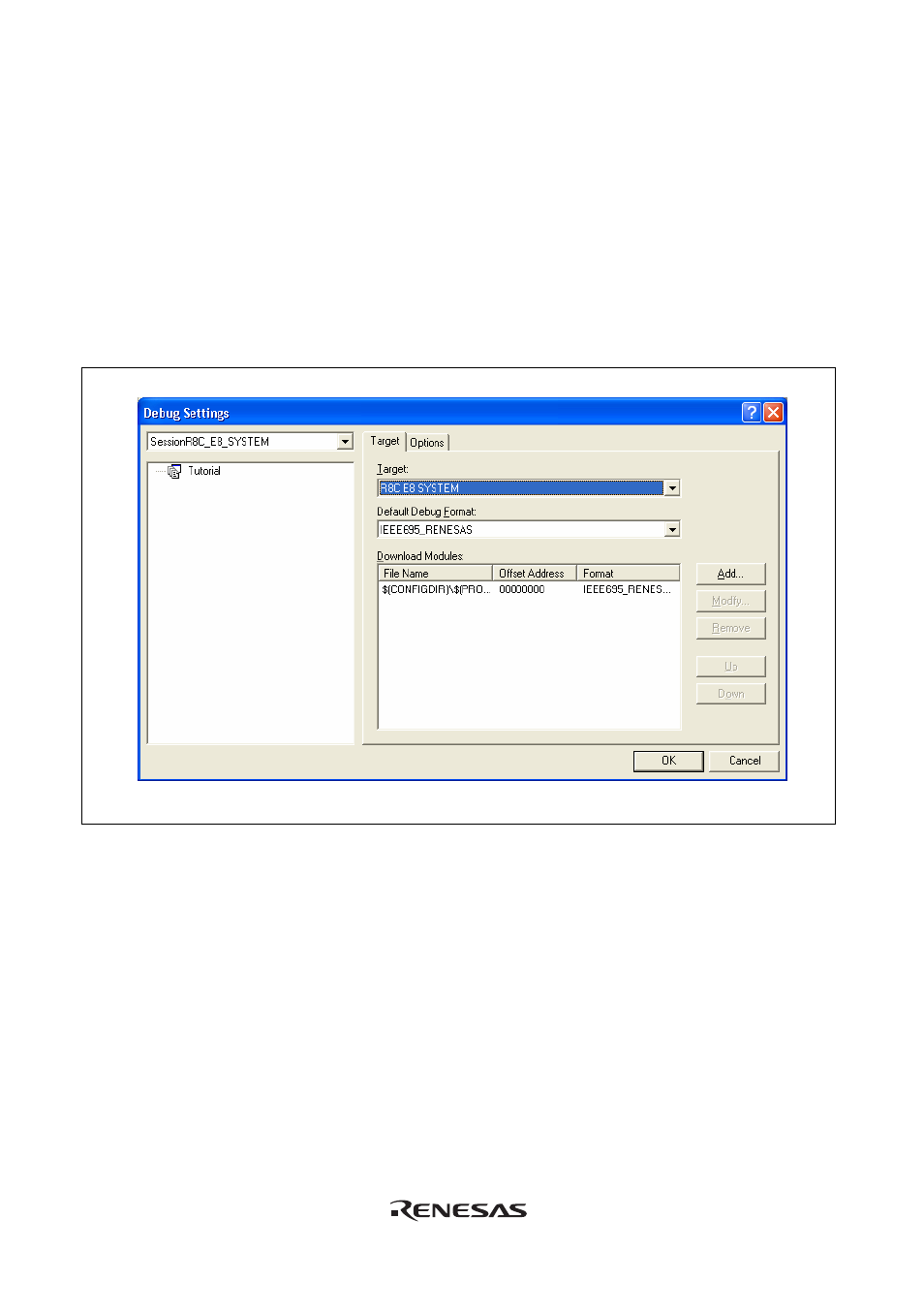

Figure 4.18 [Debug Settings] Dialog Box ([Target] Page)

2. Select the product name to be connected in the [Target] drop-down list box.

3. Select the format of the load module to be downloaded in the [Default Debug Format] drop-

down list box, then register the corresponding download module in the [Download Modules]
list box.

4. Click the [Options] tab.
