(2) The pin assignments of the connector are shown in section 2 in the additional documents,
Notes on Connecting the xxxxx.

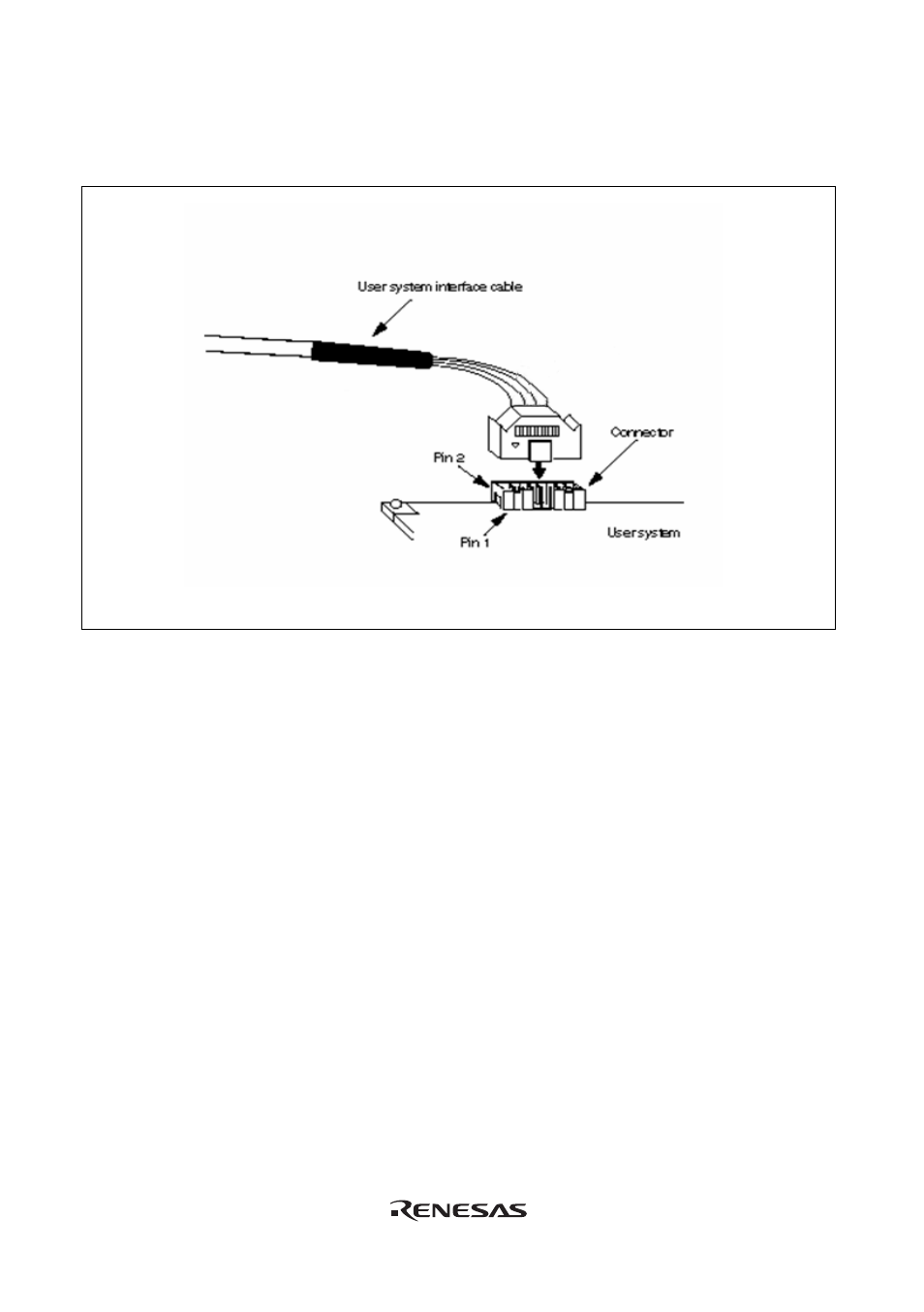

Figure 3.9 Connecting the User System Interface Cable to the User System
Notes: 1. To connect the signals output from the connector, refer to the MCU pin alignment.
2. To remove the user system interface cable from the user system, pull the tab on the
connector upward.
3. The range of frequencies that the emulator operates at is different according to the
MCUs used.
4. Connect the signals from the connector as shown in section 2 in the additional
documents, Notes on Connecting the xxxxx.
