Appendix E Diagnostic Hardware Program
This manual describes the troubleshooting procedure that applies the check program for the E8
emulator.
E.1. System Setup to Execute the Check Program
(1) The following equipments are required to execute the check program. Do not connect the user
system interface cable or the user system while the check program is running.
• E8 emulator station
• USB cable included with the E8 emulator
• CD included with the E8 emulator
• Host computer (hareafter, PC)
Install the High-performance Embedded Workshop and USB driver on the PC in
advance.
(2) Start up the host computer, and connect the E8 emulator to the USB connector of the host
computer via the USB cable attached. Prior to this, the user interface cable must be
disconnected.
E.2. Executing the Check Program
(1) Execute [Program]-[Renesas]-[High-performance Embedded Workshop]-[E8 Self Check
Program].

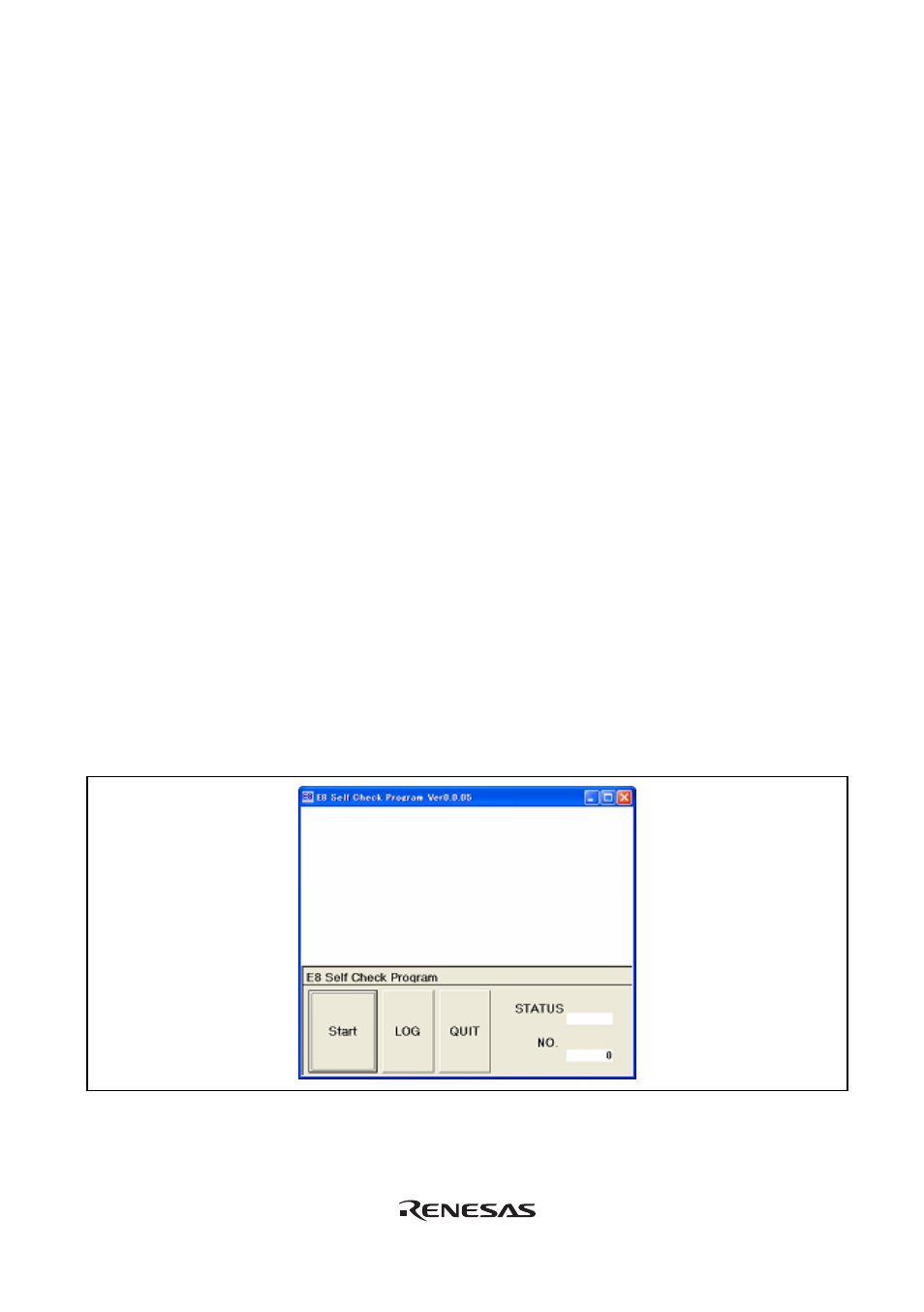

Figure E.1 Starting Up the Check Program
