11. When [Power supply is carried out. (MAX 300mA)] is not checked, power on the user system
and click the [OK] button.
12. When "Connected" is displayed in the [Output] window of the High-performance Embedded
Workshop, the emulator initiation is completed

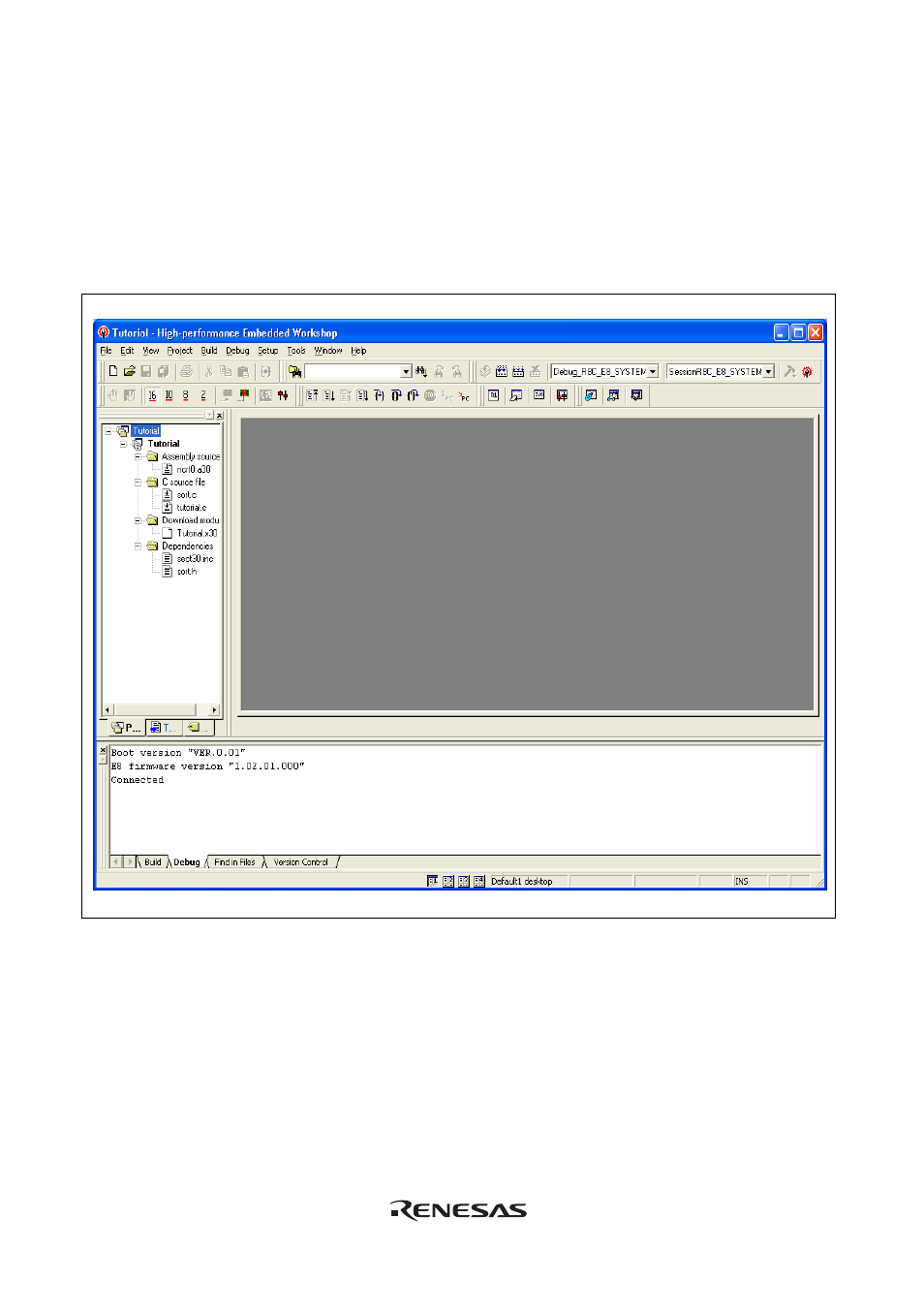

Figure 3.18 High-performance Embedded Workshop Window
Note: When the user program has already been downloaded to the flash memory, source-level
debugging cannot be executed because there is no debugging information on the user
program after the emulator has been activated. Be sure to load the debugging information
file. For details, refer to section 4.2.1, Setting at Emulator Activation.
