Renesas Emulator System E8 User Manual
Page 52

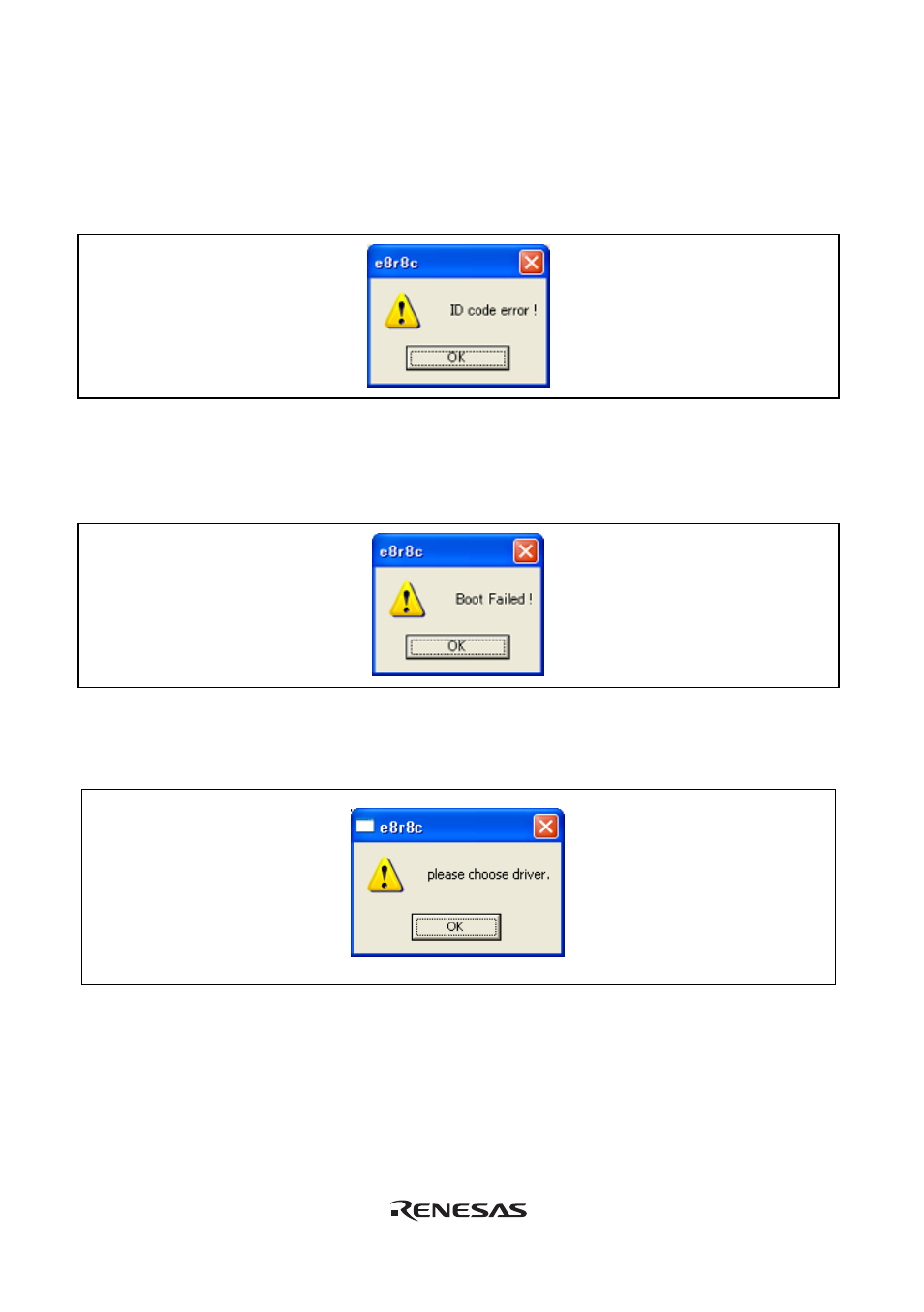

(c) The following dialog box is displayed when an incorrect ID code has been input. For
the H8/Tiny, H8/ Super Low Power, R8C/10, 11, 12 and 13, if an ID code does not
match, the flash memory will be completely erased.
Figure 3.22 [ID code error!] Dialog Box
(d) The following dialog box is displayed when the MCU cannot communicate with the
emulator. Check the MCU settings.
Figure 3.23 [Boot Failed!] Dialog Box
3. If an incorrect driver has been selected, the following dialog box will appear.
Figure 3.24 [Unable to restore the previous driver settings] Dialog Box
34
