Renesas Emulator System E8 User Manual
Page 48
7.
The [Connecting] dialog box is displayed and the emulator connection is started.

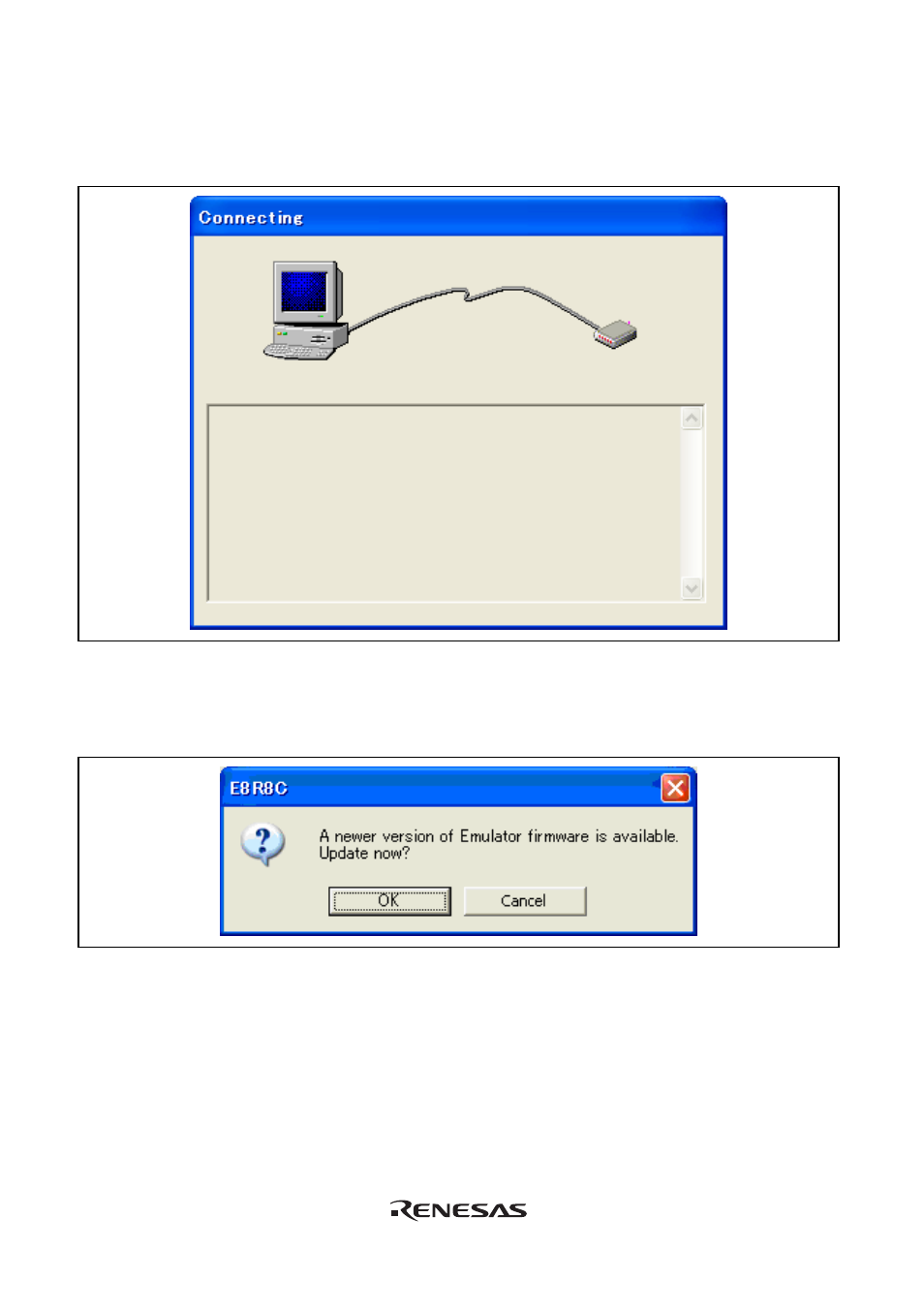

Figure 3.14 [Connecting] Dialog Box
8. When the version of the E8 firmware downloaded into the emulator is old, the message box
shown in Figure 3.15 will be displayed.
Figure 3.15 Dialog Box for confirming the E8 firmware download
Note: When [OK] button is clicked, it starts downloading the E8 firmware. Do not
connect/disconnect the USB cable until the download status dialog box closes.
30
