M3028BT-EPB User’s Manual 4. Hardware Specifications
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
4.4.4 External Dimensions of the Converter Board M30291T-64FPD

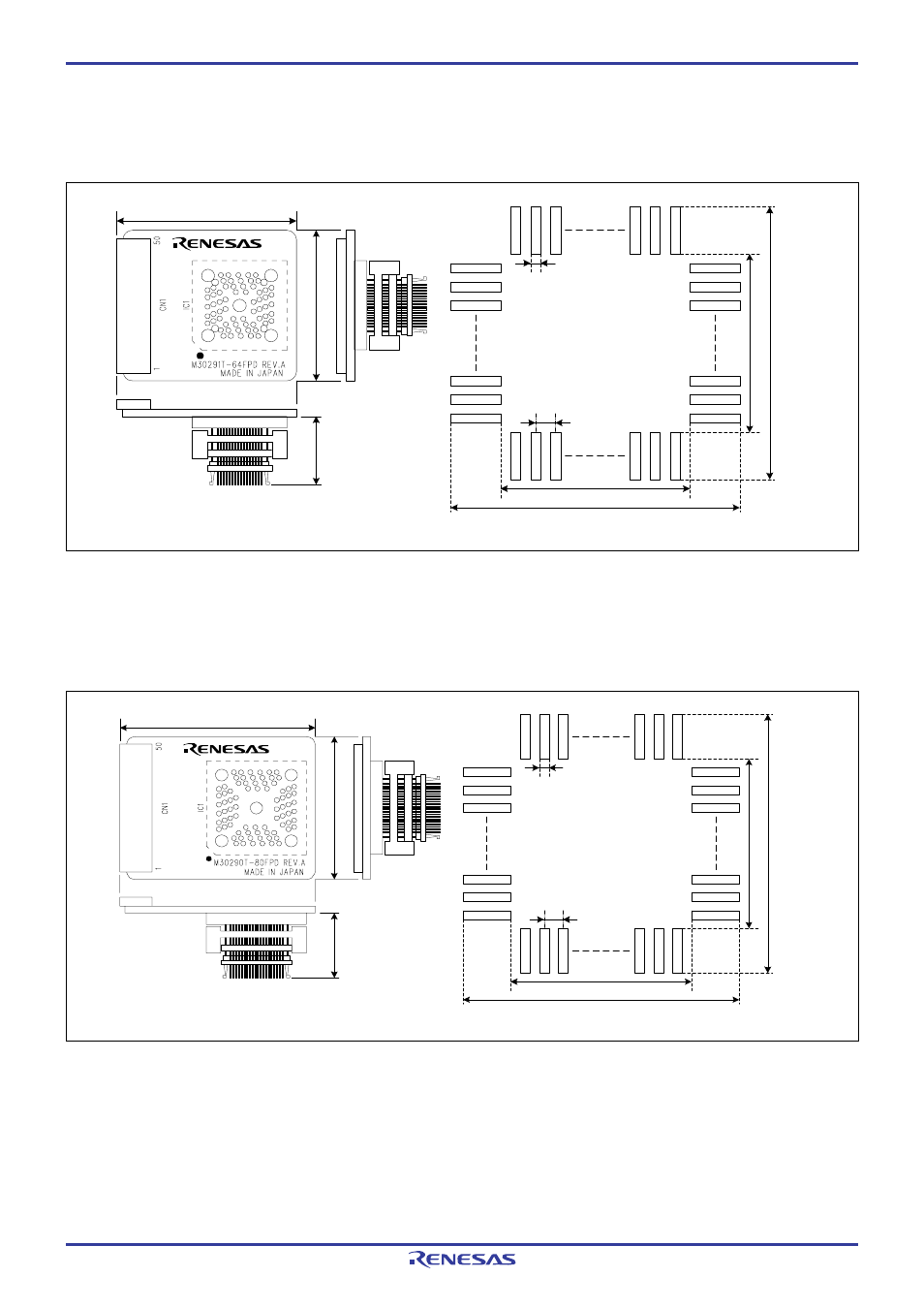

Figure 4.5 shows external dimensions and a sample foot pattern of the converter board M30291T-64FPD (included with the
M3028BT-EPB-3) for a 64-pin 0.5mm pitch LQFP.
36.0
16
.5
32
.0
0.25
0.5
10.0
14.0
10
.0
14
.0
Unit: mm
Figure 4.5 External dimensions and a sample foot pattern of the converter board M30291T-64FPD
4.4.5 External Dimensions of the Converter Board M30290T-80FPD
Figure 4.6 shows external dimensions and a sample foot pattern of the converter board M30290T-80FPD (included with the
M3028BT-EPB-4) for an 80-pin 0.5mm pitch LQFP.
41.0
32.0
16
.5
0.25
0.5
11.1
15.1
11.
1
15.
1
Unit: mm
Figure 4.6 External dimensions and a sample foot pattern of the converter board M30290T-80FPD
Page 71 of 86
