M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006

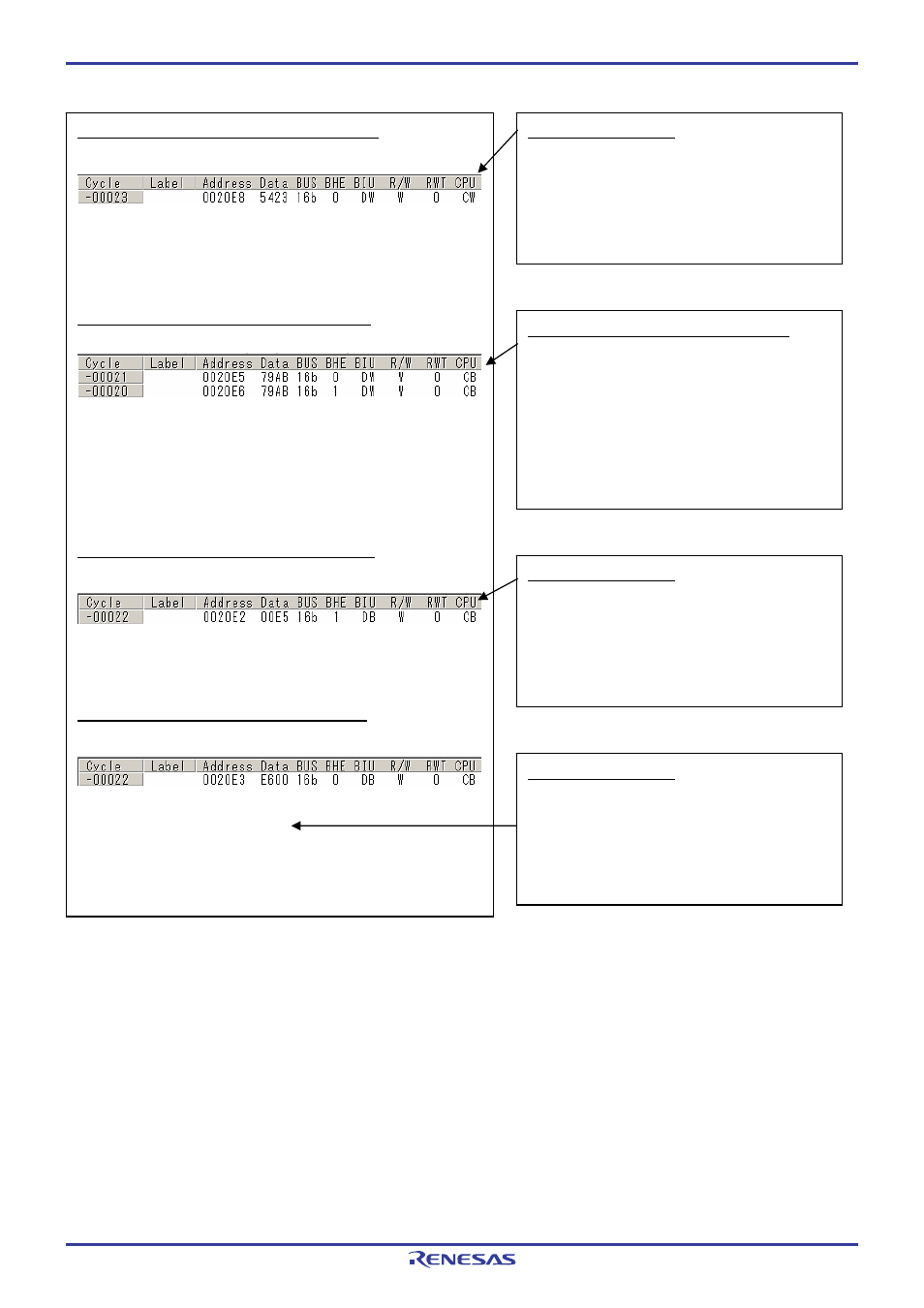

3. Example Data Settings
Event setting for even-address word access
STE.W A0,20E8h(A0=5423h)
High-order and low-order data effective
Event setting for odd-address word access
STE.W A0,20E5h(A0=AB79h)
Odd-address high-order data effective
Even-address low-order data effective
Event setting for even-address byte access
STE.B R0L,[A1A0](R0L=E5h,A1=0000h,A0=20E2h)
Low-order data effective
Event setting for odd-address byte access
STE.B R0L,[A1A0](R0L=E6h,A1=0000h,A0=20E3h)
High-order data effective
Setting a break event
A1
Address 1 : 0020E8
Data 1 : 5423
MASK : FFFF
Access : WRITE
Setting a break event (using 2 events)
A1 A2
Address 1 : 0020E5 Address 1 : 0020E6
Data 1 : 7900 Data 1 : 00AB
MASK : FF00 MASK : 00FF
Access : WRITE Access : WRITE
Set the combinatorial events to AND.
Setting a break event
A1
Address 1 : 0020E2
Data 1 : 00E5
MASK : 00FF
Access : WRITE
Setting a break event
A1
Address 1 : 0020E3
Data 1 : E600
MASK : FF00
Access : WRITE
Page 58 of 86
