M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006 Page 60 of 86

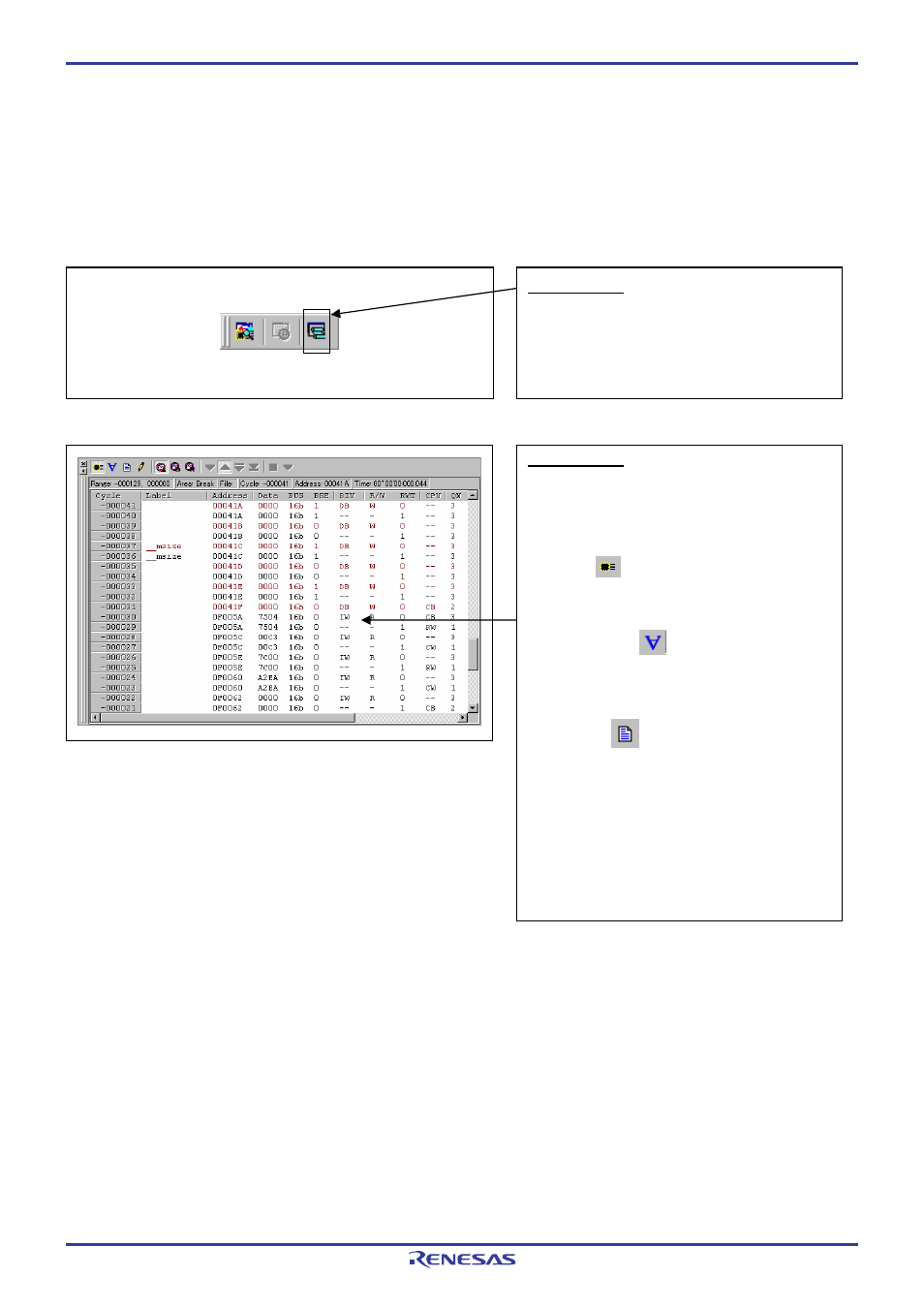

3.4 Trace Window
The Trace Window is used to display the results of real-time trace measurement.
(1) Trace window
1. Opening the trace window
2. Trace window
Trace window
The trace window is used to show the results of real-time
trace measurements. It has the following three display
modes:
- Bus mode
Bus information per cycle can be inspected. The
contents are displayed in order of execution paths.
- Disassemble mode
The execution paths of the executed instructions can
be inspected. The contents are displayed in order of
execution paths.
- Source mode
The execution paths of the source program can be
inspected.
Operating buttons of the tool bar can reference the
execution paths.
The trace window shows the measurement result when a
real-time trace measurement has finished. The trace window
remains blank until the real-time trace measurement in
progress finishes.
Trace window
Clicking this button opens the trace window.
Or you can select “Trace” from “Trace” of “Display” menu
for the same effect.
