M3028BT-EPB User’s Manual 2. Setup
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
2.9.1 Connecting to a 42-pin 0.8mm pitch Foot Pattern
Here following is a procedure of connecting to a 42-pin 0.8mm pitch foot pattern on the user system using the M30263T-
42SSB (included with the M3028BT-EPB-1). For details on the M30263T-42SSB, refer to its user's manual.
(1) Mount the socket main unit included with the M30263T-42SSB to the user system.
(2) Attach the M3T-SSOP42B-450 included with the M30263T-42SSB and the socket frame to the socket main unit.
(3) Attach the J1 and J2 of the M30290T-PTCB to the J3 and J4 of the M3028BT-EPB.
(4) Attach the M30263T-42SSB to the M3T-SSOP42B-450.
● : No. 1 pin
*: These products are included with the M30263T-42 SSB package .
42- pin 0.8mm pitch
( PRSP 0042 GA -B ) foot pattern
Socket frame *
M3T-SSOP42B- 450 *
Socket main unit *
Socket frame *
MCU with on- chip
flash memory etc .
M3T-FLX 160-EPB
M3028BT-EPB
M30290 T-PTCB
M 30263 T- 42 SSB
(2 ) On- board evaluation

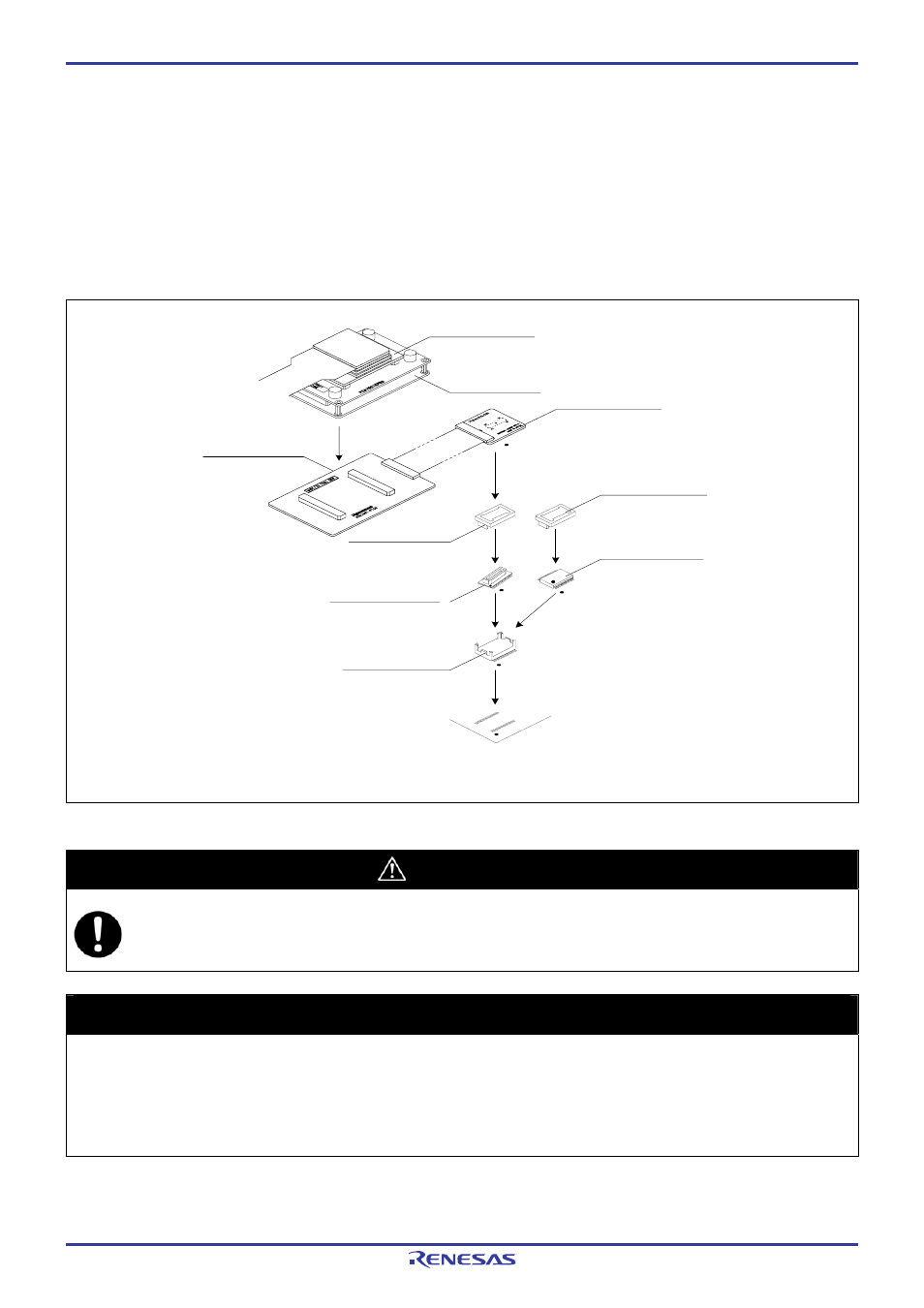

Figure 2.8 Connecting to a 42-pin 0.8mm pitch foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
targets system.
IMPORTANT
Notes on Connectors of the Converter Board:
z The connectors of the M3028BT-EPB and M30290T-PTCB are guaranteed for only 50 insertion/removal
iterations.
z The connectors of the M30263T-42SSB and M3T-SSOP42B-450 are guaranteed for only 50 insertion/removal
iterations.
Page 31 of 86
