M3028BT-EPB User’s Manual 2. Setup
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
2.9.4 Connecting to an 80-pin 0.5mm pitch Foot Pattern
Here following is a procedure of connecting to an 80-pin 0.5mm pitch foot pattern on the user system using the M30290T-
80FPD (included with the M3028BT-EPB-4). For details on the M30290T-80FPD, refer to its user's manual.
(1) Mount the NQPACK080SD-ND included with the M30290T-80FPD to the user system.
(2) Attach the YQPACK080SD included with the M30290T-80FPD to the NQPACK080SD-ND and secure it with the YQ-
GUIDE's.
(3) Attach the J1 and J2 of the M30290T-PTCB to the J3 and J4 of the M3028BT-EPB.
(4) Attach the M30290T-80FPD to the YQPACK080SD.
●: No. 1 pin
*: These products are included with the M30290T-80FPD package.
80-pin 0.5mm pitch
(PLQP0080KB-A) foot pattern
YQ-GUIDE(×4) *
YQPACK080SD *
NQPACK080SD-ND *
HQPACK080SD
(not included)
MCU with on-chip
flash memory etc.
(1)
(2)
(3)
(4)
M3T-FLX160-EPB
M3028BT-EPB
M30290T-PTCB *
M30290T-80FPD

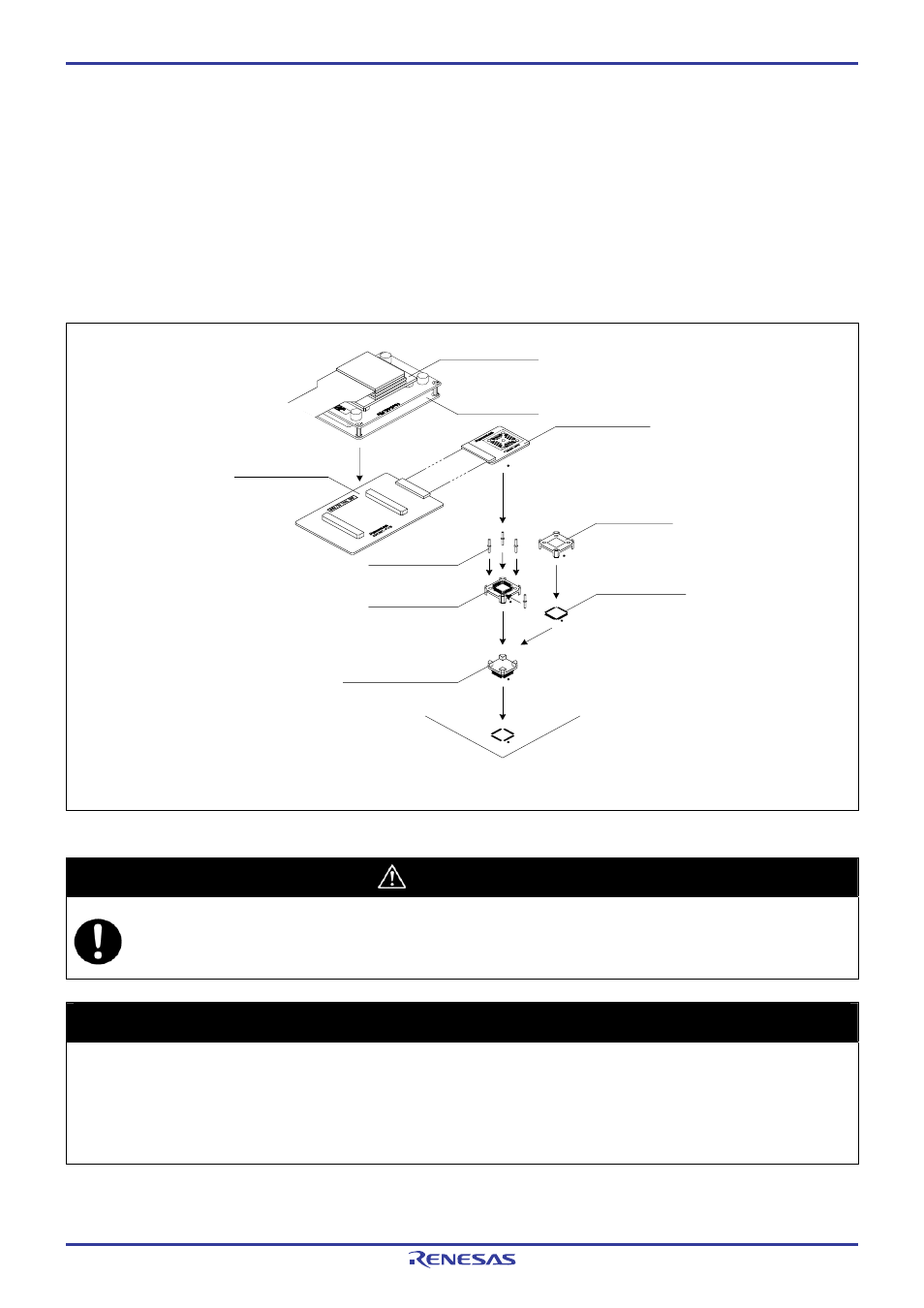

Figure 2.11 Connecting to an 80-pin 0.5mm pitch foot pattern
CAUTION
Note on Connecting the User System:
z Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
targets system.
IMPORTANT
Notes on Connectors of the Converter Board:
z The connectors of the M3028BT-EPB and M30290T-PTCB are guaranteed for only 50 insertion/removal
iterations.
z The connectors of the M30290T-80FPD and YQPACK080SD are guaranteed for only 100 insertion/removal
iterations.
