M3028BT-EPB User’s Manual

3. Usage (Emulator Debugger)

REJ10J1459-0200 Rev.2.00 Sep 16, 2006

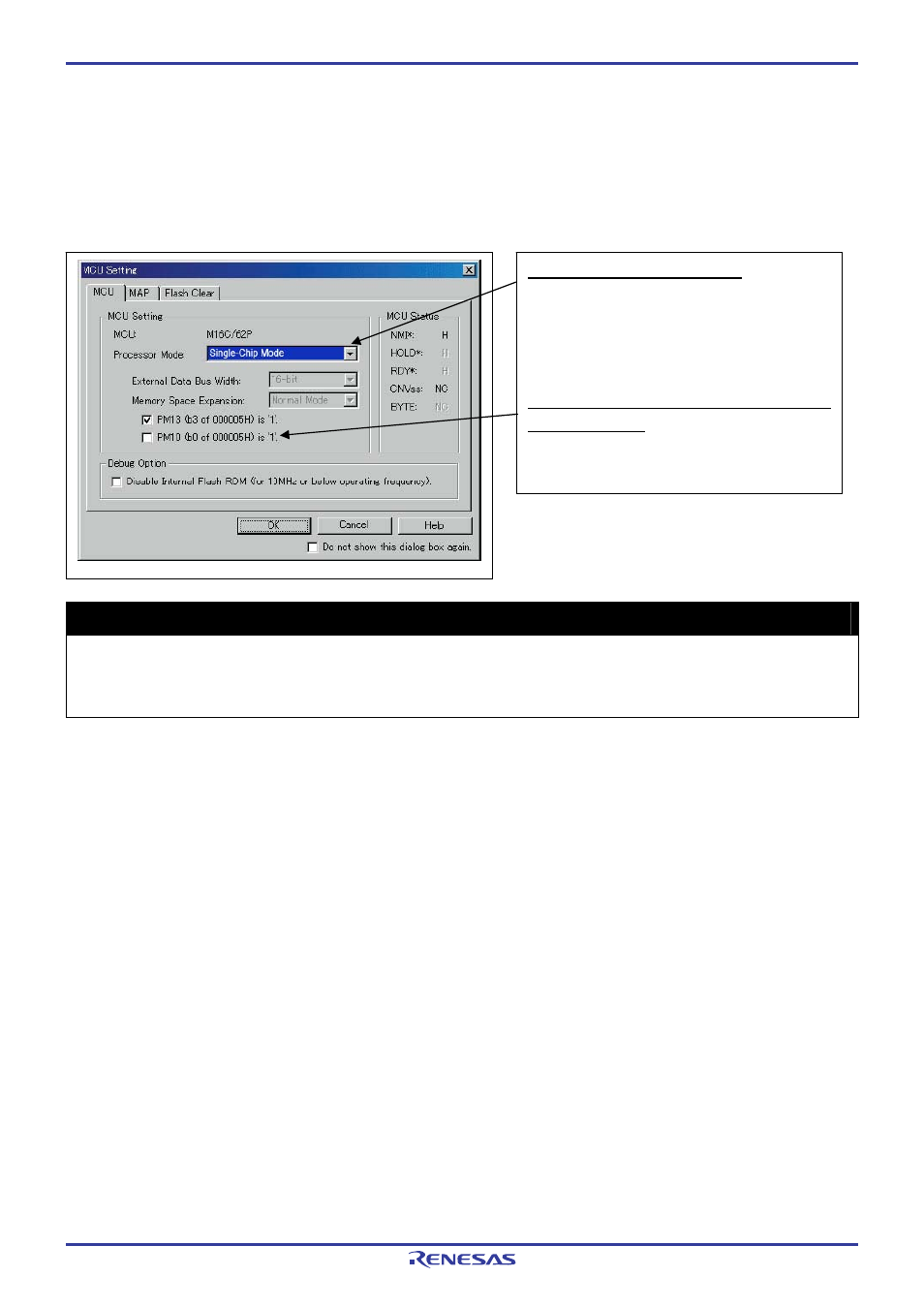

3.1.2 MCU Setting Dialog Box
MCU setting dialog box sets the information of the user system. It will be displayed after closing the Init dialog box.
When the tab settings of (1) to (3) have been finished, click “OK”.

(1) MCU tab

1. MCU setting

IMPORTANT

Notes on Selecting a Processor Mode:

When the user system is connected, the level of pin CNVss of the MCU status should be "L". The MCU status

shows the pin level of the user system.

Specifying the processor mode

Select the appropriate processor mode that suits your

system. For this product, you can specify only the following

processor mode:

- Single-Chip Mode

Specifying the PM10 area (bit 0 of the
address 00005h)

Select this option when using the MCU in which the data
area access enable bit (PM10) is set to 1.

Page 47 of 86
