M3028BT-EPB User’s Manual 3. Usage (Emulator Debugger)
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
(2) Debugging Information tab
(3) Emulator tab

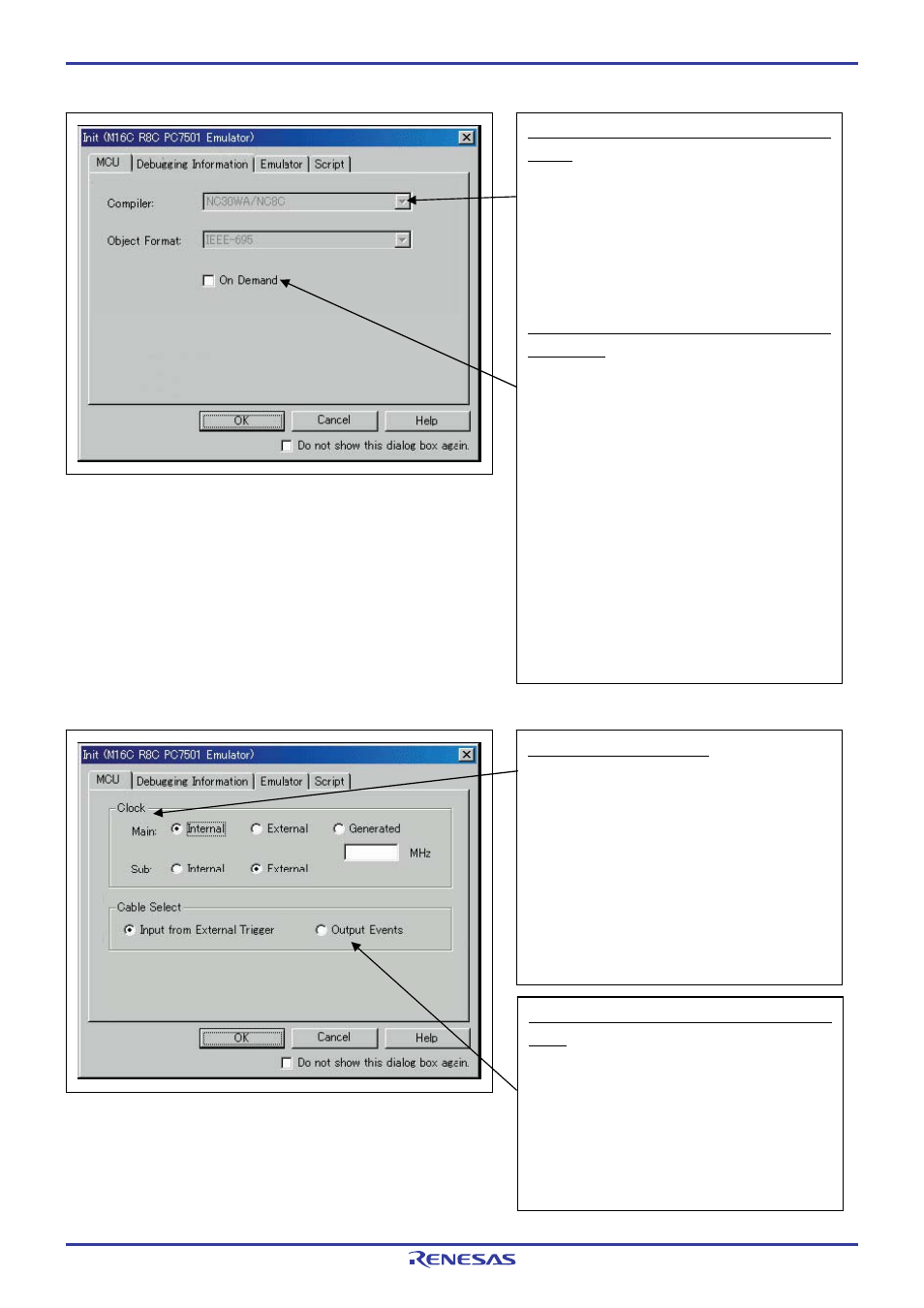

Specifying the compiler used and the object
format
Specify the compiler you are using and the format of the
object file output by the compiler.
- Compiler
Select the compiler you are using.
(By default, the C compiler from Renesas is selected.)
- Object
Format
Select the format of the object file that is output by the
compiler you are using.
Specifying the method for storing debug
information
There are two methods for storing debug information: on-
memory method and an on-demand method. Select method
for storing debug information. (By default, the on memory
is selected)
When selecting the on demand method, check the “On
Demand” check box.
- On
Memory
Debugging information is stored in the internal memory
of your computer. This method is suitable when the load
module (user program) size is small.
- On Demand
Debugging information is stored in a reusable temporary
file on the hard disk of your computer.
Because the stored debugging information is reused, the
next time you download the same load module it can be
downloaded at high speed. This method is suitable when
the load module (user program) size is large.
Specifying the target clock
Specify the clock sources supplied to the MCU (main clock
and sub clock). Select the appropriate clock sources
according to the clock used by your target MCU.
- Internal
(default)
EmulatorPC7501’s internal clock
- External
User
system clock
- Generated
Clock created in PC7501
The option you have specified here remains effective the
next time you start up.
Selecting the event output/trigger input
cable
Select input/output of the event output/trigger input cable of
the PC7501.
- Input from External Trigger (default)
Inputs the external trigger from the cable
- Output
Events
Outputs events from the cable
“Input from External Trigger” is set at startup (the previous
setting becomes null).
