M3028BT-EPB User’s Manual 1. Outline
REJ10J1459-0200 Rev.2.00 Sep 16, 2006
1.3 System Configuration
1.3.1 System Configuration

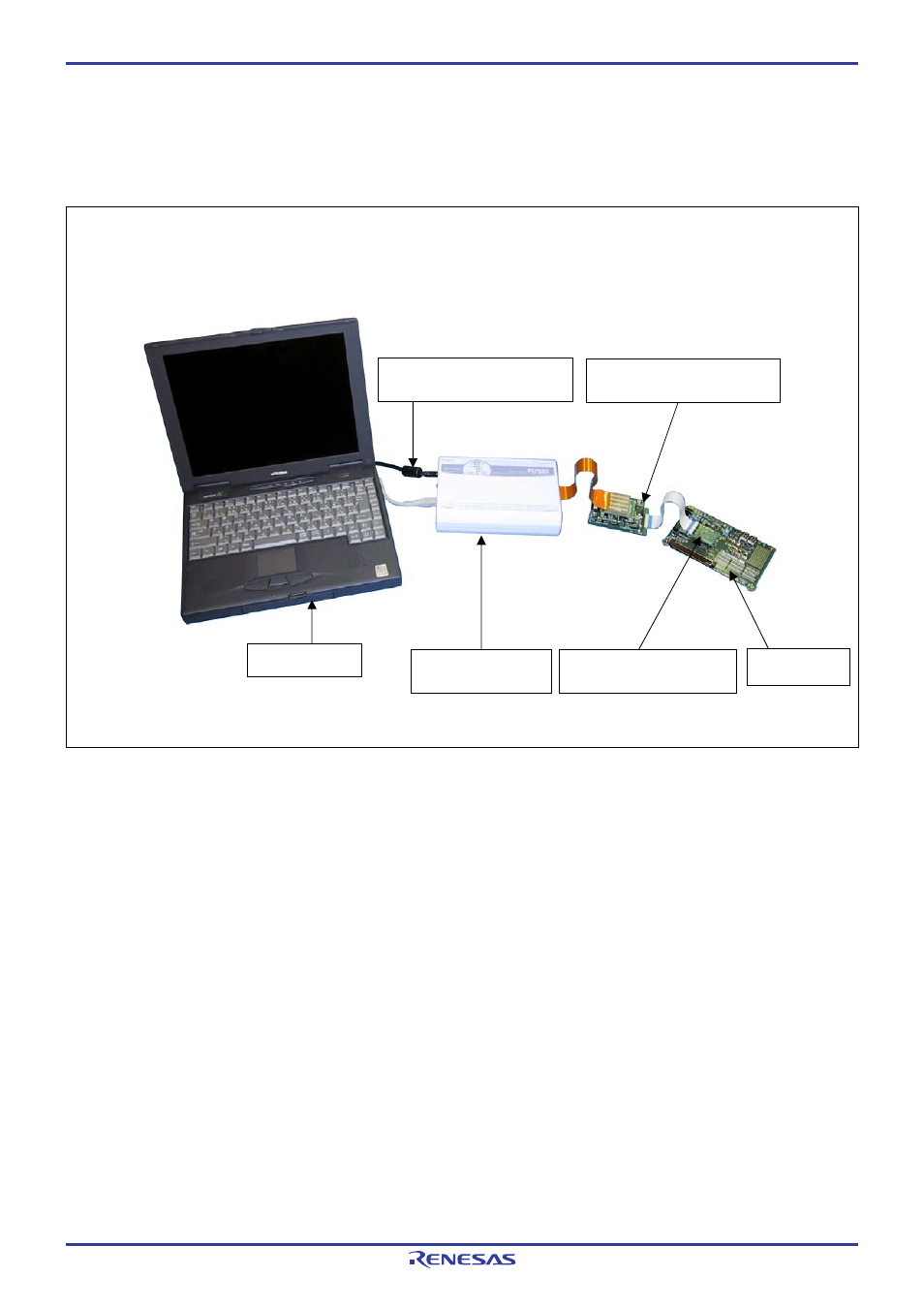

Figure 1.1 shows a configuration of the M3028BT-EPB system.
Figure 1.1 System configuration
(1) Emulation probe M3028BT-EPB (this product)
This emulation probe consists of the interface board PCA7501EPBA for the M16C/Tiny Series and MCU board
M3028BT-EPBM for the M16C/Tiny Series MCUs. The M3028BT-EPBM with an evaluation MCU is separately
available for replacement.
(2) Package converter board M30290T-80FPD etc
This is a converter board for connecting to the MCU foot pattern on the user system. For details, refer to "2.9 Connecting
the User System" (page 30).
(3) Emulator main unit PC7501
The emulator main unit for the M16C family to be used with this product.
(4) Host
machine
This is a personal computer for controlling the emulator.
(5) User
system
This is your application system. This emulator cannot supply the power to the user system. Therefore design your system
so that the user system is powered separately.
Host machine interface
(LPT parallel, USB or LAN)
(1) Emulation probe
M3028BT-EPB
(4) Host machine (3) Emulator main unit
PC7501
(2) Package converter board
M30290T-80FPD etc.
(5) User system
Page 15 of 86
