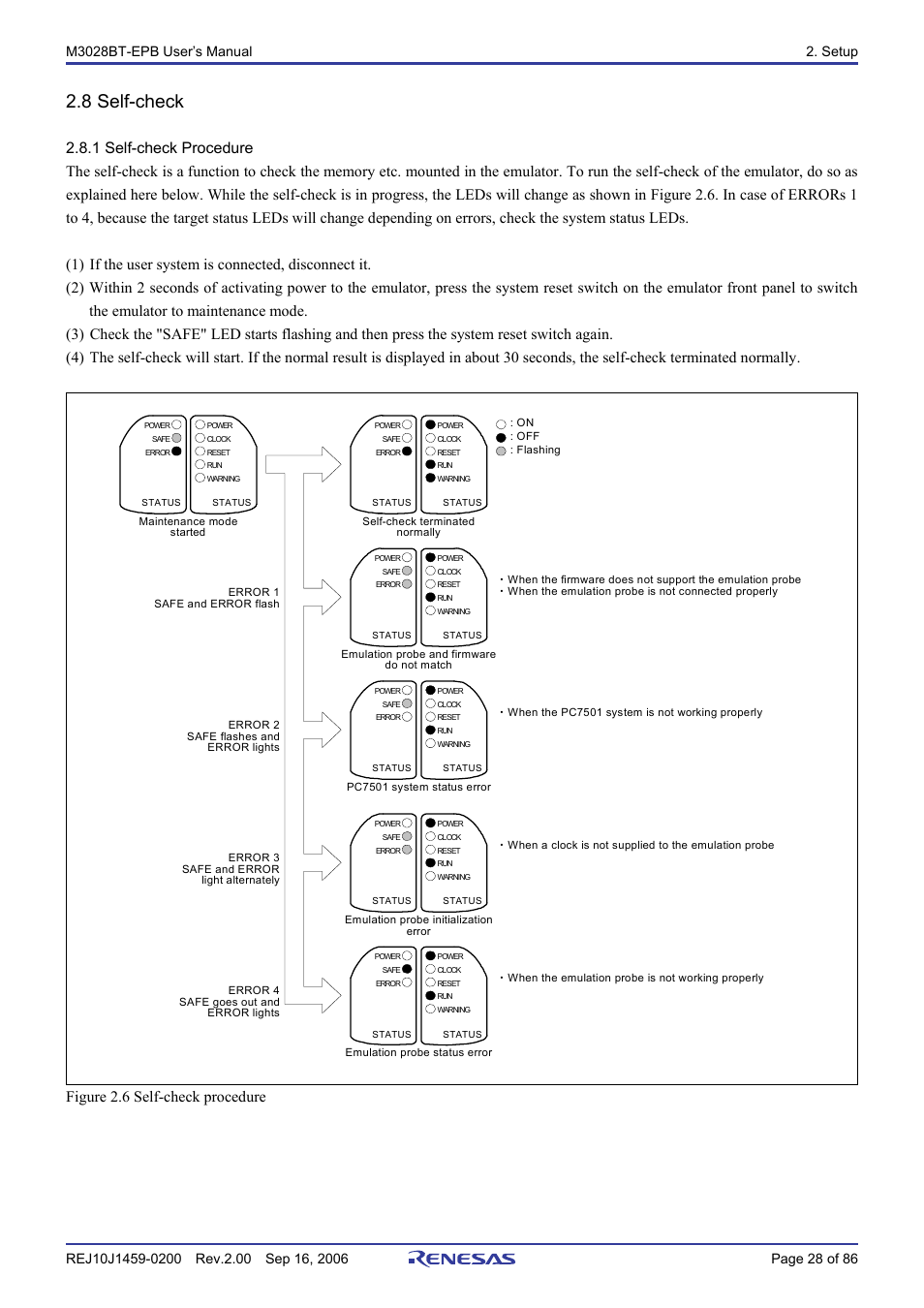

8 self-check, 1 self-check procedure, Figure 2.6 self-check procedure – Renesas M3028BT-EPB User Manual
Page 30
