Chapter 3 Administrative tasks 49

Nortel VPN Router Troubleshooting

This supplies a minimal configuration utility so that you can view the VPN
Router from a Web browser.

In the Web browser, enter the management IP address of the VPN Router.

The Recovery Diskette window appears, which you can use to:

— restore the factory default configuration or the backup configuration

— reformat the hard disk

— apply a new software version to the VPN Router

— perform file maintenance

— view the Event log

— restart the system

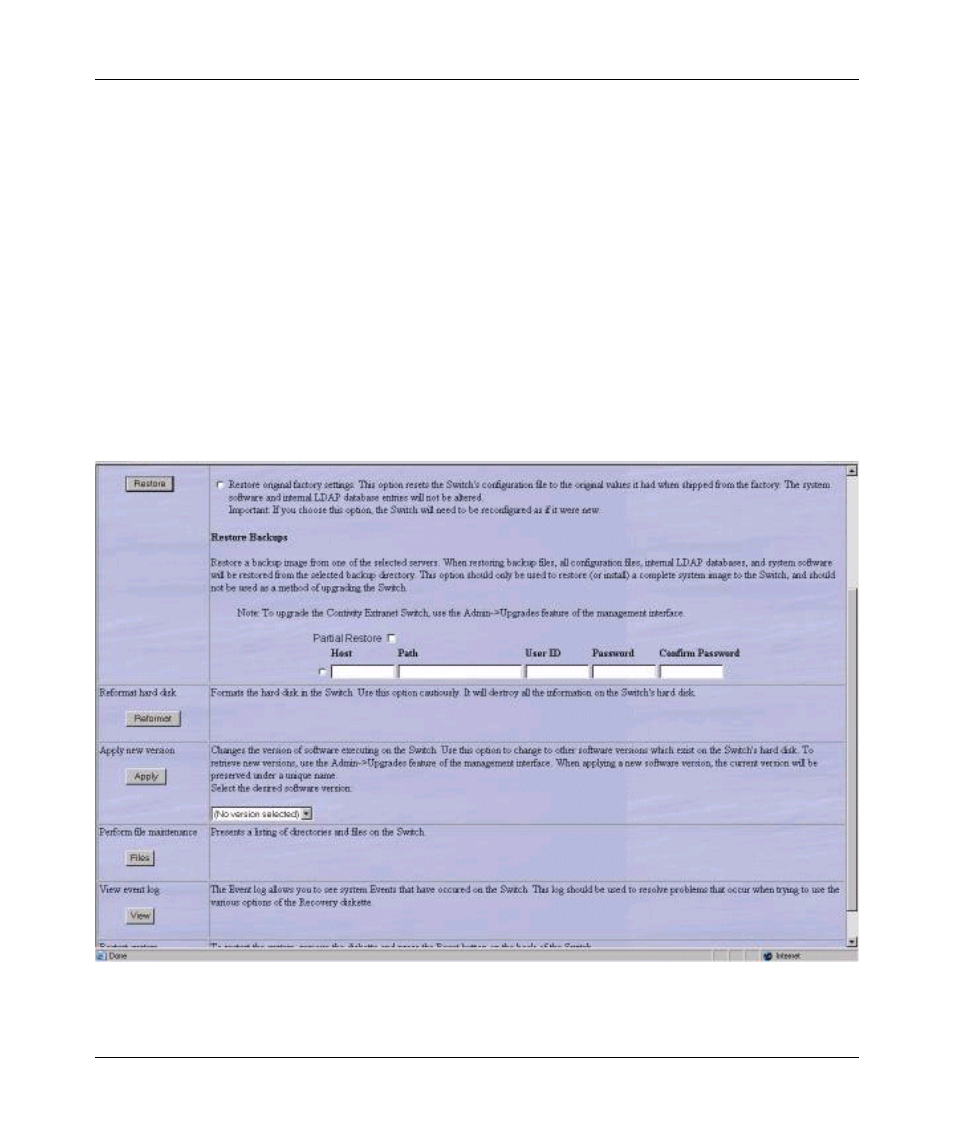

Figure 5 Recovery Diskette window

To restore the factory default configuration or the backup configuration, select
the hard disk drive to which you want to restore the system files, either ide0
(drive 0) or ide1 (drive 1), and then do one of the following:
