42 Chapter 2 Status and logging

NN46110-602

As the event log adds information, the oldest entries are overwritten. The event log
retains the latest 2000 entries and discards old entries when it is refreshed.

To configure event logging:

1

Select Status > Event Log.

The Event Log window appears.

(Figure 2)

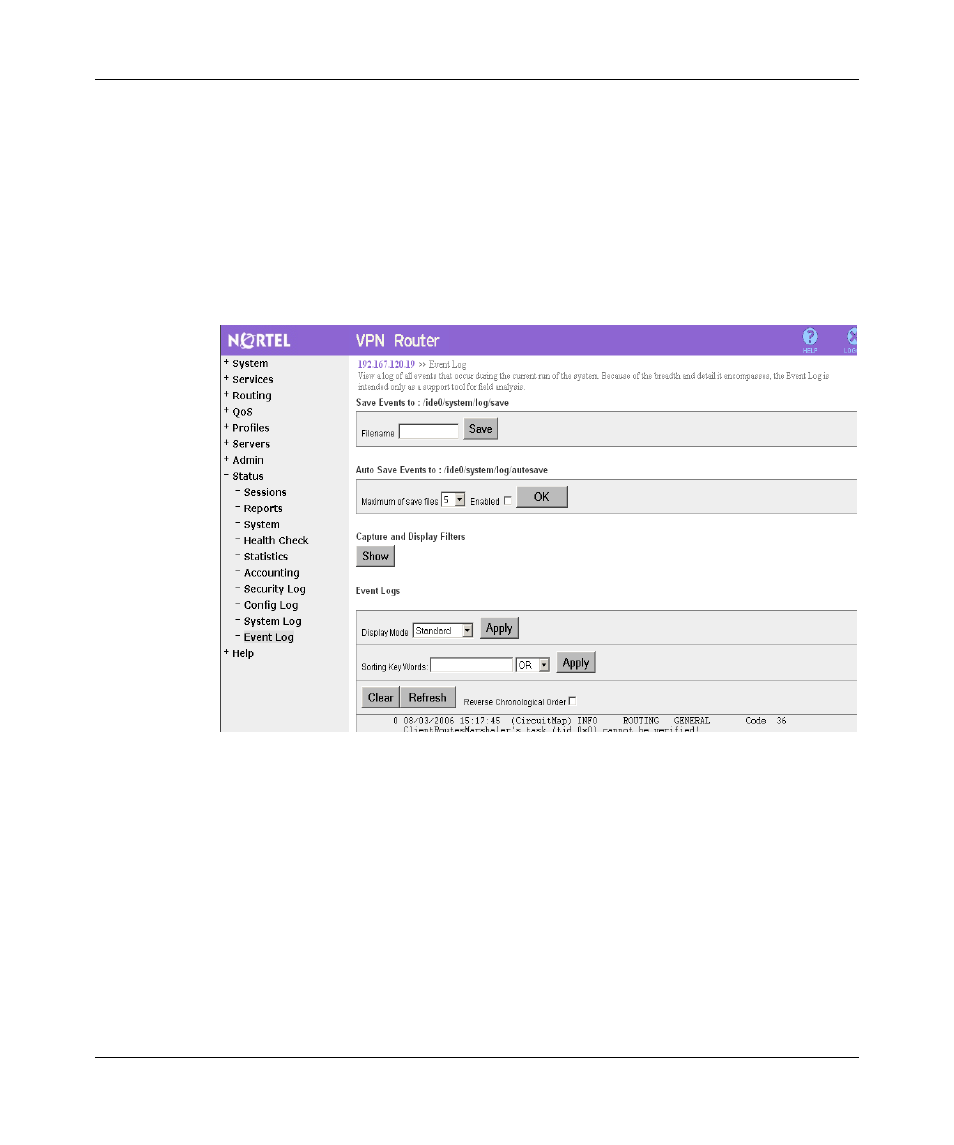

Figure 2 Event logs

2

In the Save Events to section, enter a filename and click Save to manually
save the current event log at any time.

3

In the Auto Save Events to section, select the maximum number of files that
you want to save and click Enabled to automatically save the event log.

4

The Capture and Display filters are hidden by default. Click Show to view or
configure the capture and display filter capabilities.

(Figure 3)
