Printronix P9000 Series - Manual (Page 147)

6-49 Programming
Line Spacing 1/8 Inch (8 lpi)
ASCII Hex Decimal
P-Series SFCC LPI;n
SFCC 0 SFCC 30 SFCC 48
Serial ESC 0 1B 30 27 48
Purpose Specifies continuous line spacing at 1/8-inch increments (8 lpi).
Comment When the 1/8-inch line spacing control code is received, all lines will be
printed at 8 lpi until a new line spacing is selected or power is reset. The conĆ
trol code line spacing selection will override the control panel line spacing setĆ
ting and 8 lpi will be reflected on the display when the 6/8 LPI switch is
pressed.
The value of n can be 6 or 8 only. In LPI mode using P-Series printer protoĆ
col, if n = 8, this command sets line spacing to 1/8 inch. Values of n other than
6 or 8 will cause an error message (Command Line Error Messages are listed
on page 6-3).

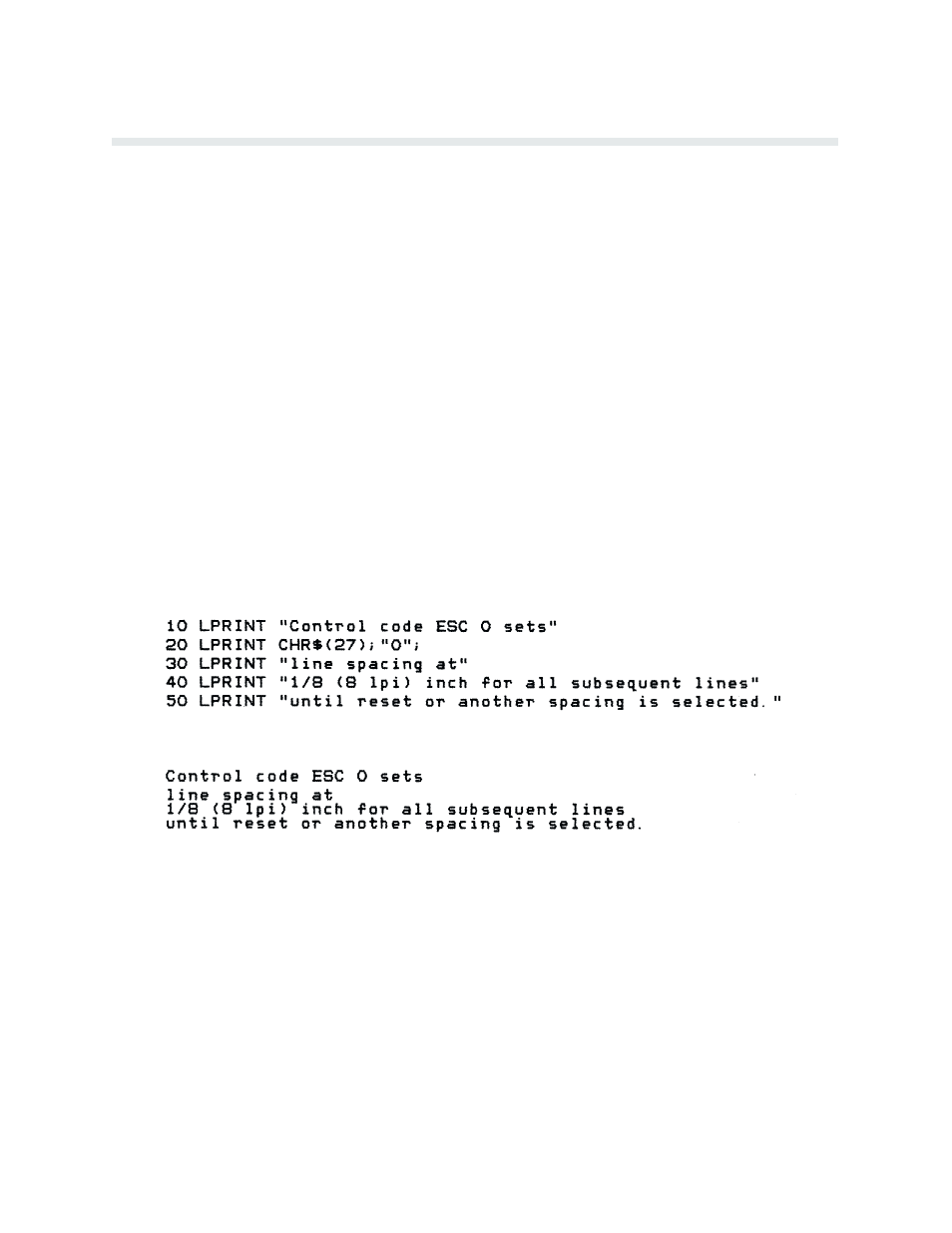

Example The following example illustrates 1/8-inch line spacing.
