Applications
3-2 9161-A2-GH30-30 April 1998
T1 Access Unit with High Speed Data

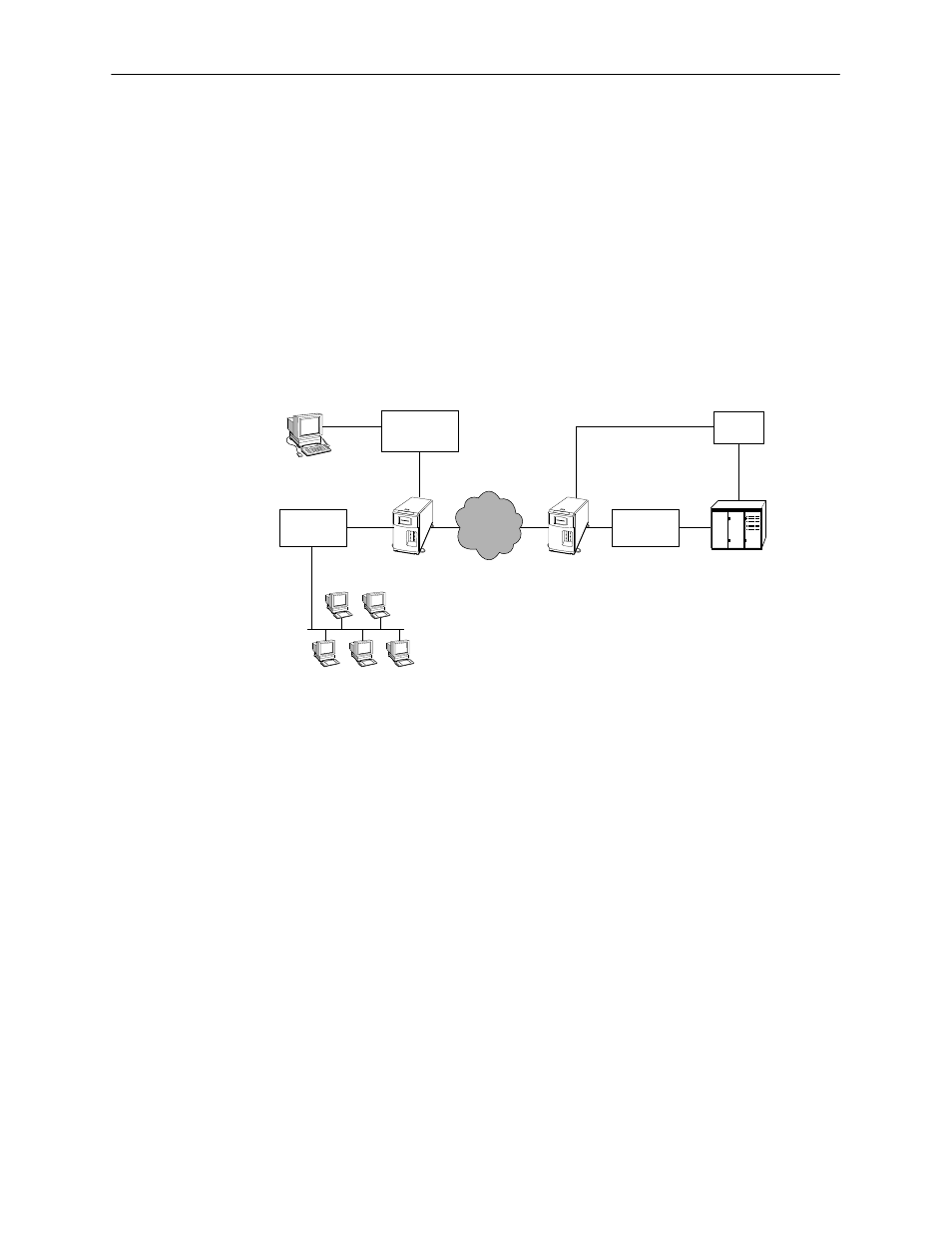

This application supports two ports of high speed data. The following diagram
depicts a router and a mainframe.
The data moving through the FEP and the cluster controller is heritage data that
is not available on the LAN. Because the T1 access unit includes two data ports,
the router-based data can easily be added to the network without disrupting the
existing network operations.
The data rates available to the two applications can be easily changed. This
allows the router connection to increase in speed. It also allows the FEP-based
data to reduce its data rate as the amount of data transmitted on this route
declines naturally over time.
Terminal
Router Router
Cluster
Controller
FEP
Mainframe
496-15189
T1 Access
Unit
T1 Access
Unit
T1 Access Unit with High Speed Data
