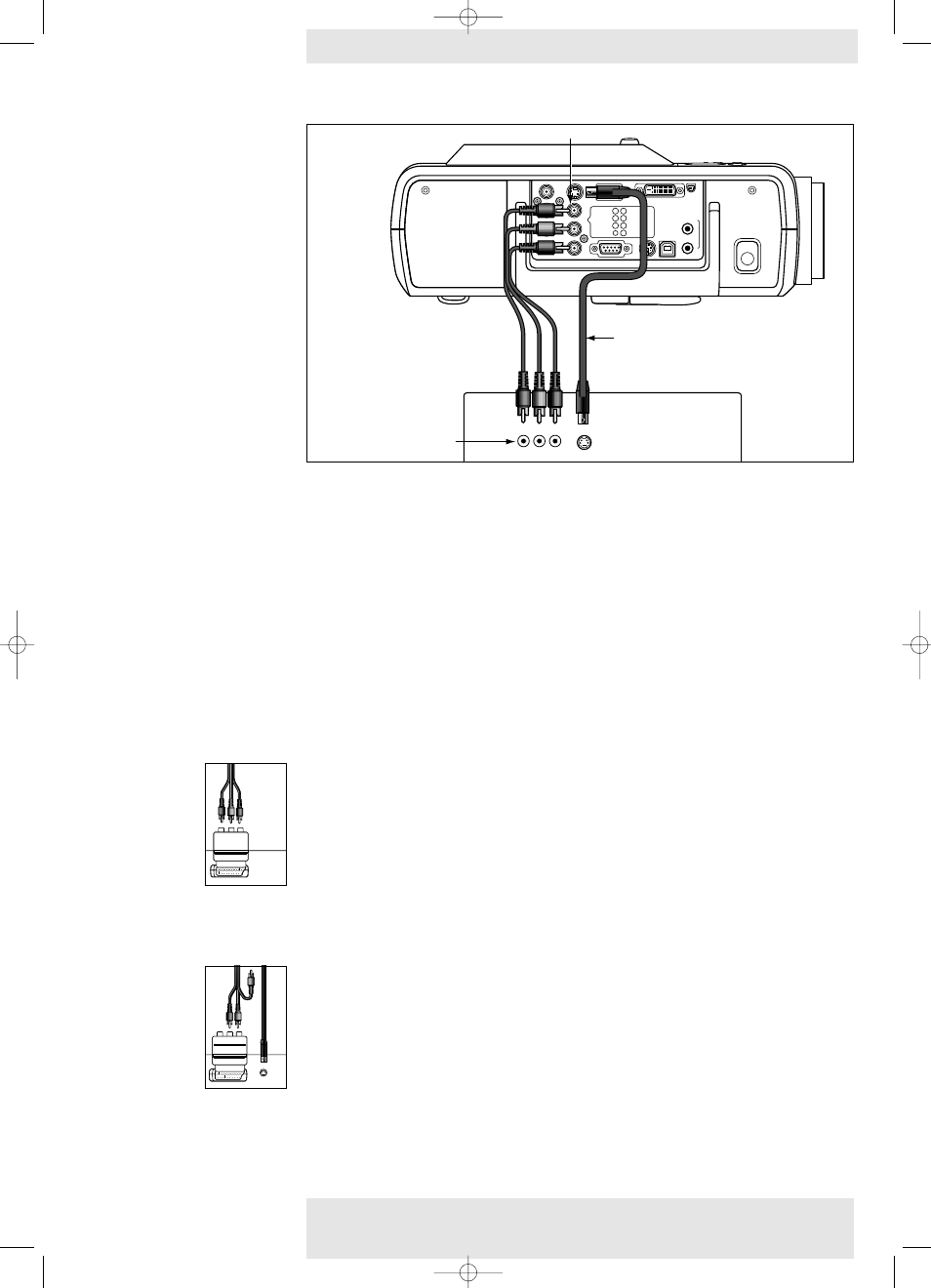

1 Connect the Video (out) socket of a VCR, Laser Disc player, video camera or TV to the
CVBS (Video in) socket of the projector.
For this, use the video/audio connection cable (1a) supplied.
2 Connect the Audio out L/R sockets of the VCR, Laser Disc player, video camera or TV to
the Video/Audio (in) L/R sockets of the projector.
For this, use the audio/video connection cable (1b) supplied.
1 Connect the S-Video (out) socket of a S-VHS video recorder, Laser Disc player, video
camera or TV to the S-Video (in) socket of the projector.
For this use the S-Video connection cable (2) supplied.
2 Connect the Audio out L/R sockets of the S-VHS video recorder, Laser Disc player, video
camera or TV to
the Video/Audio (in) L/R sockets of the projector.
For this, use audio/video connection cable (1b) supplied.
CVBS (Video)
1 Connect the Scart/RCA Audio Video adapter supplied to the Scart connector of the VCR,
Laser Disc player, video camera or TV.
2 Plug the video/audio connection cable supplied into both the adapter and the CVBS and
Video/Audio (in) L/R sockets sockets of the projector.
S-VHS
3
Plug the S-Video connection cable supplied into the VCR and the S-Video socket of the
projector.
CVBS (Video)
S-VHS (S-Video)
Scart connection
Scart adapter
(not for USA version)
Scart adapter
(not for USA version)
4. Installation
Philips Multimedia Projector
20 English User guide cClear
Audio L
Audio R
Video
Video Audio Out
Pr/Cr
Data 2 Data 1 (DVI)
Data Audio
USB/USB Audio PS/2 RS-232
1
Service
S-Video
Pb/Cb B
G CVBS Y
R
Audio L
Audio R
Video
Video
Audio
Out
Pr/Cr
Data 2 Data 1 (DVI)
USB/USB Audio PS/2 RS-232
Service
S-Video
Pb/Cb B
G CVBS Y
R
L Audio R out S-Video out
VCR
Video out
1a 2 S-VHS (S-Video) only
CVBS only CVBS (Video) only
CVBS (Video) only
1b
Data Audio
1
2
S-Video
Connecting to video equipment
