Data source connections
Input socket to connect to the analog (VGA) Data out terminal of a computer.
Input socket to connect to the digital (DVI) Data out terminal of a computer.
Input sockets to connect to the Audio out terminal of the computer connected to Data 2 or
Data 1(DVI).
In-/Output socket to connect a PC or Apple Macintosh computer equipped with a USB
downlink connection. When USB connection is used the mouse cursor on the connected
computer can be controlled via the projector remote control.
Audio information from the computer will be heard via the projector speaker.
When the bSure2 Brilliance projector is connected to the computer via the USB socket,
In-/Output socket to connect a PC or Apple Macintosh computer equipped with a PS/2
connection. When PS/2 connection is used the mouse cursor on the connected computer can
be controlled via the projector remote control.
Input socket to connect to the RS-232 output socket of RS-232 control systems. When RS-232
connection is used the projector can be operated via the RS-232 control system.
Video source connections
Input sockets to connect to the Audio out sockets of a video recorder, laser disc player, video
camera or TV with A/V output socket.
Input socket to connect to the Video out socket of a video recorder, Laser Disc player, video
camera, DVD player, or TV with AV output socket.
This socket can be connected to CVBS output sockets.
Output socket to connect to the Line Input sockets of an amplifier or stereo system.
Input sockets to connect to DVD- and HDTV-video equipment
These sockets can be connected to the following output sockets:
RGB-Y, YCbCr, YPbPr
(480p, 720p, 1080 i).
Input socket to connect to the S-Video out socket of a S-VHS video recorder, a VCR,
Laser Disc player, DVD player, video camera or TV with AV output socket.
This socket can be connected to a S-Video/S-VHS (Y/C) output socket.
Data 2 1
Data 1 (DVI) 2
Data Audio 1/2 3
USB (upstream) 4
Note
PS/2 5
RS-232 6
Video Audio L/R 7
CVBS (Video) 8
Audio Out 9
Component in
(R/Pr/Cr - G/Y - B/Pb/Cb) 0
S-Video !
2. Functional overview
Philips Multimedia Projector
11 English User guide cClear
Audio L
Audio R Video
Video Audio
Out
Pr/Cr
Data 2 Data 1 (DVI)
Data Audio
USB/USB Audio PS/2 RS-232
1
2
Service
S-Video
Pb/Cb B
G CVBS Y
R
Audio L
Audio R Video
Video Audio
Out
Pr/Cr
Data 2 Data 1 (DVI)
Data Audio
USB PS/2 RS-232
1
2
S-Video
Pb/Cb B
G CVBS Y
R
8 7 9
0
5
1 2
6
!
4 3

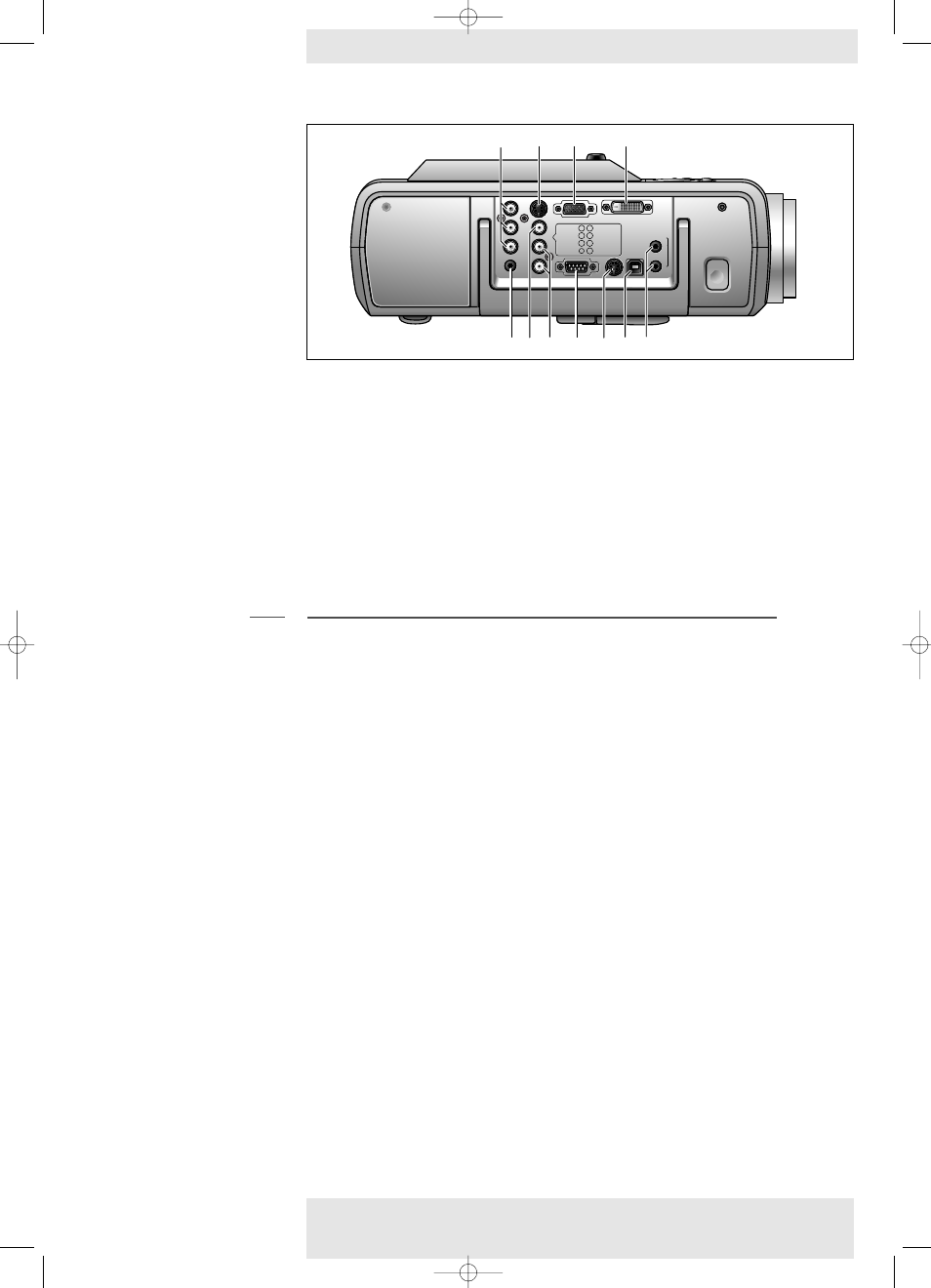

< Connections
