USB Connection
The display desk stand contains an integrated, self-powered USB hub that allows
you to attach USB devices (such as a keyboard or mouse) to the Dome C3 display
rather than to a computer.
To use the USB ports
1 Use a Type A-B USB cable to connect the USB B port on the desk stand to
the USB A port on your USB-compliant computer or other hub.
2 Connect USB-compliant peripherals to the USB A ports on the desk stand.
B A
Legend
USB tips
To activate the USB hub function,
connect the display to a USB-
compliant computer or another
hub with the Type A-B USB cable.
Use USB devices connected to the
display even when the display is in
power-saving mode.
Use USB devices connected to the
display even when the display is
unplugged from the power source.
The USB hub on the desk stand is
powered by the computer.
B

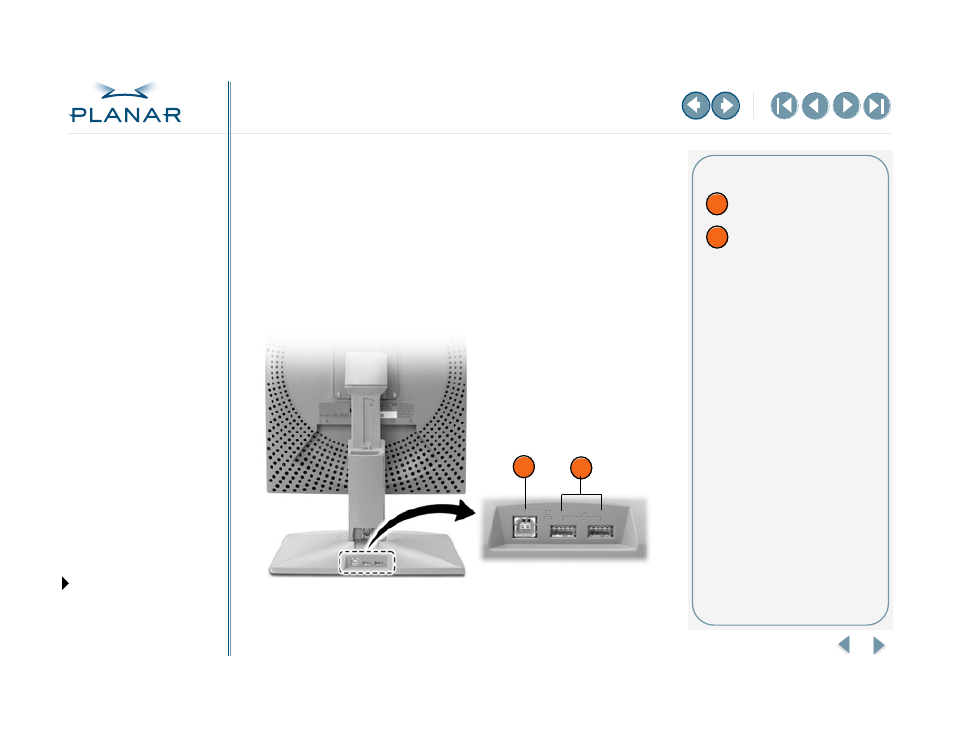

A USB A (downstream) port
USB B (upstream) port
