18 Dome C3 Display
Video Modes
Resolutions expressed in pixels (W x H). Single desktop requires dual displays.
DVI 1.0 Interface
The Dome C3 display connects to the DX board via a DVI 1.0 interface. Power input is
12V ±5% (100 W). See details of the 8-pin DIN power connector to the right.
CX display Resolution option Orientation Palette option Bits per pixel
C3 gray 1536 x 2048
2048 x 1536
3072 x 2048
4096 x 1536 Portrait
Landscape
Portrait, single desktop
Landscape, single desktop Dynamic gray
Nonlinear gray
Static gray 8
C3 color 1536 x 2048
2048 x 1536
3072 x 2048
4096 x 1536 Portrait
Landscape
Portrait, single desktop
Landscape, single desktop Color 8
C3 gray or
color 1536 x 2048
2048 x 1536
3072 x 2048
4096 x 1536 Portrait
Landscape
Portrait, single desktop
Landscape, single desktop True color 32
VCC 7
VCC 8
1 GND
VCC 5 3 GND
2 GND VCC 6
4 GND

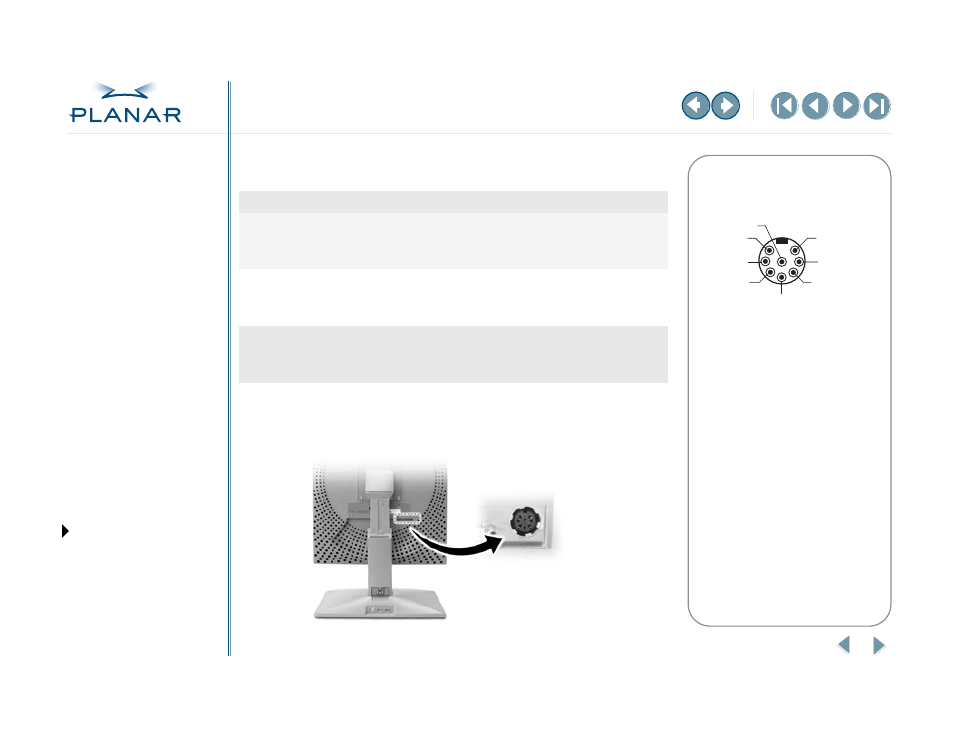

DIN connector
Details of the 8-pin DIN connector.
