8 Dome C3 Display
Install the Display Controller
Before you begin, choose a well-ventilated location with an adequate amount of space. Excessive heat cannot
dissipate when display vents are blocked. Make sure a grounded AC outlet is within easy reach.
When installing multiple DX display controllers, install all boards before you install the display driver.
Turn your computer off. Leave the power cord plugged into the grounded outlet.
To install the display controller

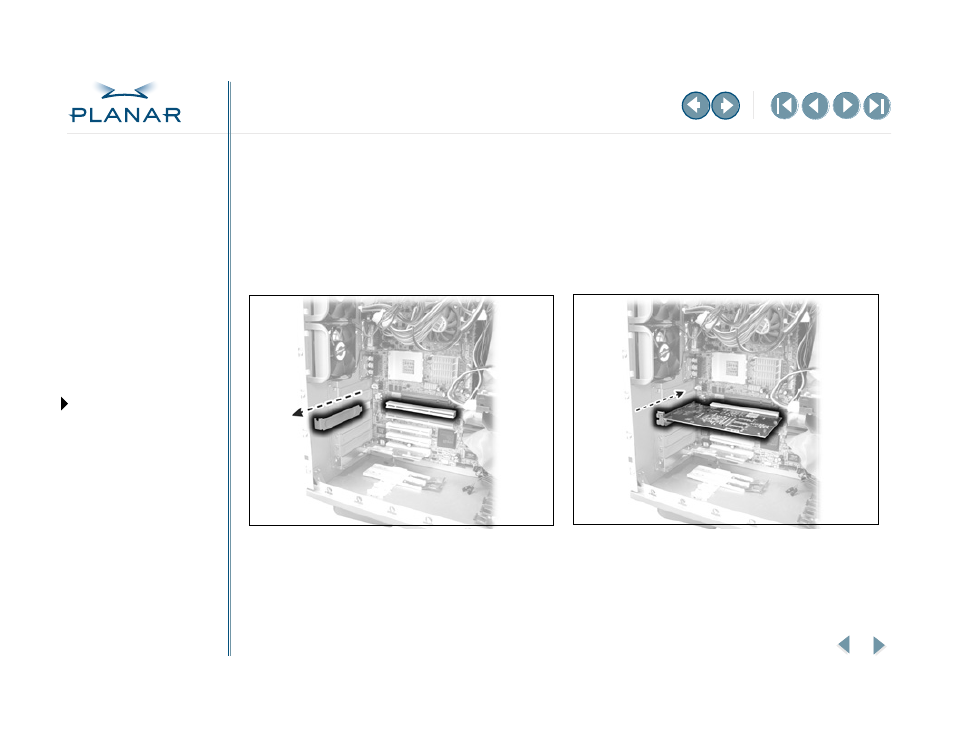

1 Remove the blank bracket from an available PCI slot. 2 Insert the display controller into the slot, align the
connector pins, and press the board down until it is
firmly seated. Secure the mounting bracket.
