Dome C3 Display
LED Status Lights
The two LEDs on the back panel provide information about the display.
• LED A describes the digital-link status between the DX display controller and the interface.
• LED B describes the display-panel status. it shows any faults currently in the panel.
Power-up sequence information from LED
LED A
Action/Sequence
LED B
Description
Solid green
Initial power-on
Solid green
One (1) second of solid green to verify
the green LED works.
Solid red
One (1) second after power-on
Solid red
One (1) second of solid red to verify the
red LED works.
Solid yellow
Two seconds after power-on
Solid yellow
One (1) second of solid yellow to verify
the yellow LED works.
Flashing red
Link working, unrecognized sync
information
Flashing red
Internal fatal fault was discovered during
power-on self-test.
Flashing yellow
n seconds after power-on
Flashing yellow
Service fault was discovered during
power-on self-test.

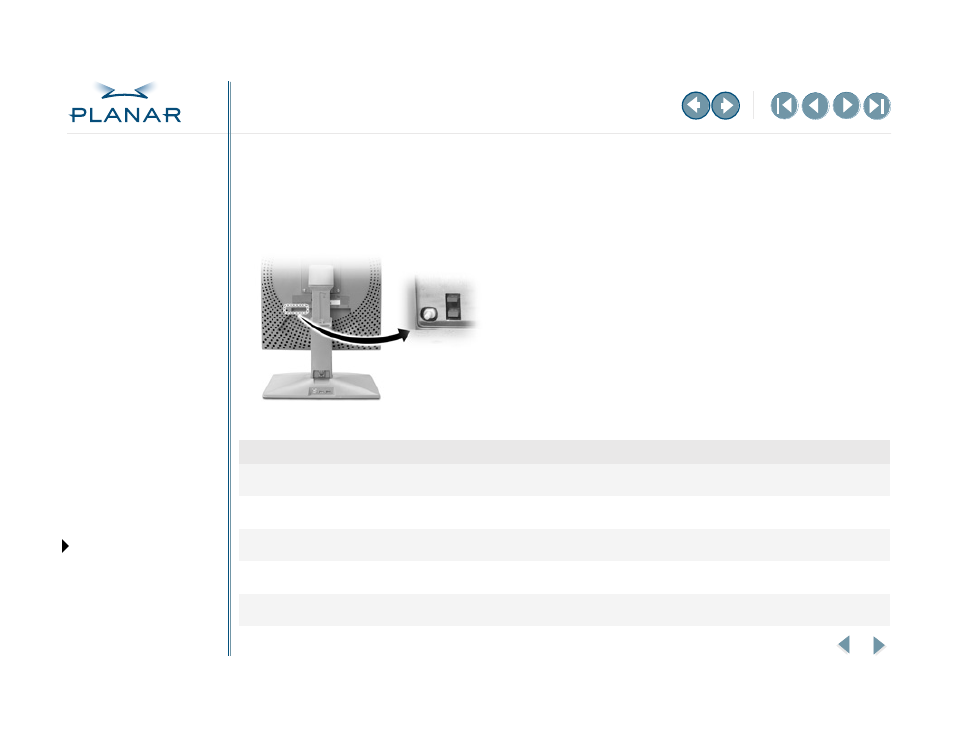

Reset button (left) and LEDs on interface plate
LED B
LED A, top
