Loading custom-size paper
You can load up to 100 sheets of custom-size paper at a time.
1 Load paper with the print side facing you.
2 Make sure:
• The paper size fits within these dimensions:
Width:
– 76.0–216.0 mm
– 3.0–8.5 inches
Length:
– 127.0–432.0 mm
– 5.0–17.0 inches
• The stack height does not exceed 10 mm.
• The paper is loaded in the center of the paper support.
• The paper guides rest against the edges of the paper.

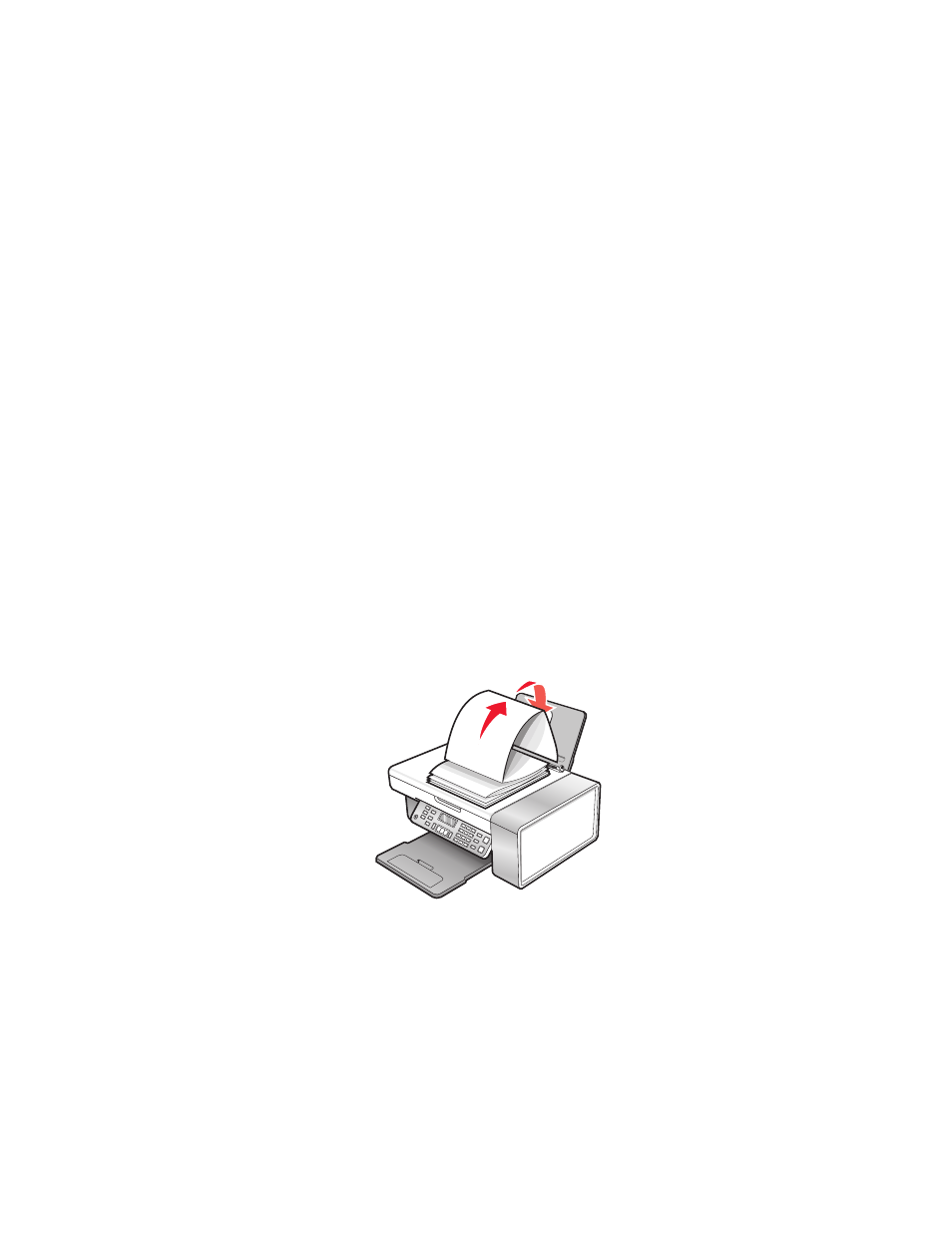

Loading banner paper
You can load up to 20 sheets of banner paper at a time.
1 Remove all paper from the paper support before loading the banner paper.
2 Tear off only the number of pages needed to print the banner.
3 Place the required stack of banner paper on the top cover.
4 Feed the leading edge of the banner paper into the printer first.
5 Make sure:
• The paper is loaded in the center of the paper support.
• The paper guides rest against the edges of the paper.
Loading paper and original documents
