C O M M A N D R E F E R E N C E
LDX-3232 Device-Dependent Command Reference
04_06 LDX-3232 65
C H A P T E R
4
The LASer:LIMit:I4 command sets the LASER current limit value for the 4000 mA range
on the LDX-3232.

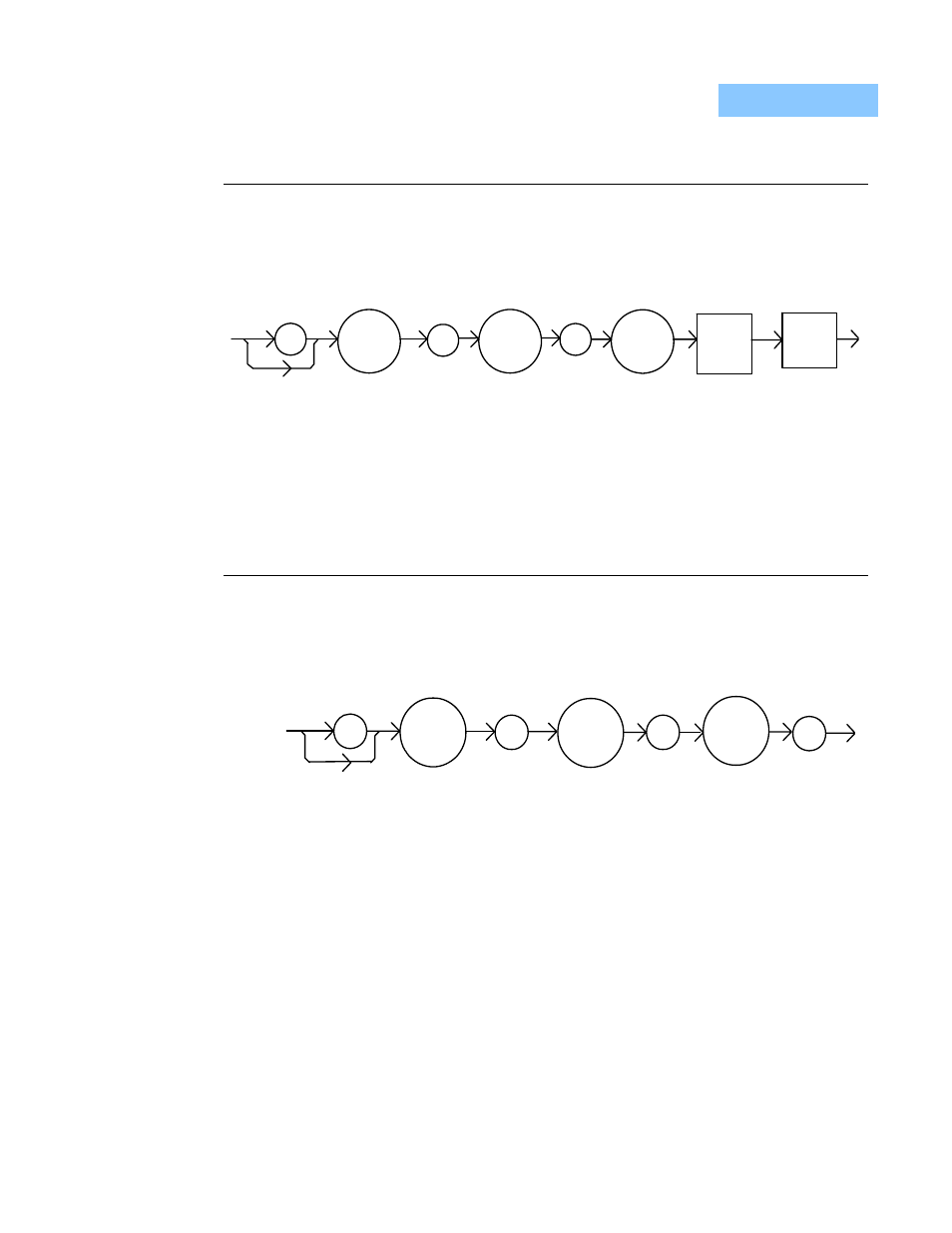

Syntax Diagram
Parameters An that represents the LASER limit current, in mA.
Notes The current limit is in effect in all modes of operation (ILBW, IHBW, or P). The current
limit in use depends on the LASER output range selection.
In local operation, the limit current is entered by selecting LIM I parameter, pressing and
holding in the (PARAMETER) SET switch, adjusting the knob until the desired value is
displayed, and then releasing the SET switch.
Examples "LAS:LIM:I4 1800" -action: the LASER current limit is set to 1800 mA.
":Laser:Limit:I4 160" -action: the LASER current limit is set to 160 mA.
The LASer:LIMit:I4? query returns the value of the LASER current limit for the 4000 mA
on the LDX-3232.
Syntax Diagram
- where the response is the current limit value for the 4000 mA range.
Notes The current limit is in effect in all modes of operation (ILBW, IHBW, or P). The current
limit in use depends on the LASER output range selection.
Examples "LAS:LIM:I4?" -response: 400, means the laser current limit is 400 mA.
"Laser:LIM:I4?" -response: 1500, means the laser current limit is 1500 mA.
LASer:LIMit:I4 F RONT P ANEL
R EMOTE
LASer:LIMit:I4? F RONT P ANEL
R EMOTE
:
LAS
space> value>
: LIM : I4
: LAS : LIM I4
:
?
