LDX-3232 Device-Dependent Command Reference
54 LDX-3232
C H A P T E R
4
The LASer:DISplay:SET? query returns the status of the setpoint display mode.

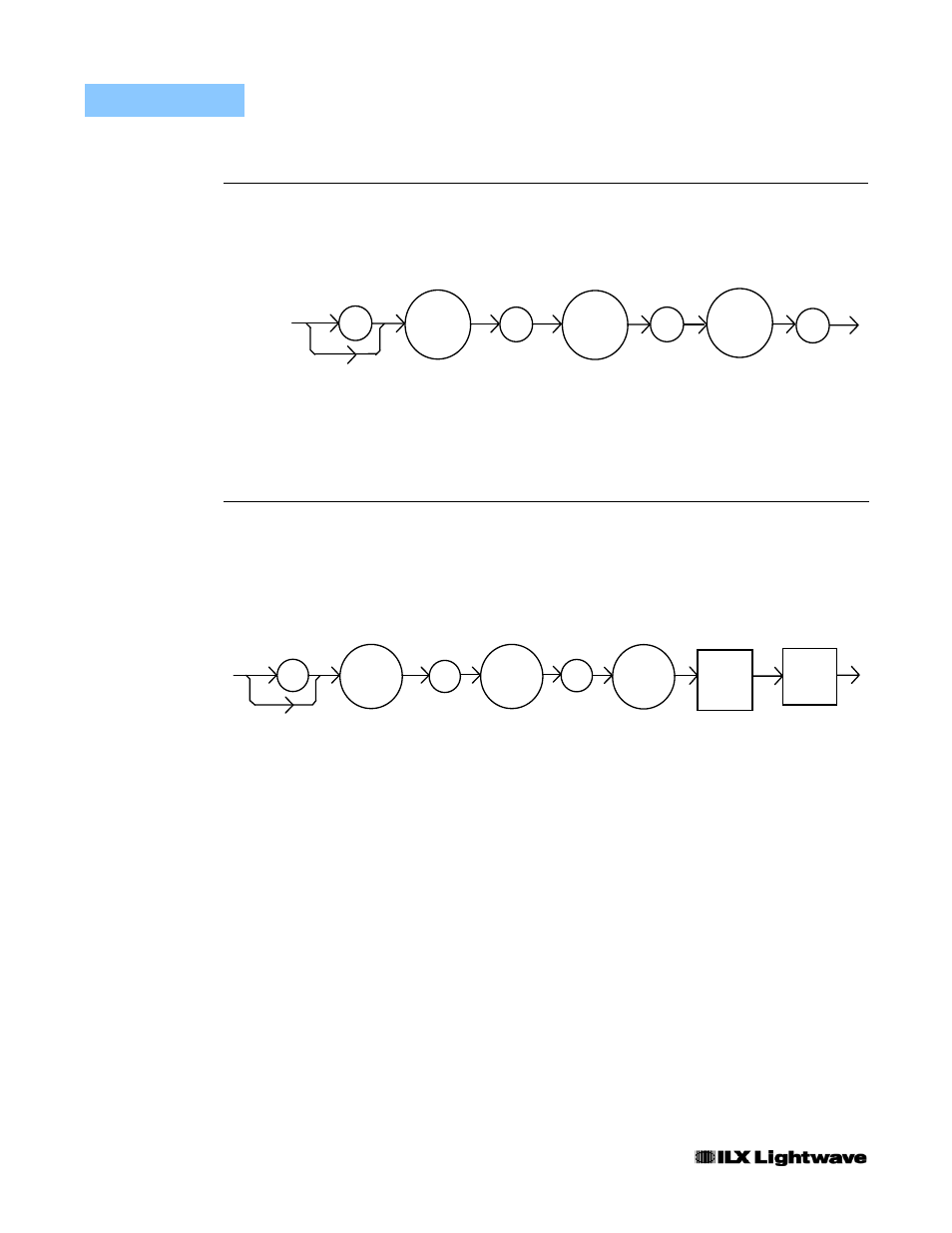

Syntax Diagram
- where the response is 0 or 1.
Notes The setpoint display will not time out when REMOTE operation is used. (It will be
continuously displayed.)
Examples "LAS:DISPLAY:SET?" -response: 0, means the setpoint is not shown on the display.
"Las:Dis:Set?" -response: 1, means the setpoint value is shown on the display.
The LASer:ENABle:COND command sets the condition status enable register of the
LASER operations for summary (in bit 3 of the status byte) and generation of service
requests.
Syntax Diagram
Parameters An whose sum represents the enabled bits:
Notes The enabled or disabled LASER conditions can be read by using the
LASer:ENABle:COND? query.
The LASER condition status can be monitored by the LASer:COND? query. If any of the
enabled LASER conditions are true, bit 3 of the status byte register will be set.
The enable registers normally retain their values at power-up (as they were at power-
down) unless the power-on status clear flag is set true (for more information see the
*PSC definition, in the GPIB-IEEE488 specification).
LASer:DISplay:SET? F RONT P ANEL
R EMOTE
LASer:ENABle:COND F RONT P ANEL
R EMOTE
1 LASER Current Limit 256 Output is shorted
2 LASER Voltage Limit 512 Output is outside tolerance limit
4 N/A 1024 Output on/off state
8 Power limit 2048 Ready for calibration data state
16 Interlock disabled 4096 N/A
32 N/A 8192 N/A
64 Compliance Voltage Limit 16384 N/A
128 Open circuit 32768 N/A
: LAS : DIS SET
:
?
:
LAS
space> value>
: ENAB : COND
