C O M M A N D R E F E R E N C E
LDX-3232 Device-Dependent Command Reference
04_06 LDX-3232 55
C H A P T E R
4
Examples "LAS:ENAB:COND 129" -action: enables the LASER status condition register so that the
Open circuit and LASER current limit conditions will be summarized in the status byte
(bit 3).
Laser:Enable:Cond #H0F9B" - action: enables the LASER status condition register so
that any and all of the above conditions will be reported in the status byte register (bit 3).
The LASer:ENABle:COND? query returns the value of the status condition enable
register of the LASER operations.

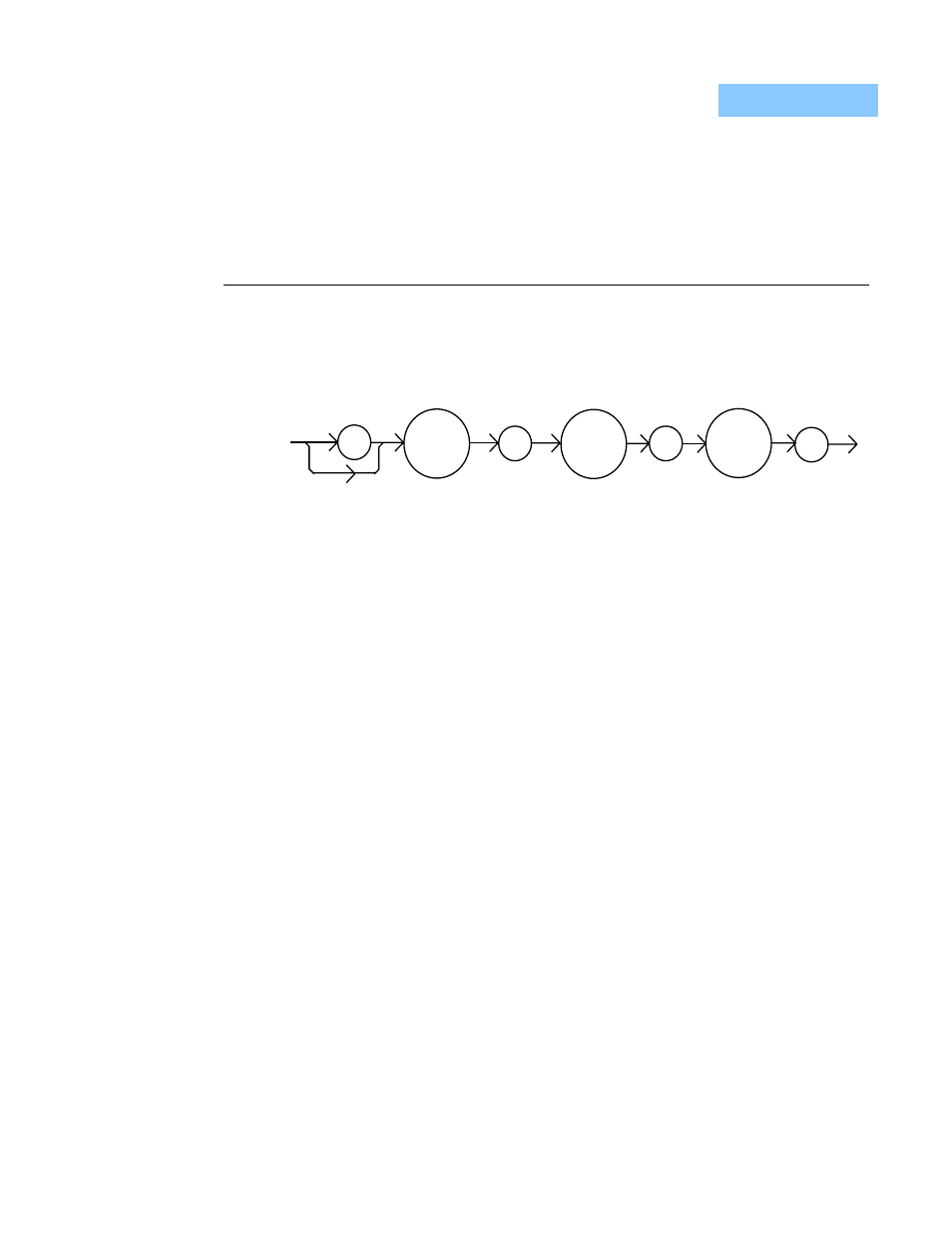

Syntax Diagram
- where the response is the sum of the following:
Notes The enabled LASER conditions can be set by using the LASer:ENABle:COND
command.
The LASER condition status can be monitored by the LASer:COND? query.
Examples "LAS:ENAB:COND?" -response: 17, means that the Laser Current Limit and Interlock
disabled LASER conditions will be reported (in summarized form) to the status byte
(bit 3).
"Radix Hex; Laser:Enable:Cond?" -response: #H0F9B, means that all of the above
conditions will be reported (in summarized form) to the status byte (bit 3).
LASer:ENABle:COND? F RONT P ANEL
R EMOTE
1 LASER Current Limit 256 Output is shorted
2 LASER Voltage Limit 512 Output changed to be in/out of tolerance
4 N/A 1024 Output on/off state
8 Power limit 2048 Ready for calibration data state
16 Interlock disabled 4096 N/A
32 N/A 8192 N/A
64 Compliance Voltage Limit 16384 N/A
128 Open circuit 32768 N/A
:
LAS : ENAB COND
:
?
