This section contains all of the device-dependent commands for the LDX-3232
High Compliance Current Source, listed in alphabetical order. Sub-sections for
each path are presented, listing the commands that are legal for that path. See
Figure 3.1 for command path tree structure.

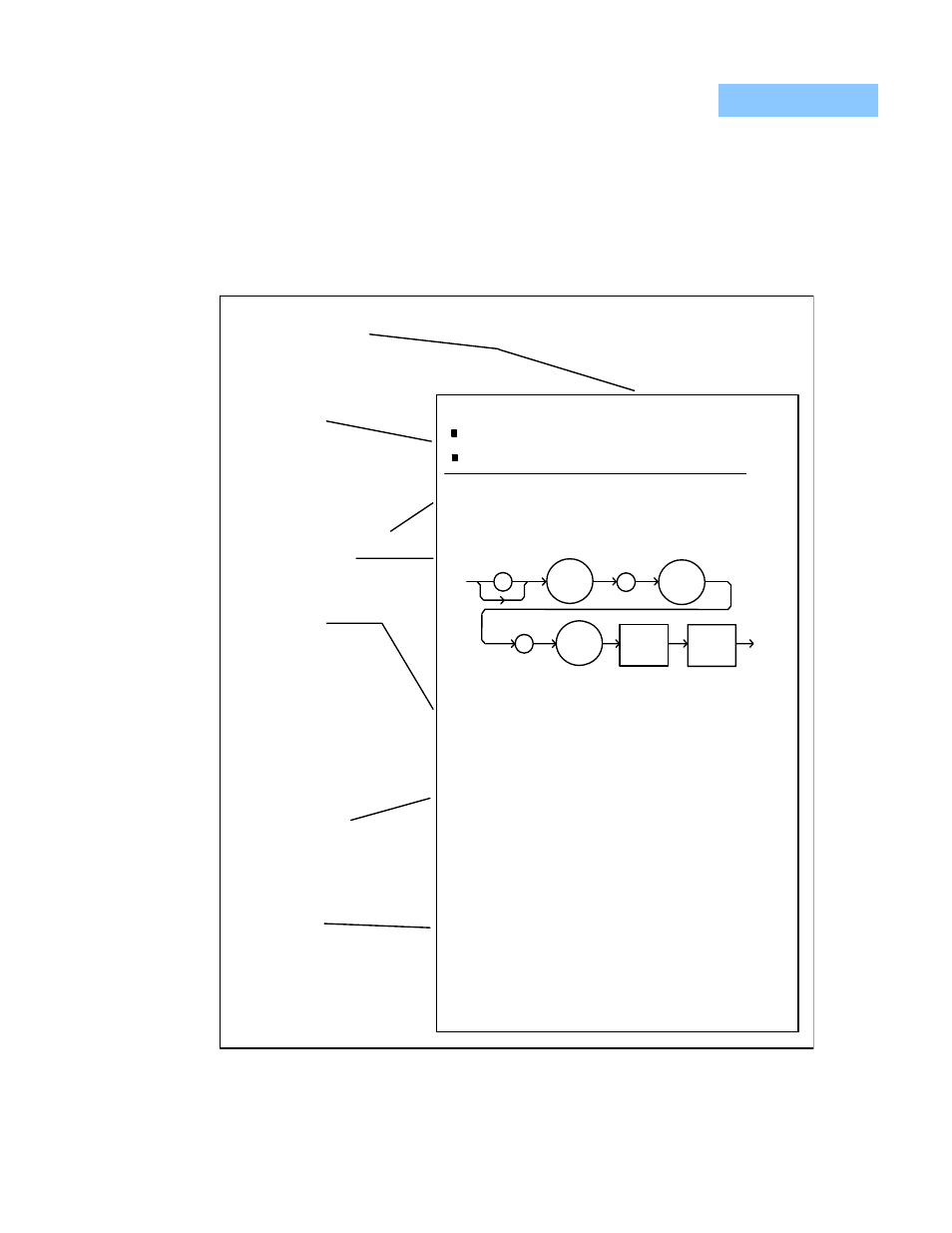

Figure 4.1 Command Description Format
Command Path:Name
Required letters are shown in
upper case; lower case letters
are optional.
Front Panel/
A solid box means the command
can be executed in that mode.
Command mnemonics in front
panel (local) mode may vary.
Command Description
Syntax Diagram
(For Remote Commands)
Parameters
Tells what parameters are
expected, and their type.
An refers to a
flexible numeric notation
(IEEE-488.2). Integer,
exponential, or floating point
may be used with the decimal
radix. Alternate radices may be
selected in remote operation.
Points of Interest
Has special information
about the command.
Examples
Shows typical statements
using the command.
Front Panel
Remote
LASer:LIMit:I
limit value.
SYNTAX DIAGRAM
space>
< nrf
value >
:
: : LAS LIM
PARAMETERS An that represents the LASER limit
current, in mA.
POINTS OF
INTEREST
The current limit is in effect in all modes of
operation of the laser output.
In local operation, the limit current is entered
by selecting the LIM I parameter, pressing and
holding in the (PARAMETER) SET switch,
adjusting the ADJUST knob until the desired value
is displayed, and then releasing the SET switch.
EXAMPLES
Remote Execution
I2
"Las:Lim:I2 100" - action: the LASER current limit
is set to 100.0 mA.
"LAS:LIM:I4 3000" - action: the LASER current limit
is set to 3000.0 mA.
1
The LASer:LIMit:I2 command sets the laser current
