C O M M A N D R E F E R E N C E
LDX-3232 Device-Dependent Command Reference
04_06 LDX-3232 51
C H A P T E R
4
The LASer:DISplay:MDI command sets the laser display to show the monitor photodiode
current measurement.

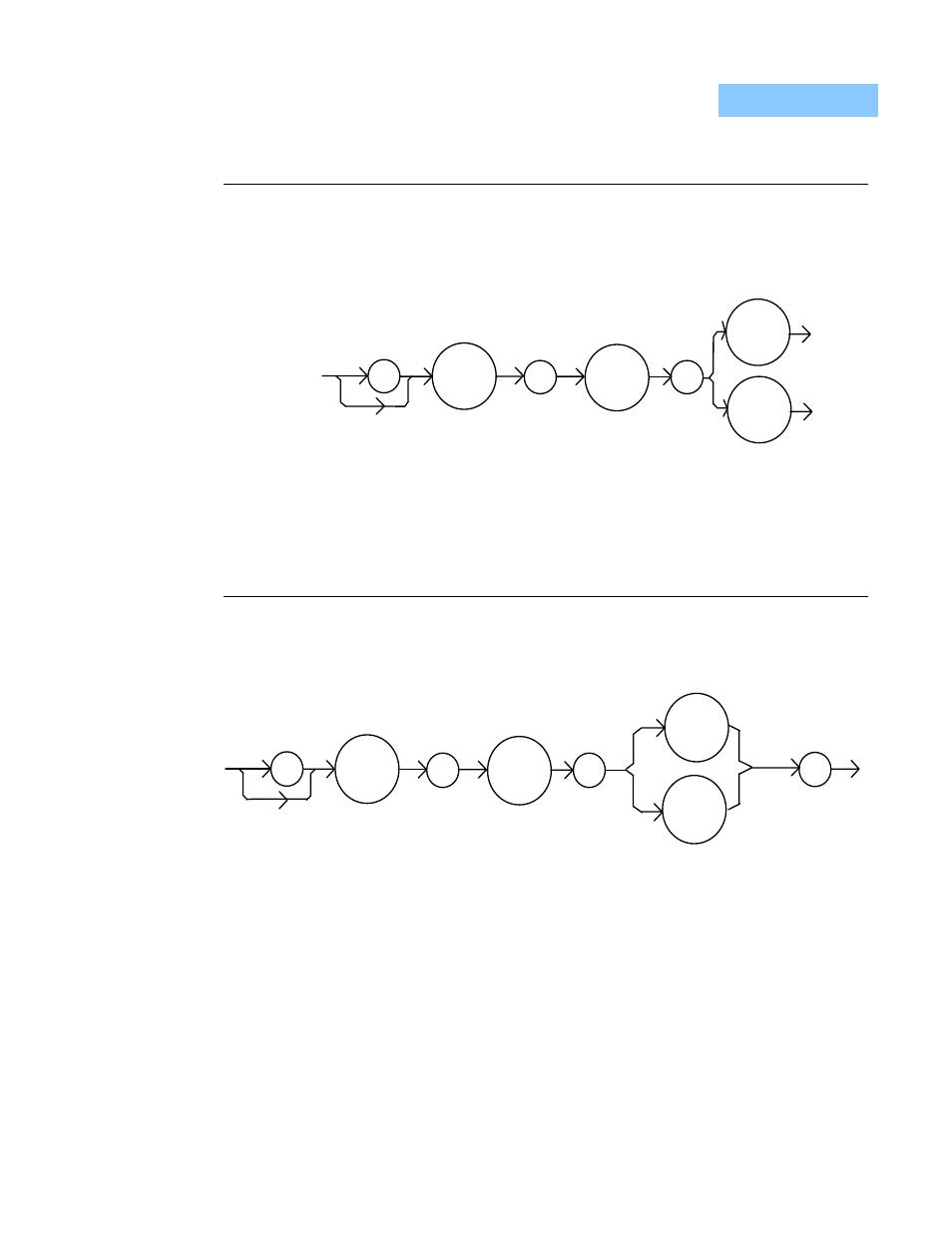

Syntax Diagram
Parameters None
Notes The MDI measurement display is turned off automatically when another display selection
is enabled.
Examples "LAS:DIS:MDI" -action: enables the display for photodiode current measurement values.
Laser:Disp:Mdi" -action: enables the LASER display for photodiode current
measurement values.
The LASer:DISplay:MDI? query returns the status of the (LASER DISPLAY) I
PD
switch.
Syntax Diagram
- where the response is 0 or 1
Notes In local operation, the status of the MDI measurement mode is indicated by the
enunciator next to the display (µA will be illuminated and not blinking when the display is
in MDI measurement mode).
Examples "LAS:DIS:MDI?" -response: 0, means that the laser photodiode monitor current
measurement is not displayed.
"Las:dis:MDI?" -response: 1, means that the monitor photodiode current measurement
is displayed.
LASer:DISplay:MDI F RONT P ANEL
R EMOTE
LASer:DISplay:MDI? F RONT P ANEL
R EMOTE
: LAS : : DIS
IPD
MDI
:
LAS :
DIS
IPD
: ?
MDI
