Before Making Copies 2
bizhub 750/600 2-5
Before Making C
o
pies
Chapter 2

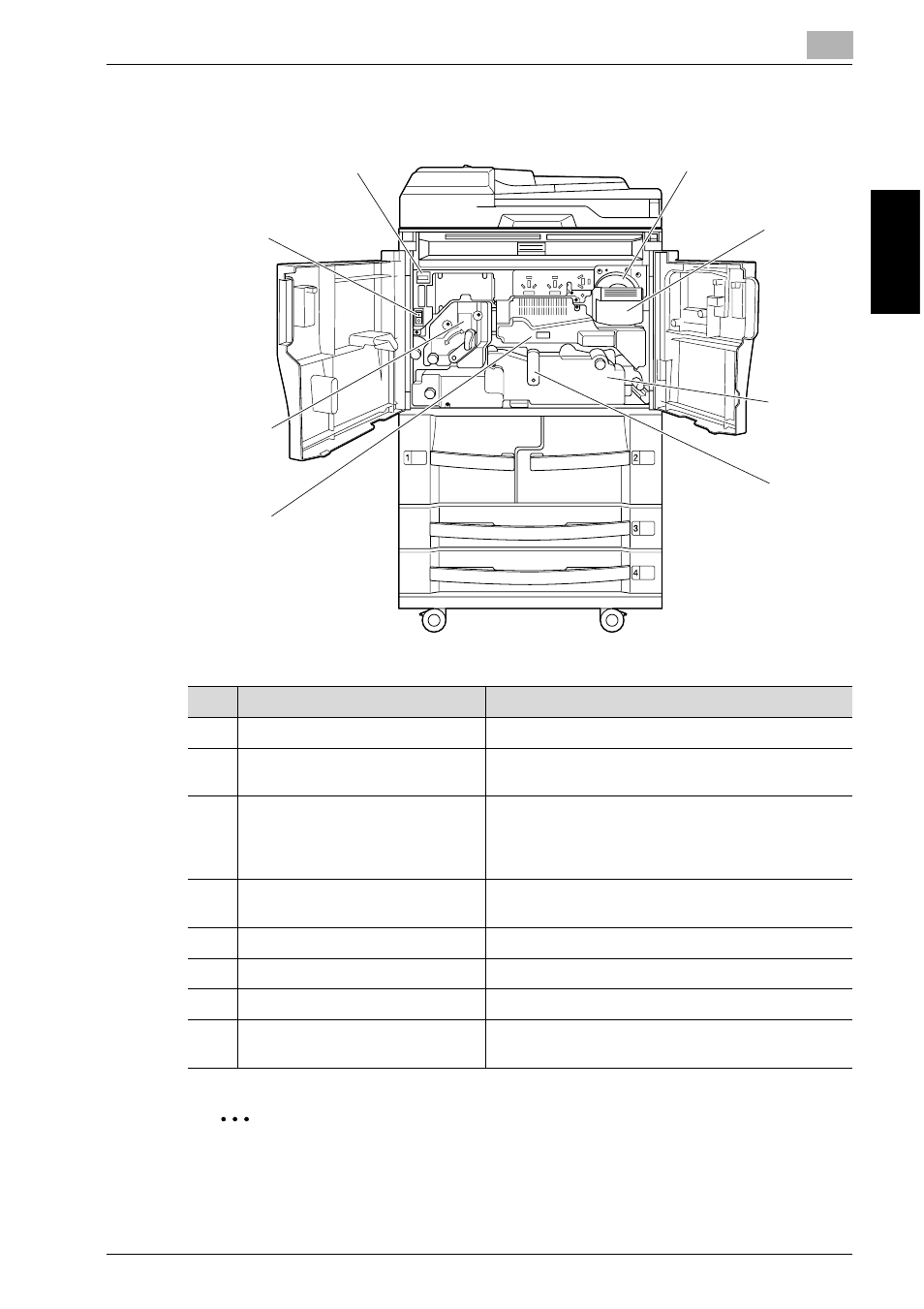

Inside of Machine
2
Reminder
Parts in the fusing unit are extremely hot. Touching any part in this unit
may result in burns.
1
2
3
4
5
6
7
8
No. Part Name Description
1 Toner cartridge When the toner is empty, replace the cartridge.
2 Toner-cartridge-securing lever Pull toward you to remove the toner unit when re-
placing the toner cartridge.
3 ADU unit Pull out when clearing paper misfeeds. For details
on the levers and buttons of the ADU unit, refer to
the screens that appear when a paper misfeed oc-
curs.
4 Lever M4 Lowered to the left in order to pull out the ADU unit
when clearing paper misfeeds
5 Drum unit Forms the copy image
6 Fusing unit Fuses the image that was formed onto the paper
7 Main power switch Used to turn the machine on and off
8 Total counter Shows the total number of pages that have been
printed
