Kodak A-41069 User Manual
Page 105
8 - 14
A-41069 January 1993

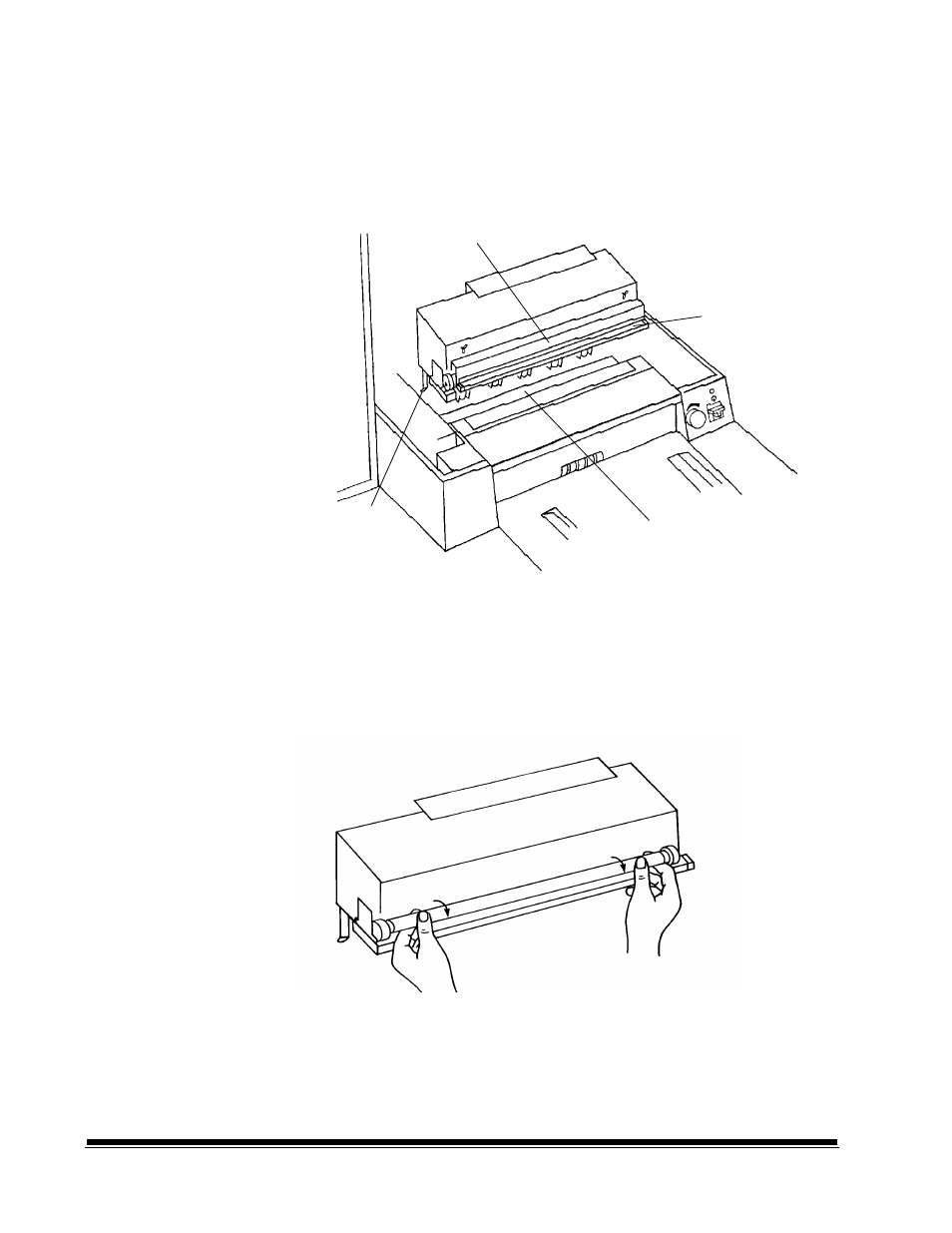

Mounting
Bracket
Lens
DSA Window
Transport Window
5.
Lift the DSA assembly straight up from the transport area.
6.
Rotate the DSA assembly away from you. The mounting
brackets should be pointing straight down toward the transport
area.
7.
Set the DSA assembly down, using the mounting brackets for
support.
8.
Grasp the quarter-turn screws and turn each counterclockwise one-
quarter turn to loosen the DSA window panel.
9.
Remove the DSA window panel by pulling it gently toward you.
The DSA lamp will be exposed.
CAUTION: Allow the DSA lamp to cool before attempting to remove
it for replacement.
10. Grasp the lamp by both ends.
11. Rotate the lamp toward you until it becomes loose. Gently remove
the lamp from its housing.
