Dip switch settings – SATO CL 408e User Manual
Page 24
Page 2-4
Section 2. Configuration
SATO CL408e/CL412e Service Manual
PN 9001078
Rev. B
Protocol Code Selection (DSW2-7):
Selects the command code set used.
DSW2
ON
OFF
1
2
3
4
5
6
7
8
DSW2
ON
OFF
1
2
3
4
5
6
7
8
DSW2-7
SETTING
Off
Standard
On
Non-Std.

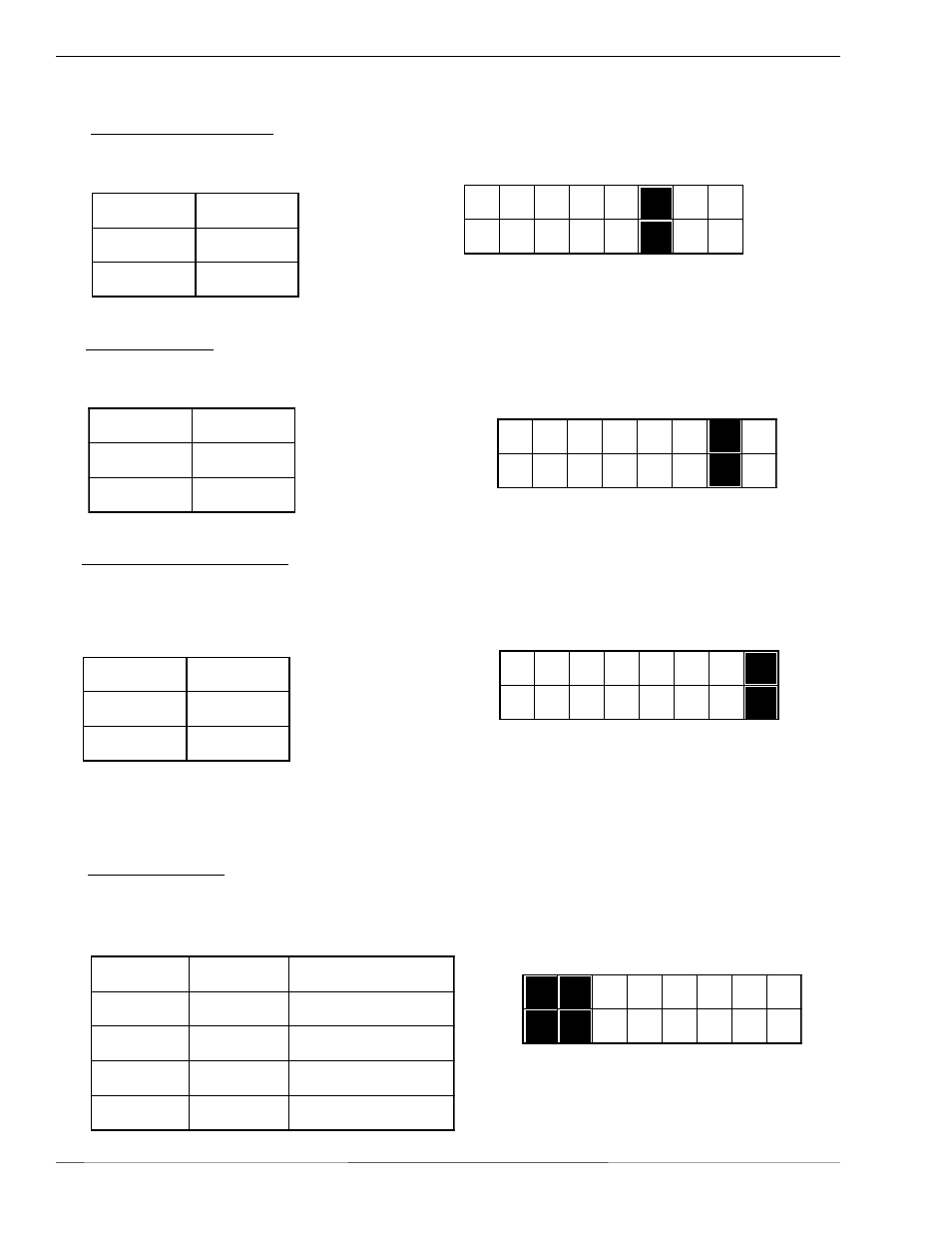

Dip Switch Settings
DSW2-6
SETTING
Off
Disabled
On
Enabled
Firmware Download (DSW2-6):
Places the printer in the Firmware Download mode
for downloading new firmware into flash ROM.
DSW2
ON
OFF
1
2
3
4
5
6
7
8
M8400 Emulation Mode (DSW2-8):
For emulating earlier series software
commands. Should be used only if problems are encountered when using existing
software. This switch will also affect the setttings selected by DSW1-7 and DSW1-8.
DSW3
ON
OFF
1
2
3
4
5
6
7
8
DSW3-1
DSW3-2
SETTING
Off
Off
Batch/Continuous
Off
On
Tear Off
On
Off
Cutter
On
On
Dispenser
Mode Selection (DSW3-1 and DSW3-2):
Selects the operating mode of the printer.
Batch/Continuous disables the label taken (dispense option) sensor.
DSW2-8
SETTING
Off
Disabled
On
Enabled
