16. To activate the Dispenser Senser, DSW3 pin 1 & 2 must be in the
upward position. Fig. 9-29 See chart on front panel of printer.
17. Close the Print Head, reinstall the LH Cover, close the RH Cover
and the Front Door. Figs. 9-10, 9-11, & 9-28
18. Power up the printer and verify that all gears, belts, and drive
assemblies are functional. If necessary, adjust the sensitivity level
of the Label Taken Sensor and the position of the dispensing plate.
19. Adjustment of the Label Taken Sensor level is made by turning the
potentiometer located next to the connector slot until the green
LED illuminates with no blockage to the sensor. The green LED
should not be lit when the Label material is blocking it. For
complete adjustment procedures refer to D-6 in the Operators
Manual. Fig. 9-29
20. Run several labels and adjust the pitch offset so that the label
material backfeeds correctly. Return the printer to service.
Fig. 9-28

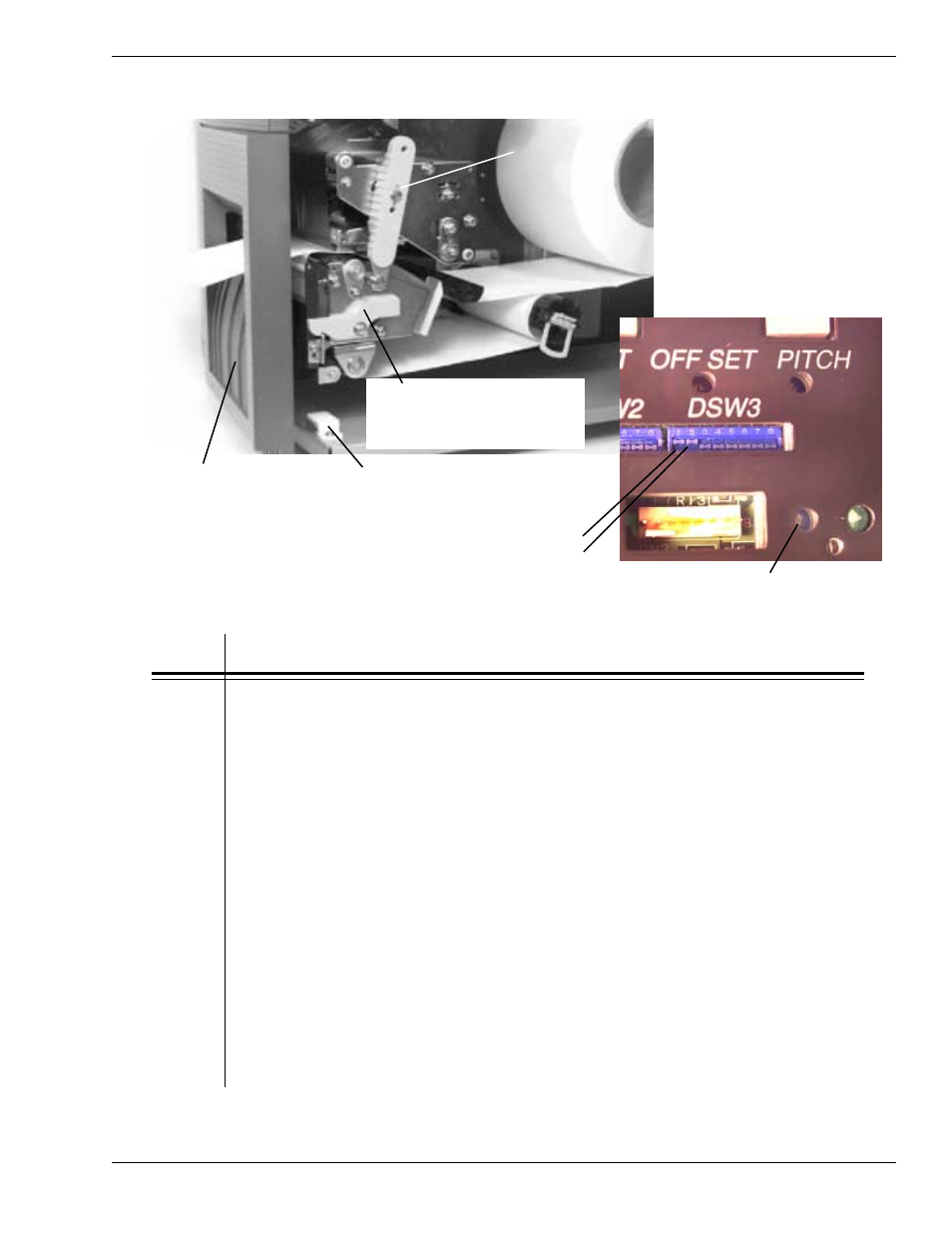

Fig. 9-29
TURN POTENTIOMETER TO
ADJUST LABEL TAKEN
SENSOR
MAGNETIC DOOR
LATCH
PRINT
HEAD
LATCH
FRONT DOOR
LABEL DISPENSER
LATCH
PINS 1 & 2 MUST BE IN UP
POSITION
Label Dispenser Installation
