Section 9. Optional Accessories
SATO CL408e/CL412e Service Manual PN 9001078
Rev. B
PCMCIA Memory Expansion Installation
DISCONNECT CABLE
DISCONNECT CABLES
DISCONNECT
CABLES
REMOVE (2) SCREWS
REMOVE SCREW

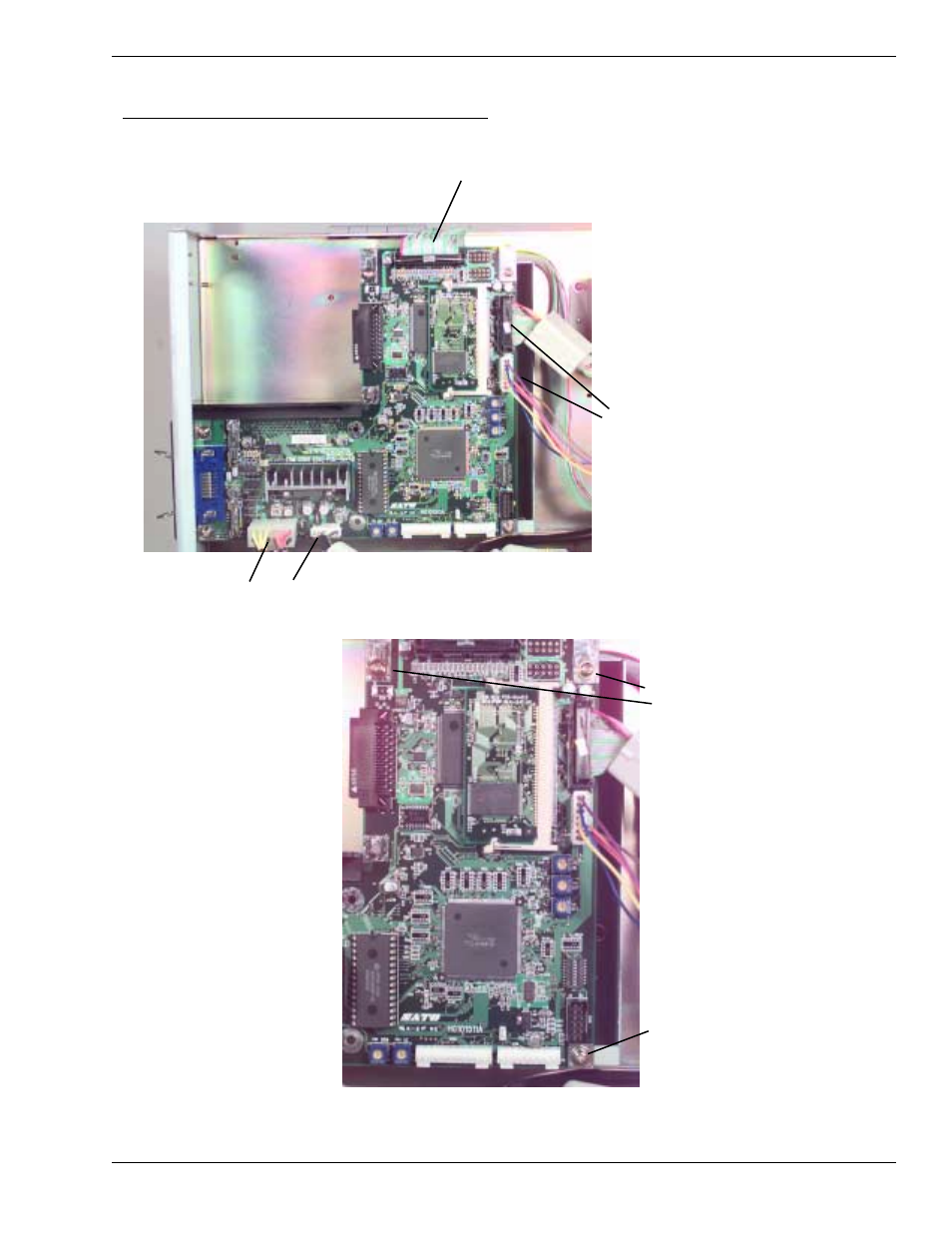

Removing the Main PCB Board
Fig. 9-33
Fig. 9-34
