– 33 –
SM830078
8. INSTALLATION INSTRUCTIONS
1)
Tubing Length
• Refrigerant tubing between the indoor and
outdoor units should be kept as short as
possible.
• Select and decide the installation location
so that the length of the refrigerant tubing
will be within the limits given in Table 1.

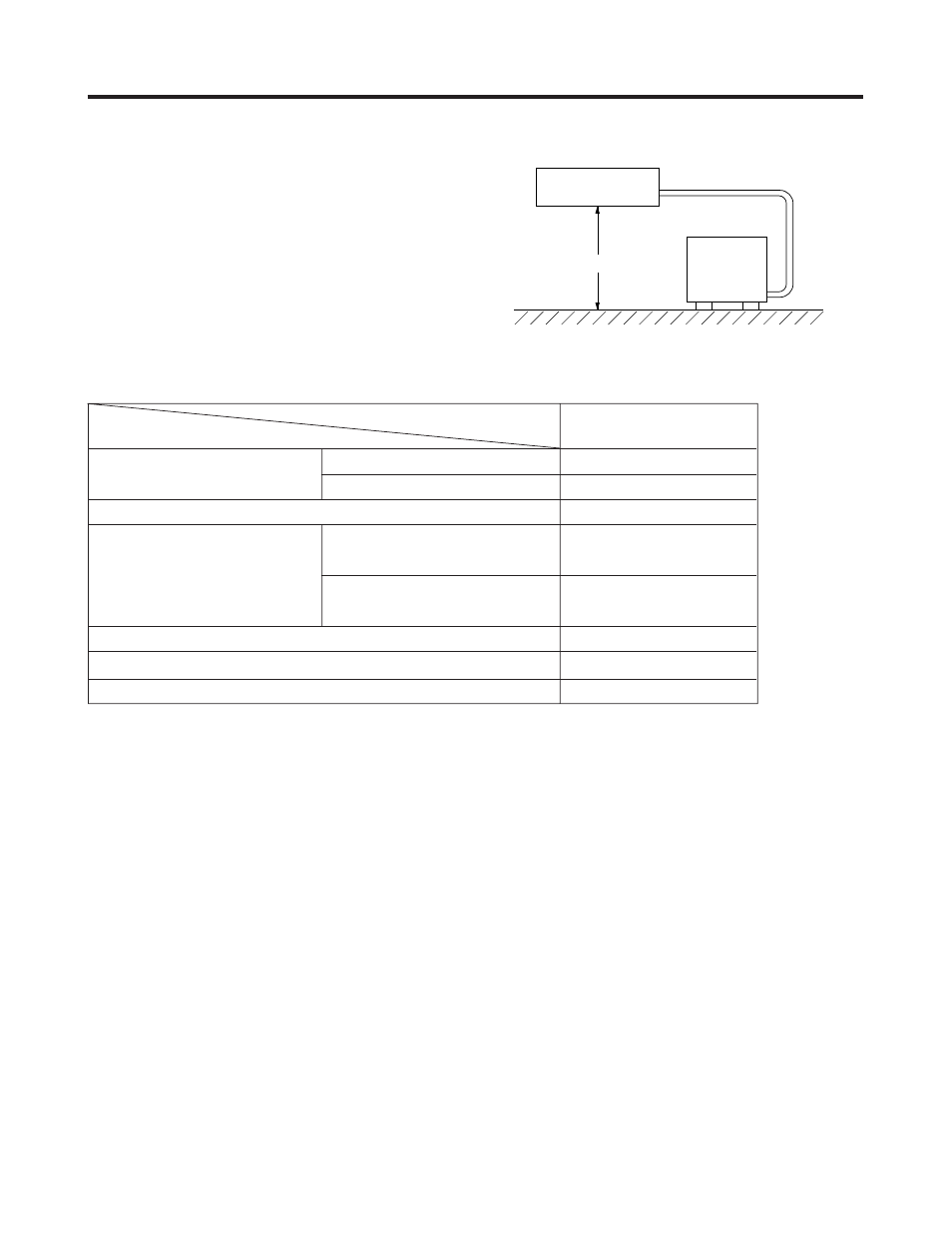

Fig. 1
Tubing length (L)
INDOOR
UNIT
OUTDOOR
UNIT
Elevation difference (H)
0711_M_I
No additional charge of compressor oil is necessary.
*
1
If total tubing length becomes 50 to 165 ft., charge additional refrigerant (R22) by 0.86 oz./ft..
Model
C4232
Tubing Data
CL4232
Tubing size
Narrow tube
in. (mm)
3/8 (9.52)
outer dia.
Wide tube
in. (mm)
3/4 (19.05)
Limit of tubing length
(ft.)
165
Outdoor unit is higher
(ft.)
165
Limit of elevation difference
than indoor unit
between the 2 units
Outdoor unit is lower
(ft.)
100
than indoor unit
Max. allowable tubing length at shipement
(ft.)
50
Required additional refrigerant*
1
(oz./ft.)
0.86
Refrigerant charged at shipment
(lbs.)
9.7
Table 1
